Product Details
| Place of Origin | Shandong, China | Brand Name | BEACON | |
| Model Number | PT201 | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description
the newest products PT201 diesel pump calibration machine from shandong manufacturing
>>>INTRODUCTION

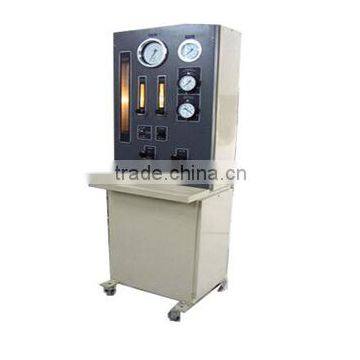

PT201 Diesel Fuel Pump Test Bench is special equipment used to provide test and calibration for fuel pump.
It matches the driving system of fuel injection pump stand, and has strong integrative function.
For instance: Fit for: PT(G), PT(G)VS, PT(G)MVS, PT(G)SVS, PT(G)AFC, PT(G)AFC-VS, PT(H)-VS fuel pumps
etc and damping ASA valve.
>>> FUNCTION
Gear pump pressure and vacuum test |
1. Idle speed test |
2. Weight assistant pressure test |
3. Pressure and flow test in every check point |
4. AFC test |
5. Oil stopping test |
6. Route test of throttle |
7. Oil return test of throttle |
8. ASA valve test |
>>>MAIN TECHNICAL PARAMETERS
1. Number of test pump | 1 SET |
2. Center height | 125 mm |
3. Oil test pressure | ≤1.6 MPa |
4. Air test pressure | ≤ 1 MPa |
5. Gear pump test pressure | ≤ 2.5MPa |
6. Oil test demarcated flow | 50~320, 310~910 kg/h |
7. Oil test leak flow | 20-500 ml./min |
8. Air test flow | 40-400 ml./min |
9. Dimension of stand | 680×740×1860 (l×w×h) mm |
10. Weight of Stand | 350 kg |
11. Dimension of pump | 242×178×225 (l×w×h) mm |
12. Weight of pump | 12 kg |
>>>we also have other model number test bench for injector and pump ,plspoint the model name and then check details
| diesel fuel injection pump test bench | common rail injection pump test bench | tester and heui |
| 12PSB | CRS708c(can add EUI/EUP&Cambox) CRS709c(can add EUI/EUP&Cambox | CR1000 (200USD with piezo function) |
| BC3000 | BC-CR708(most competitive price) | CRS3 (can add piezo testing function ) |
| BC2001 | CRS200 | VP44 pump tester |
| BC2001PLC | CRS300(can add VP37 VP44 EUIEUP) | VP37 pump tester |
| BCS619 | eps200 | EUI EUP&Cambox |
| BCS815 | BCS200 | V3V4V5 pump tester |
| BCS300 | s60h | |
| BCS205 cr injector test bench | PQ1000(only 1300USD per set) | Heui hydraulic test bench |
>>>Our products on show :
Q: How can i get this product?
A: We can do the delivery by sea shipping to your nearest port,or to your specific address.
Also we can do the air transport to directly your nearest air port or your specific address.
Q:How can i pay,what kind of payment will be accept?
A:We support TT payment,West Union,also paypal and Trade assurance.
Q:Do you have common rail tools or spare parts?
A:Yes,for sure,we have the common rail tools and spare parts also with best quality and most competitive price.
