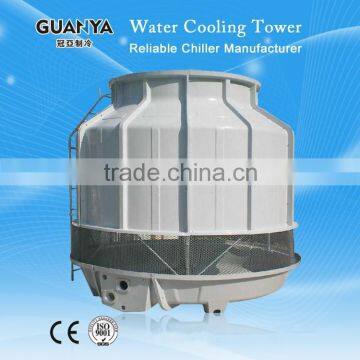

Guanya FRP round Water Cooling Tower CT-30T
US$ 300 - 30,000
/ Set
1 Set(Min. Order)
- Shekou
- T/T
You May Like
Product Details
| Condition | New | Cooling Type | Counter Flow | |
| Material | FRP | Place of Origin | Guangdong, China | |
| Brand Name | Guanya | Model Number | CT-30T | |
| Voltage | 380V | Certification | CE, ROHS, UL, CE and ISO9001:2000 | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
Guanya FRP Water Cooling Tower CT-30T
Materials
| Material of Water Cooling Tower | ||||
| Item/Model | CT8-80T | CT100-150T | CT175-500T | CT600-1000T |
| Type of Drive | Direct | Direct | Vee-Belt | Vee-Belt/Gear Box |
| Exhaust Fan | ABS | PVC/FRP/Alum Alloy | FRP/Alum/Alum Alloy | FRP/Alum Alloy |
| Moter | T.E.F.C380V/50HZ/3PH | |||
| Moter Support | Galvanized Steel | |||
| Casing | FRP | |||
| Water Basin | FRP | |||
| Sprinkler | ABS/PVC/Alum Alloy | |||
| Eliminator | FRP | |||
| Air Inlet Support | PVC&PVC Mesh&G.L.Steel | |||
| Tower Support | Galvanized Steel | |||
| Piping | PVC Pipe | |||
| In-fill Support | PVC&G.L.Steel | |||
| In-fill | P.V.C.Film | |||
| Ladder | Galvanized | |||
Parameters
| Parameter/Model | CT | 8T | 10T | 15T | 20T | 25T | 30T | 40T | 50T | 60T |
| water flow | m3/h | 6.23 | 7.81 | 11.7 | 15.62 | 19.51 | 23.4 | 31.21 | 39.24 | 46.8 |
| flowing rate | m3/h | 4200 | 5100 | 8400 | 9600 | 12000 | 13800 | 16800 | 19800 | 25200 |
| Motor power | kw | 0.18 | 0.18 | 0.37 | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
| net weight | kg | 42 | 46 | 54 | 67 | 98 | 120 | 130 | 190 | 240 |
| running weight | kg | 180 | 190 | 290 | 300 | 500 | 530 | 550 | 975 | 1250 |
| tower height | TH | 1695 | 1845 | 1770 | 1925 | 2070 | 2080 | 2150 | 2180 | 2405 |
| casing | CH | 950 | 1100 | 1025 | 1180 | 1265 | 1275 | 1325 | 1335 | 1350 |
| air inlet | AH | 175 | 175 | 1100 | 175 | 225 | 225 | 225 | 225 | 325 |
| basin | WH | 400 | 400 | 175 | 400 | 400 | 400 | 400 | 420 | 460 |
| water inlet&outlet | OH/IH | 115/200 | 115/200 | 400 | 135/205 | 140/205 | 180/260 | 180/260 | 150/235 | 165/260 |
| fan diameter | ED | 550 | 635 | 115/200 | 770 | 770 | 770 | 930 | 930 | 1180 |
| basin diameter | WD | 940 | 940 | 635 | 1180 | 1415 | 1665 | 1665 | 1895 | 2110 |
| inlet&outlet water throat | WO/WI | 40/40 | 40/40 | 50/50 | 50/50 | 80/80 | 80/80 | 80/80 | 80/80 | 100/100 |
| full water/water draining | OF/DR | 25/25 | 25/25 | 25/25 | 25/25 | 25/25 | 25/25 | 25/25 | 25/25 | 25/25 |
| flow valve/feed-water | FV/QS | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 | 20/20 |
| foundation height | FH | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| foundation width | FS | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| center diameter | FD | 580 | 580 | 780 | 780 | 980 | 1200 | 1200 | 1370 | 1670 |
| screw specification | BC | M10 | M10 | M10 | M10 | M10 | M10 | M12 | M12 | M12 |
