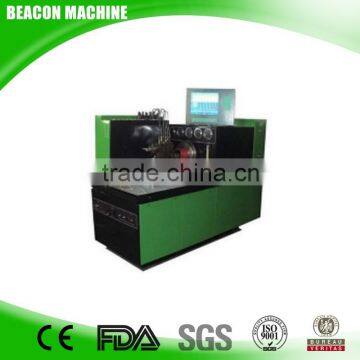

Taian beacon machine New product BCS815 test bench for diesel fuel injection pumps

Taian beacon machine New product BCS815 test bench for diesel fuel injection pumps

BCS815-- continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems.

the electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.It guarantees a high level of reproductivity of the measured valuse.

Main function
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)
12. Checking the travel of stroke(on request)
13.oil lubricate (on request)
14.   BCS815 electronic fuel delivery measuring system test bench Foced cooler (on request)

Technical characteristic

Also WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:

1.TRAVEL OF TOOTH BAR

2.OIL LUBRICATE

3.FORCED COLLING

4.Checking of the advance angle of advance device

Photo of product details

Check the accessories for our BCS815:

Other function machine you need just click model name in this list! :

Also we can do the air transport to directly your nearest air port or your specific address.

Q:How can i pay,what kind of payment will be accept?

A:We support TT payment,West Union,also paypal and Trade assurance.

Q:Do you have common rail tools or spare parts?

A:Yes,for sure,we have the commin rail tools and spare parts also with best quality and most competitive price.
