10kV Outdoor Containerized Package Substation for American Type

FOB Price

US$ 500 - 100,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Juneng Electric or customized
Model Number	SZ11-630~31500/35	Usage	Power
Phase	Three	Coil Structure	Toroidal
Coil Number	Other, two windings

American distribution transformer substation

10kV outdoor containerized package substation for American type

About shouguang Juneng Electric

Technical Parameter

10kV outdoor containerized package substation for American type

UNIT		SWITCHGEAR	CIRCUIT BREAKER	ITEM		PARAMETER
high voltage unit	40.5kv	KYN10-40.5 XGN17-40.5 KYN61-40.5	ZN85-40.5 ZN12-40.5 LN2-35(Z) VEP-40.5 FP-40.5 etc	rated voltage	kV	40.5
				rated current	A	1250-2500
				rated short circuit switching current	kA	20-31.5
				rated short circuit making current (peak)	kA	50-80
		loading switch NAL36 NALF36		rated current	A	630
		loading switch NAL36 NALF36		rated short time withstand current	kA/S	25/2
low voltage unit	12kV	KYN28-12 XGN2-12 KZN1-12 KYN1-12 PIX	ZN28-12 VD4 VS1 VNG HVX etc	rated voltage	kV	12
				rated current	A	630-3150
				rated short circuit breaking current (effective value)	kA	16-50
				rated short-circuit making current (peak)	kA	40-125
		HXGN11-12(F) HXGNn26-12(F)	load switch FN16-12	rated current	A	630
		HXGN11-12(F) HXGNn26-12(F)	load switch FN16-12	rated short time withstand current	kA/S
	0.4KV	GGD GCK GCS	DW15 DW17 ME M DZ20 CM H S series	circuit breaker rated current	A	no more than 4000A
	0.4KV	GGD GCK GCS	DW15 DW17 ME M DZ20 CM H S series	making and breaking capacity 400V	kA	28-80
transformer unit		SC9 S9 SZ9 SZ11 S11 series transformer		rated voltage	kV	40.5
				rated capacity	kVA	400-20000
				ratio	kV/kV	35/10 35/6.3 35/0.4
cabinet	enclosure protection degree					IP54
cabinet	noise level				dB	no more than 55

WHAT WE CAN DO BETTER

10kV outdoor containerized package substation for American type

Quality Assurance--From the very beginning, JUNENG ensures quality in every step to achieve the best quality.
Experience Sharing--With over 10 years’ experience in power industry, JUNENG brings you an optimized solution.
Quick Response--In response to your needs without delay, JUNENG knows the value of your time

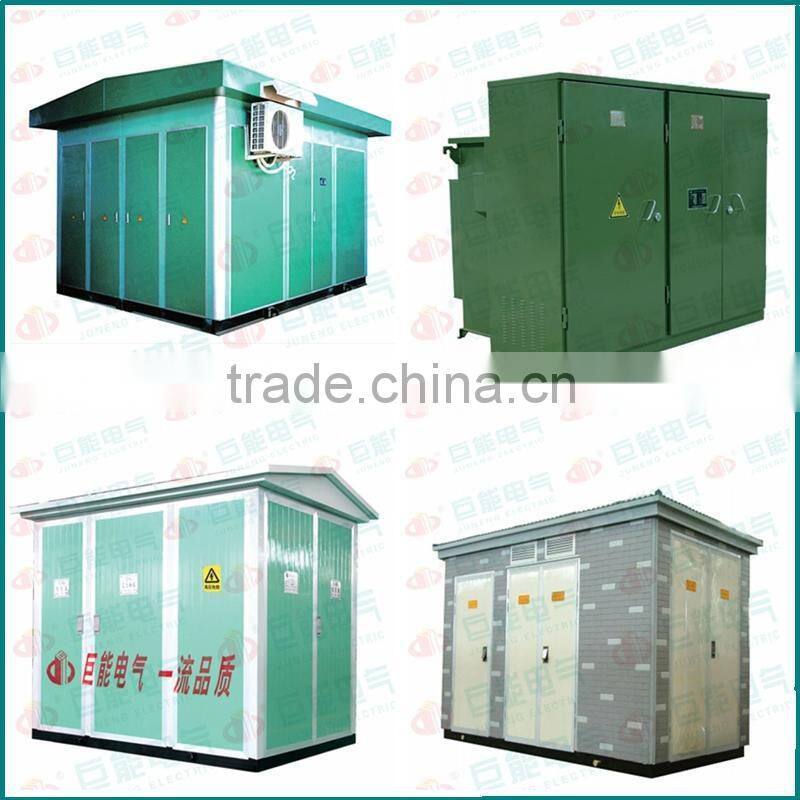

transformer substation Display

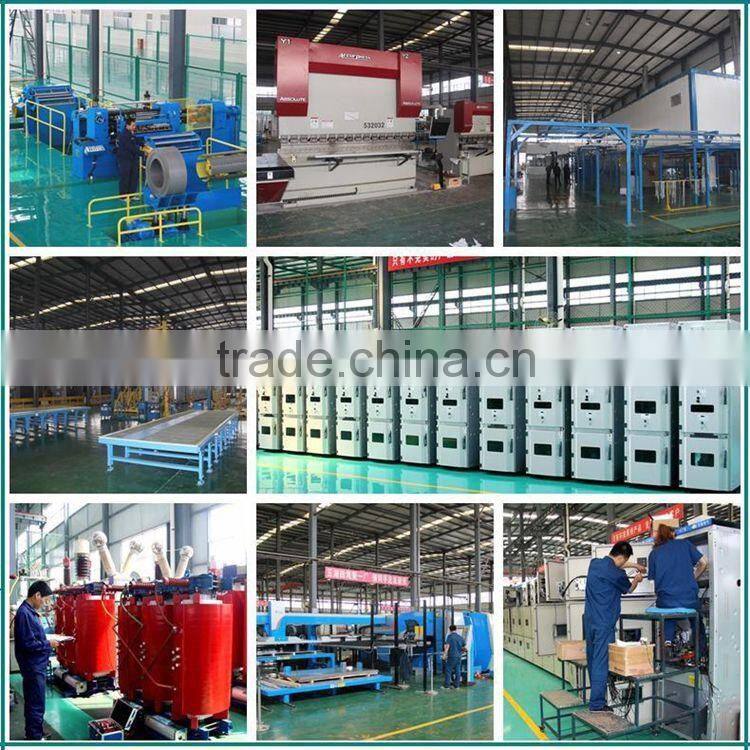

Workshop & Equipment

Certificate

10kV outdoor containerized package substation for American type

Any inquiry or question, pls contact me
