HV-800 Electric Armature Vertical Flexible Rotor Balancing Machine From China Supplier

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

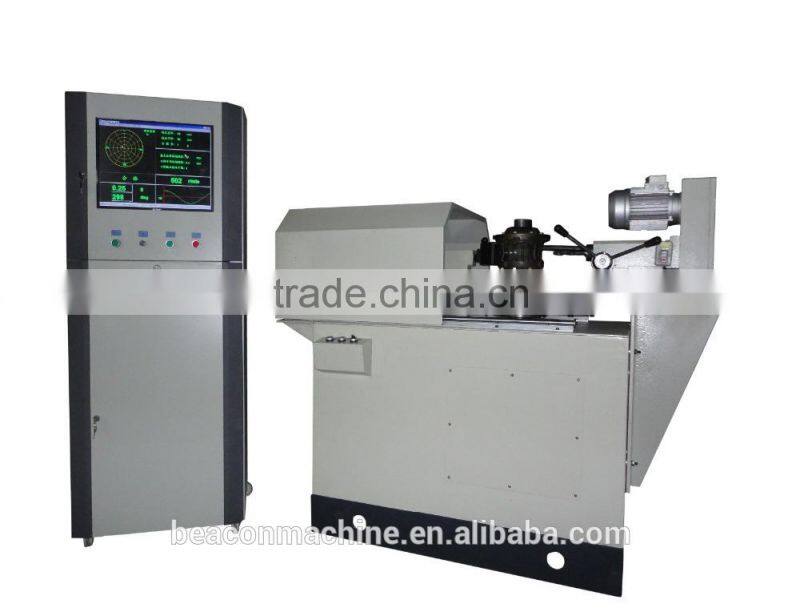

HV-800 electric armature vertical flexible rotor balancing machine from China supplier

the machine fits for balancing adjustment for parts with disc shape such as fan,pressure plate,flywheel, brake disc,

ring blower, impeller, arrester, saw blade, pulley. Adopt industrial computer (SCM) in measuring system.

Digital displays for rotate speed, measured value and phase, and unbalanced amount shows in “g” directly.

The system can correctly display the unbalance amount (“g”) of workpiece and its phase and also can display its memory

after you input various parameters through the keyboard according to the geometric dimension of different kinds of workpiece.

Simple operation, straight display Adopt electromagnetic sensor in electromechanical transducer,. Feature in large output,

reliable performance and excellent stability.

Model	HV-5	HV-20	HV-50	HV-100	HV-200	HV-400	HV-800
Working piece quantity range:kg	0.1-5	0.5-20	3-50	5-100	10-200	30-400	30-800
Working piece diameter:mm	Φ500	Φ500	Φ500	Φ800	Φ800	Φ800	Φ1200
Balancing speed:r/min	250-1500	250-1500	250-1500	250-1500	250-1500	250-1500	250-1500
Min. achievable residual unbalance:gmm/kg	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Unbalance reduction rate%	≥90	≥90	≥90	≥90	≥90	≥90	≥90
Driver power:KW	0.37	1.1	1.5	4	4	5.5	7.5
speed adjustment mode:	Frequency	Frequency	Frequency	Frequency	Frequency	Frequency	Frequency

>>>the rotors
