Product Details
| Place of Origin | Guangdong, China | Brand Name | SST | |
| Model Number | SST-N3009 |
Product Description
coin operated turnstile bridget type

| 1. Descriptions: | ||
The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control. | ||
| 2. Technical Parameter: | ||
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating Temperature | -15°C-60°C |
| 3 | Access Width | ≤700mm |
| 4 | Passing Speed | 50 persons/min(IC Card) |
| 5 | Motor | 140W/24V |
| 6 | Motor Speed | 1600R/Min |
| 7 | Communication Distance | ≤1200M |
| 8 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 9 | Communication Connection | RS485 |
| 10 | Material | SUS304,thickness 1.5mm |
| 11 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
| 12 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional) |
| 13 | Applications | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area |
| 3.Functions & Features: | ||
| 1. Self-checking function. 2. Working types: 2.1,bi-direction card reading; 2.2.one direction card reading and another prohibited; 2.3,one direction card reading and another free pass. Working types can be set in the control board. 3. Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on. 4. Arm open&close time can be set by user in control boards 5. Manager can set pass time in control boards. 6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card. 7. Swing barrier is RS485 interface for long-distance control. 8. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately 9.Dry contact relay with 12 volt or 24 volt pulse 10. Direction display guide passenger go or stop. 11. Control software regulate authorized passengers numbers. 12. Stable running with low- noise. | ||
| 4.Solution | ||
Ticket system, fingerprint system, RFID card system, Palm recognition system,etc
| ||

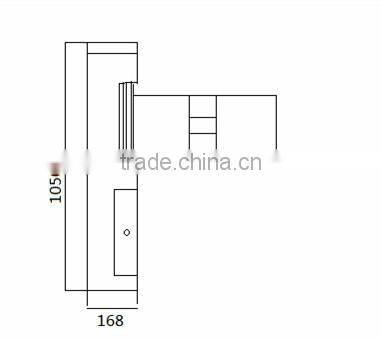

| 5.Dimension | ||
| ||

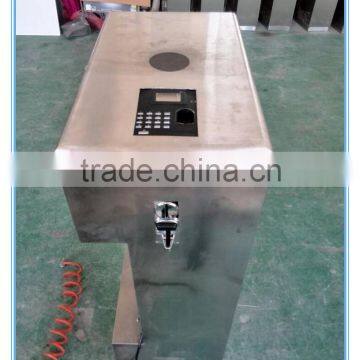

| 6.Control parts | ||
Mechanism | ||

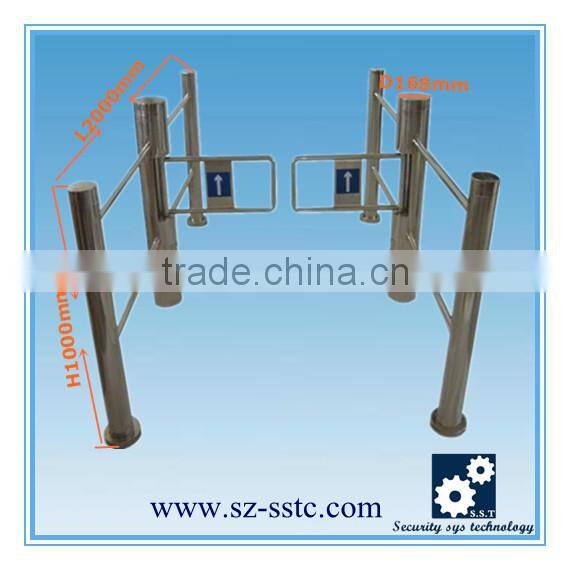

| 7.Product Show | ||
![]() ![]() | ||

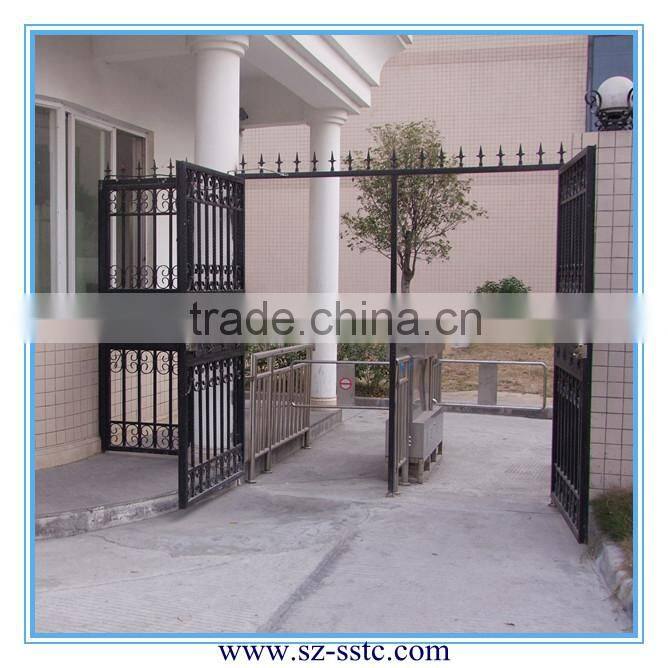

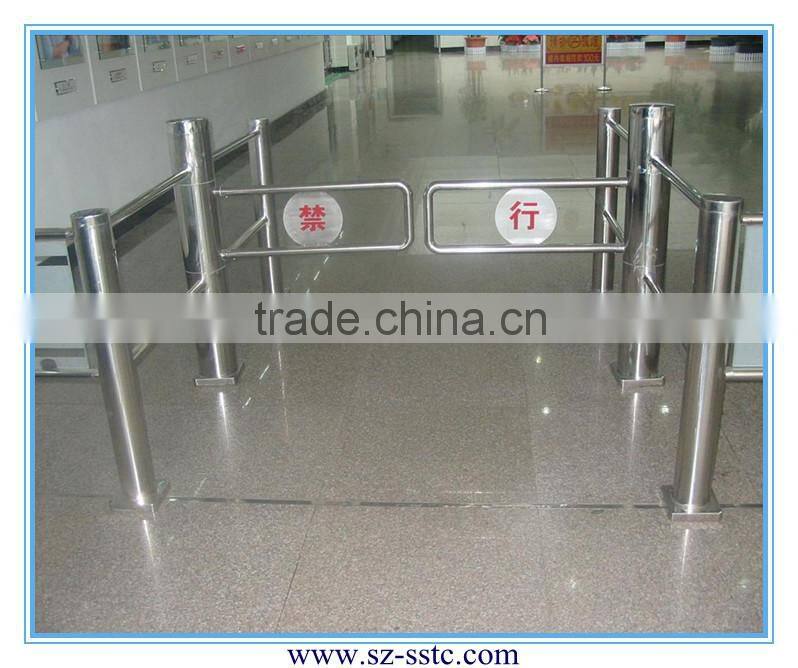

| 8.Application | ||
| ||
| 9.Standard package | ||
![]() | ||

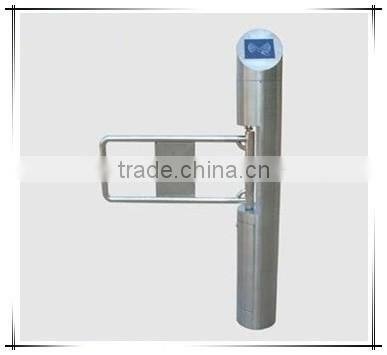

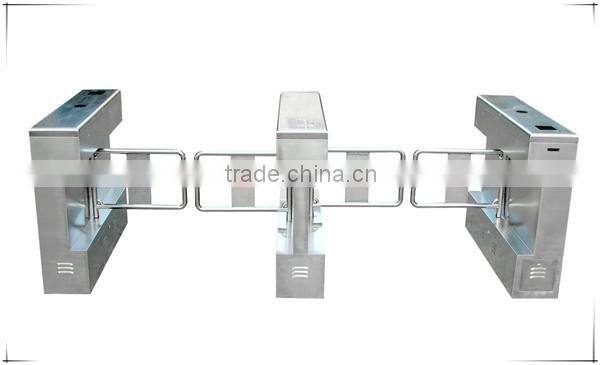

| 10.Products variety | ||
| ||
| 11.Our service | ||
| Customer services oriented. Reply your inquiries within 12 hours. Professional staffs answer any questions . Customized design ,OEM & ODM are available. Distributors or agents in special policies supports | ||
| 12.Our advantage | ||
| 1.One-stop procurement service is available. 2.Quickest delivery and best aftersales service. 3.Veteran technician solves all your problems. 4.Passionate and professional sales makes a wonderful team. 5.Competitive and reasonable price with high quality products and advanced technology. 6.Providing the most professional solution as soon as possible according to your requirements. | ||
