Home > Products > Swing turnstile > Swing Turnstile Gate/flap Turnstile

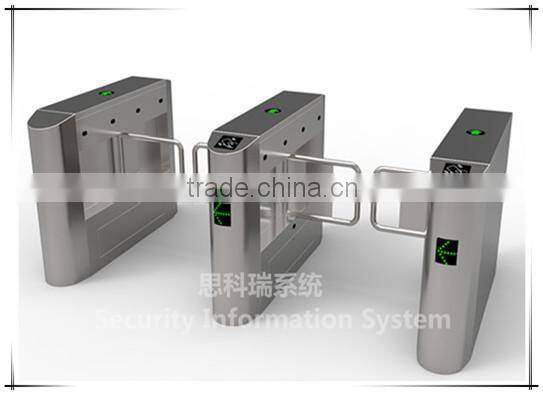

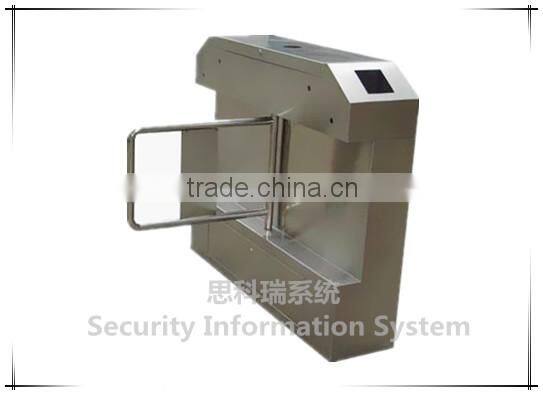

Swing Turnstile Gate/flap Turnstile
US$ 1,800 - 2,500
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
Access Gate,pedestrian Barrier Gate,entrance Barrier Turnstile
-
Security Swing Turnstile Barrier Gate,Pedestrian Control Turnstiles
-
Stainless Steel Turnstile,security Swing Gate Turnstile,supermarket Turnstile
-
Waist High ,half-height Turnstile,entrance Barrier Turnstile Gate
-
Luggage Access Full Automatic RFID Swing Turnstile Gate
-
RFID Access Control Automatic Swing Barrier Gate/turnstile Barrier Swing Gate
Product Details
| Place of Origin | Guangdong, China | Brand Name | SST | |
| Model Number | SST-N3002 |
Product Description
Specifications
Wide channel swing gate1,RFID ID/IC cards control
2,Customized optional
3,304 # stainless steel
4,Fingerprint available
swing turnstile gate/flap turnstile | ||
Product Description | ||
| Integrating mechanism, electronics and micro-processor advanced technologies.The swing barrier is a improvement of intelligent tripod turnstiles.Equip various card-reading machines with hi-performance security protection SW to realize real-time warning and clever LED counter display guide passers .it balance pedestrian intelligent control and management. Swing turnstile designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated .This system provides civilized,well-organized pass management and meantime its prohibit illegal persons entry&out . | ||
| 2. Technical Parameter: | ||
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating Temperature | -15°C-60°C |
| 3 | Access Width | ≤700mm |
| 4 | Passing Speed | 50 persons/min(IC Card) |
| 5 | Motor | 140W/24V |
| 6 | Motor Speed | 1600R/Min |
| 7 | Communication Distance | ≤1200M |
| 8 | Input Connection | 12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms |
| 9 | Communication Connection | RS485 |
| 10 | Material | SUS304,thickness 1.5mm |
| 11 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
| 12 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional) |
| 13 | Applications | Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area |
| 3.Functions & Features: | ||
| 1. Self-checking function. | ||
| 2. Working types: 2.1,bi-direction card reading; 2.2.one direction card reading and another prohibited; 2.3,one direction card reading and another free pass. Working types can be set in the control board. | ||
| 3. Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on. | ||
| 4. Arm open&close time can be set by user in control boards | ||
| 5. Manager can set pass time in control boards. | ||
| 6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card. | ||
| 7. Swing barrier is RS485 interface for long-distance control. | ||
| 8. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately . | ||
| 9.LED display passengers numbers. | ||
| 11. Control software regulate authorized passengers numbers. | ||
12. Stable running with low- noise.
| ||

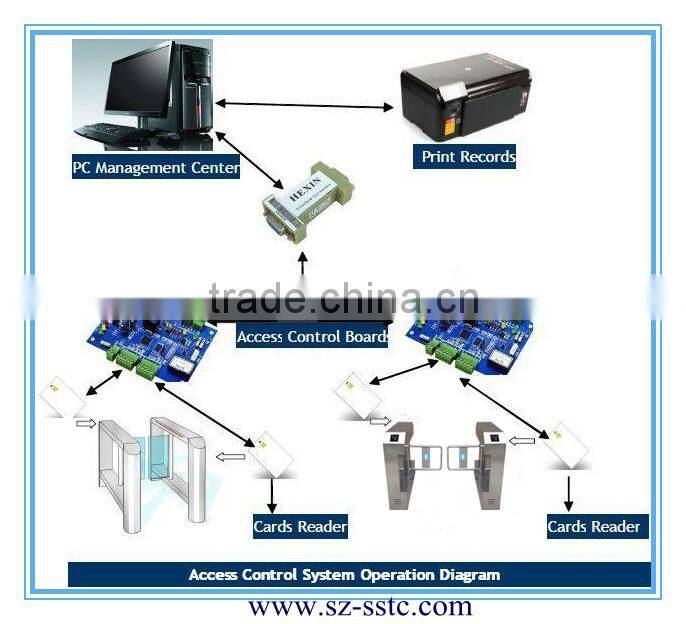

| 4.Solution | ||
| | ||

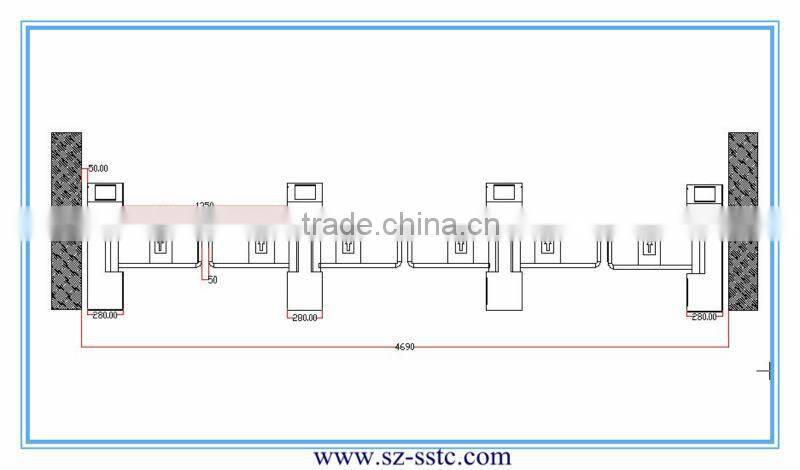

| 5.Dimension | ||
| | ||

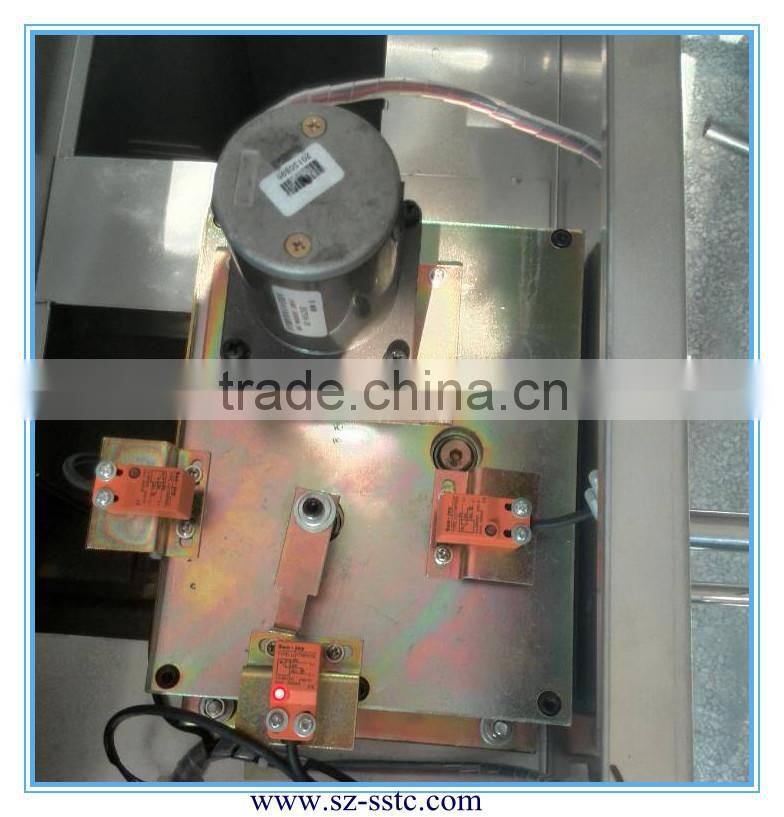

| 6.Details | ||
| ||

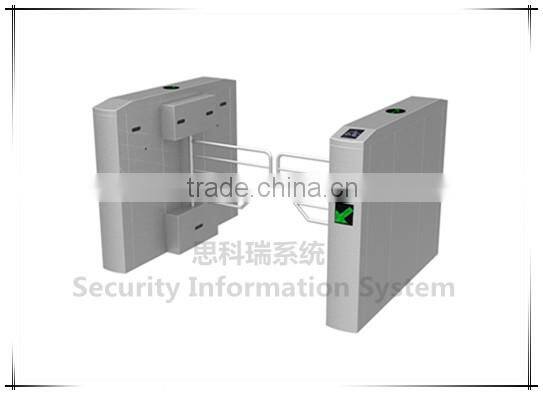

| 7.Product Show | ||
| ||

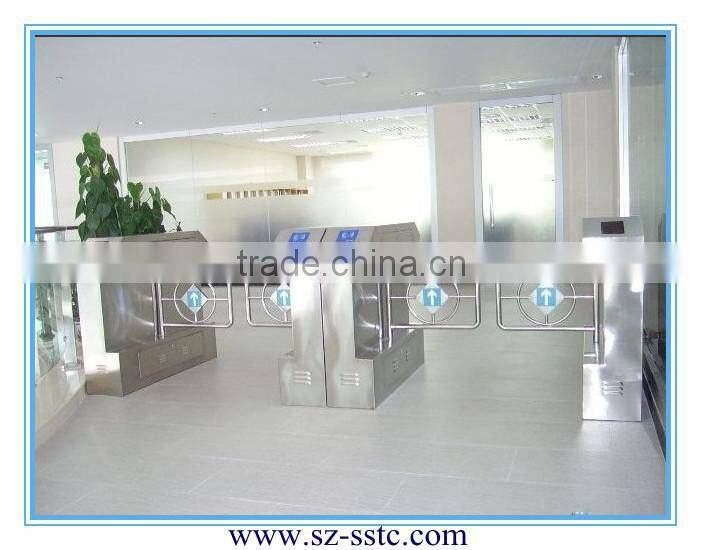

| 8.Application | ||
| ||

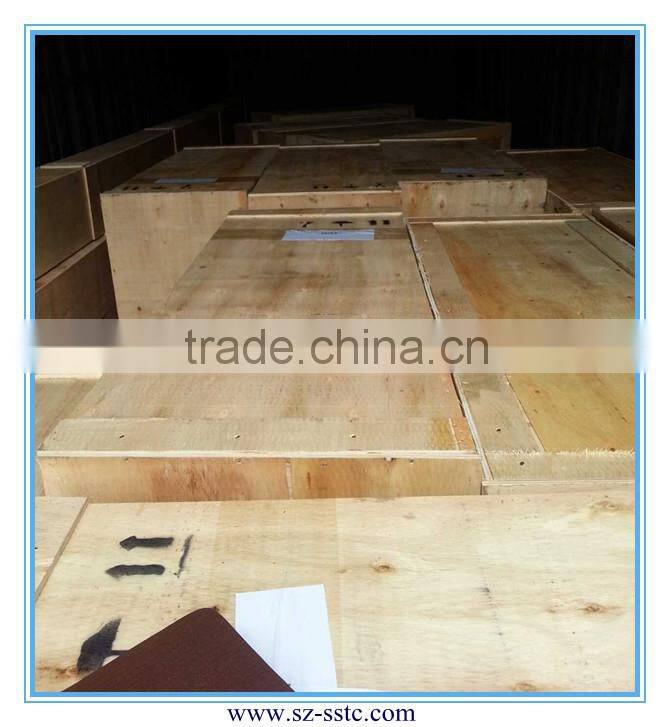

Packaging & Shipping | ||
| | ||

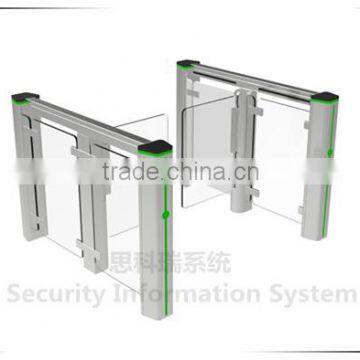

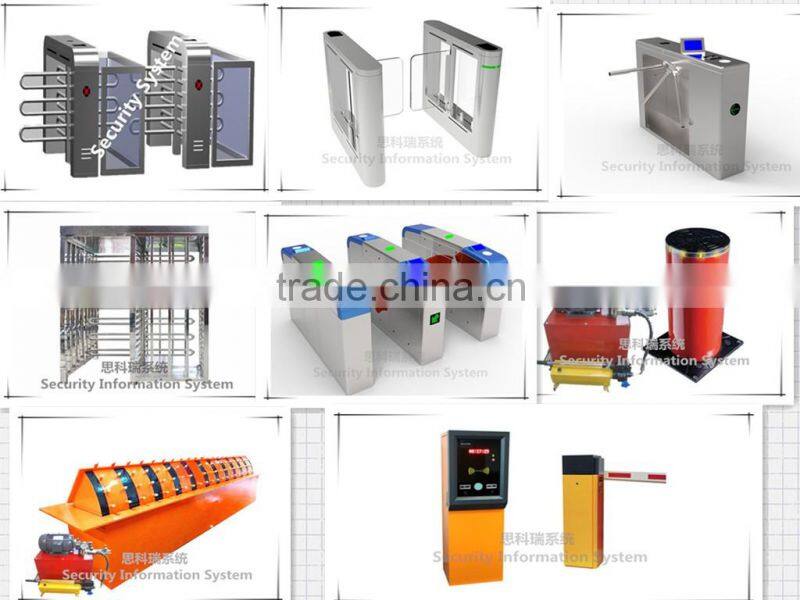

| 10.Products variety | ||
| | ||
Our Services | ||
| Any inquiries will be replied within 24hours. | ||
| Professional manufacturer. Welcome to visit our website: . | ||
| OEM/ODM available: | ||
| 1) Silk print logo on the products 2)Customized design and color are available. 3) Any idea on the products, we can help you to design and produce. | ||
| High quality, fashion designs,reasonable&competitive price and fast lead time. | ||
| After-sale service: | ||
| 1) All products will be strictly Quality Controlled in house before package. 2) All products will be well packed with wooden case before shipping. 3) All our products have 1 year warranty. The product will be free from maintenance during warranty period. 4) If there is any problem when installing the products,please feel free to contact me. We are here to support you. | ||
| Fast delivery | ||
| Sample order in stock,5-7days for bulk production | ||
| Payment | ||
| We can accept T/T,Western Union,Paypal&L/C | ||
| Shipping | ||
| As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder | ||
| 12.Our advantage | ||
| 1.One-stop procurement service is available. | ||
| 2.Quickest delivery and best aftersales service. | ||
| 3.Veteran technician solves all your problems. | ||
| 4.Passionate and professional sales makes a wonderful team. | ||
| 5.Competitive and reasonable price with high quality products and advanced technology. | ||
| 6.Providing the most professional solution as soon as possible according to your requirements. | ||

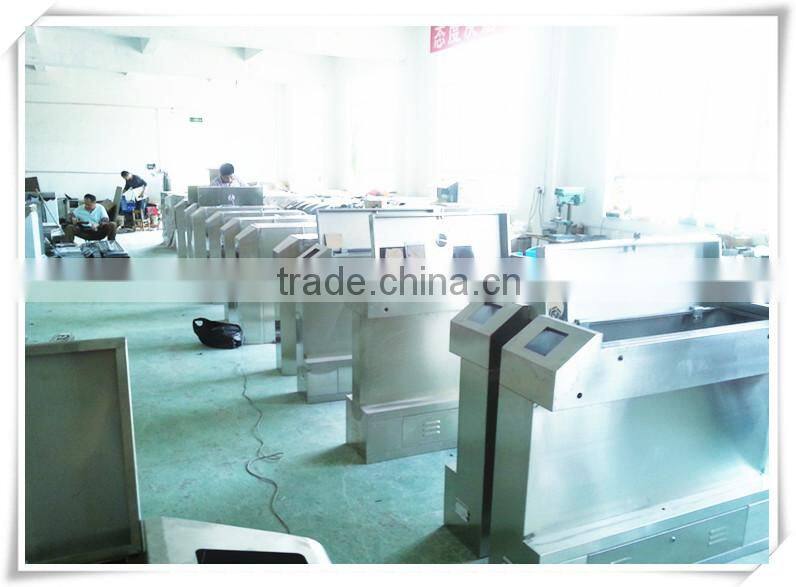

| 13. About us | ||
| ||
| 14.Contact Information | ||
| ||
