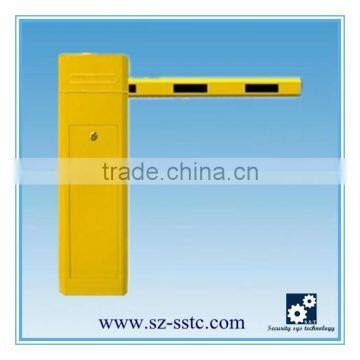

automatic barrier gate system for parking access control for toll gate

FOB Price

USD $350 - $600 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	SST
Model Number	SST-PF01

Product Description

automatic barrier gate system for parking access control for toll gate

1. Descriptions:
Intelligence parking Barrier gate with special motor main controller with multiple running mode optional . Use of advanced anti-aging waterproof ,durable ,do not fade. yellow ,green ,blue can be optional . reasonable structure design , used for management lane, divide into direct pole , fold the rod ,two fence , three fence .










2. Technical Parameter:
1.Dimension: 360W300L1030H(mm) 2.Motor power: 100W 3.Voltage:AC220V±10% 50Hz 4.Working temperature:--40°C~+75°C 5.Working environment: indoor, outdoor 6.Relative humidity: ≤95% coagulation free 7.Remote control distance: <=30m 8.Arm direction optional: leftward/ rightward 9.Noise:≤60dB 10.Motor speed: 30r/min 11.Operating principle: worm gear 12.MCBF: >=5,000,000times 13.Beam type: straight; fence; folding 14.Max beam length: <=6m 15.Beam liftinig time: 1.5s, 3s, 6s 16.Weight: 65KG; 80KG; 70KG








3.Features:

Anti-collision protects boom arm (optional) Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once boom arm was collided by a vehicle. Safety--- Anti-hit by pressure resistance bounce While moving down,arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable. Safety--- Anti-hit by Loop Detector (Optional) While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately. Safety--- Anti-hit by IR photocell (Optional) While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.










Safety--- Anti-hit by “Opening Priority” If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm. Closing Priority While arm moving up, the arm will immediately go down once a close command is given Automatically close after the given time Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open. Automatically Close by loop detector (Optional) If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
Automatically open by loop detector (Optional) If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered Manually control in case of no power Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually. Boom to open up fully or close down in case of power failure If power is suddenly off while boom closing, boom will automatically close down fully if the angle between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees. Anti-condensation in cold climate The barrier remains low power consumption even without closing and opening input, which will keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment Transparent plastic covers on Control Board A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.
4.Solution























5.Details




















6.Product Show






















7.Application




















8.Standard package




















9.Hot selling





















10.Our service

Customer services oriented. Reply your inquiries within 12 hours. Professional staffs answer any questions . Customized design ,OEM & ODM are available. Distributors or agents in special policies supports







11.Our advantage

1.One-stop procurement service is available. 2.Quickest delivery and best aftersales service. 3.Veteran technician solves all your problems. 4.Passionate and professional sales makes a wonderful team. 5.Competitive and reasonable price with high quality products and advanced technology. 6.Providing the most professional solution as soon as possible according to your requirements.
