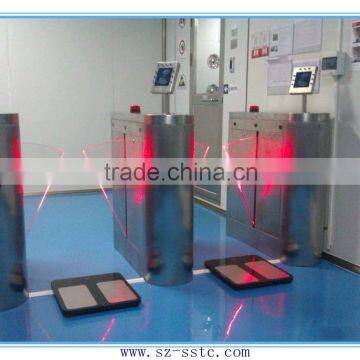

Electronic full automatic ESD testing flap turnstile

Flap barrier

      Flap barrier is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier. This product is well-processed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.

Technical specification:

Materials:      Housing:    304 stainless steel(standard) or Painted Steel

 Flap wing :   Acrylic glass(standard), or Resin, or PVC

Dimension:  L1200*W300*H1000(mm)

Flap wing:    285mm(length), 18mm(thickness)

Net weight:   75Kg/unit

Standard passage width: 550mm

Power supply:    220V, or 240V, or 110V    50Hz, or 60Hz

Motor:          DC24V

Communication interface: RS485(distance less than 1200metres)

Input interface:   Dry contact signal or 12V level signal or DC12V pulse signal

Driving current: > 10mA

Normal life-span: 3million times

Transit speed:     30-40 persons/min

Open/Close time:   1 second

Starting time after power is on:   3 secconds

Automatic reset time after fault:   10seconds

Working environment:    Indoor, outdoor( with a tent over)

Temperature:     -10°C— 50°C

Relative humidity:    ≤90%  no condensation

Function features:

1). With function of self-examine and alarm, it is convenient for maintenance and use

2). Being able to program running status by the small keyboard in the main board

3). Flap door will stop move when it is being blocked, which prevent pedestrians from being nipped and from hurt.

4). Light and sound alarm is generated when the illegal invasion and the tail followed.

5). Arms are automatically locked untill opening signal is received

6). Arms synchronization (adjustable)

7). Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.(default time is 10sec.)

8). Automatically open the gate when power off and automatically close when power on.

9). Several readers devices are attachable.(IC, ID access control, fingerprint access control, barcode ticket access control, facial identification access control, time attendance machine ect.)

10). One direction or bi-direction are optional.

11). It can be directly controlled and managed by remote control.

Extendable functions:

     Counter(optional)

     The length of the housing (length 1.2m, 1.4m, or 1.6m are optional )

     The material of flap arm (acrylic glass, resin, PVC etc. optional)

     The colour of the flap arm (red, blue, yellow, colourless, etc.)
