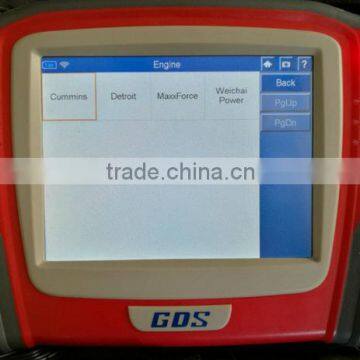

BEACON-G DS heavy truck diesel engine diagnostic scanner

BEACON-GDS  heavy truck diesel engine diagnostic scanner

The Heavy Duty scanner is a diagnostic scan tool. The design of the GDS HD was developed with the technician in mind. With its large size, true-color touch screen, and easy to use UI which technicians are now able to operate more intuitively and easily. Equipped with a built-in 400MHZ processor, much more superior compared with the commonly used ARM9 chip, ensuring the customer accurate and real-time diagnostic information.

The GDS HD comprehensively supports all protocols and all modes via OBD II. The built-in CANBUS chip supports all CANBUS agreements. The intuitive design and power of the GDS HD allows for accurate diagnosis and future software additions. The scanner is updated via Internet with regular updates throughout the year.

Using Bluetooth technology, a technician can wirelessly diagnose avoiding issues caused by tethered devices.

With its fast speed, accurate readings and convenient UI, the GDS HD is a first choice when searching for the perfect Heavy Duty scan tool for diagnostics.

Function of the Vehicle Connection Interface (VCI):

The VCI box connects between the scan tool and the vehicle diagnostic socket. This box has two connections, the DB15 connection and the OBD II connection. The main testing cable connects the scan tool with the DB15 adapter. The OBDII connection is for the OBD adapter. The scan tool with OBDII diagnostic cable connects directly with the vehicle diagnostic socket. The VCI diagnostic box features a Bluetooth connection. This allows the scan tool to connect wirelessly to the vehicle. The

“cable diagnostics” should be changed to “wireless diagnostics” mode on the menu, when

Bluetooth is used. The serial port is used in debugging the scan tool.

D . GDS HD technical specifications

Operating system:  Windows CE 5.0

Memory:  FLASH 64M. SD card

Rechargeable battery

External power supply:  DC12V

Printer:  mini high-speed thermal printer

Screen:  8 inch LCD touch screen

Relative humidity resistance:  <90%, temperature: -20-50℃

Wireless communication:  Bluetooth

E.  GDS HD Packing List

Packaging contains: Scan tool with SD card, touch screen stylus, connector cables, VCI, power supply adapter, 12VDC car battery cables, SD card adaptor, operator manual and carrying case.

Overall size: 305.2×215.2×85mm

Weight: 10KG
