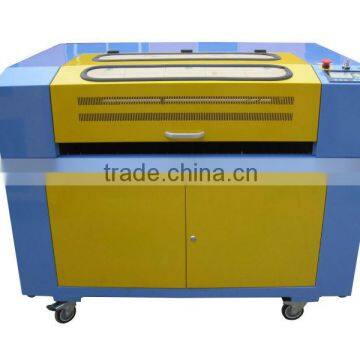

HOT 6040 Jinan Laser Machine for Engraving Organic Glass ,40W

Laser Type	CO2
Engraving Area	600*400mm		Engraving Speed	150mm/s
CNC or Not	Yes		Cooling Mode	Water Cooling
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood		Graphic Format Supported	AI, PLT, DXF, BMP
Place of Origin	Shandong, China		Brand Name	RUOFEN
Model Number	RFE6040		Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

6040 CO2 Laser Engraving Machine
1.Easy to handle
2.More humanized and scientific
3.CE
4.High precision

 6040 CO2 Laser Engraving Machine


Features:







High-precision Laser Engraving and Cutting Machine







1.  High Speed Laser Engraving Machine&Laser Cutting Machine adopts the new high-efficiency laser tube, the laser beam is more stable than the traditional type,and the life time of

the laser tube is very long.



 2.  more scientific design and high-strength steel-frame structure , which increase the fuselage strength more than 40% to prevent the machine from

distortion during long term work.
3. The humanized and modern appearance shows Ruofen’s consistent humanity idea, and it also makes

the operation and maintenance quite easy.
4. Advanced DSP control system, professional motion control chip, consecutive high speed curve cutting

and the shortest path selection function improve the working  efficiency a lot.



5.With red light positioning device accurately indicates the location of the processing of the laser head,

eliminate the trouble about manual positioning.





Applicable industry:





Advertisement ,handicraft industry,crystal accessories,paper cutting,wood and bamboo industry,printing industry,clothing and leather industry,garment,decorative,photo frame making, etc.





Applicable materils:





The series of machine is suitable to art gift, advertisement decoration, toy, electron element, cutting of template, paper product, stamp and other industries, such as bamboo, putamina of coconut, paper, Plexiglass, acrylic, marble, jade, crystal. Also can cut acrylic sheet, paper and so on.



Technical Parameter:







Model	RFE6040
Working area	600*400MM
Laser power	40w
Laser type	CO2 Sealed laser tube , 10.6μm
Engraving speed	0-60000mm/min
Cutting speed	0-40000mm/min
Highest scanning precision	4000DPI
Position accuracy	≤0.02mm
Reposition accuracy	≤0.01mm
Laser output control	0-100% set by software
Min. engraving size	Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm
Drive system	High-precision stepper motor
Cooling system	Water cooling
Auxiliary equipments	Air pump,water pump,exhaust fan and air exhaust pipe
Controlling software	DSP control system
Graphic format supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible software	CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Working environment	Temperature:0-45C,Humidity 5-95%(No condensate water)
Power supply	AC110V/220V+10%,50HZ/60HZ









Samples:









Other hot sale machines:











Our factory:











Main parts:











Working size and laser power can be customized as your requirement.



For more detailes, pls don’t hesitate to contact me!
