Double Planetary Mixer, Strong Dispersing Machine, Strong Mixing Machine
- Qingdao
- T/T
You May Like
-
Double Planetary Mixer, Double Planetary Power Mixing Machine, Strong Dispersing Machine
-
Double Planetary Power Mixer, High Efficient Mixer
-
Double Planetary Power Mixer With Dispersing Function, for Lithium Battery Slurry Mixing
-
Vacuum Silicone Sealant Double Planetary Powerful Mixer,Adhesive Mixer
-
Dry Powder Horizontal Ribbon Mixer / Horizontal Mixing Machine
-
Vacuum Silicone Sealant Double Planetary Powerful Mixer,Adhesive Mixer
Product Details
| Condition | New | Mixer Type | Homogenizer | |
| Product Type | Paint | Application | Liquid with Suspended Solids | |
| Additional Capabilities | Other, strong dispersing | Place of Origin | Shandong, China | |
| Brand Name | HT | Model Number | HT-SXX1000 | |
| Max. Loading Capacity | 1000L | Voltage | 220V/380V | |
| Power(W) | 7.5KW | Dimension(L*W*H) | Custom Made | |
| Certification | CE ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

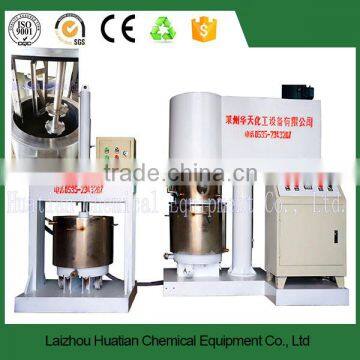

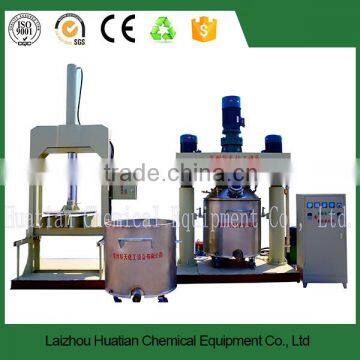

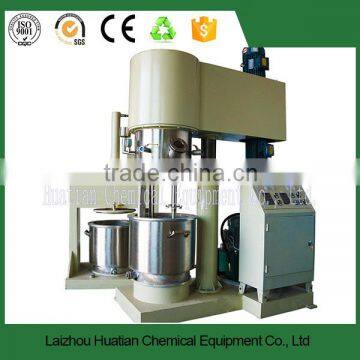

Double Planetary Power Mixer
Application:
Suitable for mixing and stirring of medium to high viscosity adhesive,organic silicon,printing ink,lithium battery slurry and such materials and can mix the materials in vacuum state.
Feature:
Triple axle with no blind angle design. The revolution and rotation in the meantime can make the materials tumble and flow up and down and horizontally at high speed,so that the mixing and stirring are sufficient with no sediment.
Precise mechanical seal and rubber soft seal can guarantee vacuum degree.
Precise temperature measurement system with error limit of less than 1 centigrade.
Frequency control motor can delicately measure the speed.
The inner wall is by fine lathed polishing which can insure the precision of equipment.
Capacity(L) | 5L | 20L | 30L | 60L | 100L | 200L | 300L | 500L | 1000L | |
Cylinder Size(mm) | Ø250×200 | Ø300×300 | Ø350×350 | Ø450×500 | Ø550×550 | Ø750×600 | Ø750×800 | Ø1000×850 | Ø1250×1000 | |
Revolution Motor(Kw) | 0.75 | 1.5 | 2.2 | 3 | 4 | 7.5 | 11 | 22 | 30 | |
Revolution Speed(r/min) Frequency Control |
0-60 |
0-60 |
0-60 |
0-60 |
0-60 |
0-40 |
0-40 |
0-35 |
0-35 | |
Autorotational Speed (r/min) Frequency Control |
0-70 |
0-70 |
0-70 |
0-70 |
0-70 |
0-60 |
0-60 |
0-45 |
0-45 | |
Disperser Motor(Kw) | 0.75 | 1.5 | 2.2 | 4 | 5.5 | 11 | 11 | 30 | 37 | |
Dispersing Speed (r/min) Frequency Control |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 |
0-1500 | |
Scraper Speed (Kw) Frequency Control |
0-60 |
0-60 |
0-60 |
0-60 |
0-60 |
0-40 |
0-40 |
0-35 |
0-35 | |
Vacuum Degree(Mpa) | ≤-0.094
| ≤-0.094 | ≤-0.094 | ≤-0.094 | ≤-0.094 | ≤-0.094 | ≤-0.094 | ≤-0.094 | ≤-0.094 | |
Lifting Stoke | 300 | 400 | 500 | 600 | 650 | 700 | 900 | 1000 | 1100 | |
Outer Size
| length MM | 700 | 960 | 1150 | 1900 | 2500 | 2500 | 2640 | 2670 | 2900 |
width MM | 400 | 450 | 530 | 1000 | 1000 | 1000 | 1080 | 1100 | 1400 | |
height MM | 1700 | 2330 | 2300 | 2000 | 2500 | 2500 | 2650 | 3600 | 3900 | |
