Generator Silented Performances
- Qingdao China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Yidaneng | |
| Model Number | YDNY-6.5 | Output Type | AC Three Phase | |
| Speed | 1500/1800rpm | Frequency | 50/60HZ | |
| Rated Power | 6.5kw/8kva | Rated Voltage | 230/400V | |
| Rated Current | 11.7A |
Product Description
Specifications
Generator silented performances1.Rated output:6.5kw
2.Soundproof type
3.Low fuel consumption
4.Water cooled system
Generator silented performances
*Parameters:
| Generator | Genset Model | YDNY-6.5 |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V | |
| Rated Power (KW/KVA) | 6.5/8 | |
| Standby Power (KW/KVA) | 7.15/9 | |
| Phase/Wire | 3Phase, 4Wire | |
| Overall Size (mm) | 1550×620×950 | |
| Weight (kg) | 660 | |
| Diesel Engine | Model | YD380D |
| Type | Water-cooled, in-line, 4-stroke, direct injection, wet cylinder liner, 1500rpm | |
| Rated Power (kw) | 10 | |
| Intake Type | Natural | |
| No. of Cylinder | 3.L | |
| Bore×Stroke (mm) | 80×90 | |
| Piston Speed (m/s) | 6 | |
| Compression Ratio | 16.5:1 | |
| Mechanical Governor Rated | ≤5% | |
| Electronical Governor Rated | ≤1% | |
| Noise Level (dBA) | ≤96 | |
| Exhaust Temperature (°C) | 475 | |
| Lube Oil Capacity (L) | 11 | |
| Rated Fuel Consumption (L/h) | 5 | |
| Displacement (L) | 3.2 | |
| Alternator | Model | 164A |
| Rated Power (KW/KVA) | 6.5/8.1 | |
| Power Efficiency | 96.60% | |
| Voltage Regulation | ≤±1.5 | |
| Excitation Type | Brushless | |
| Insulation Class | H |
**Models:
***Details:
*Engine:
1. Yangdong Engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
*Alternator:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

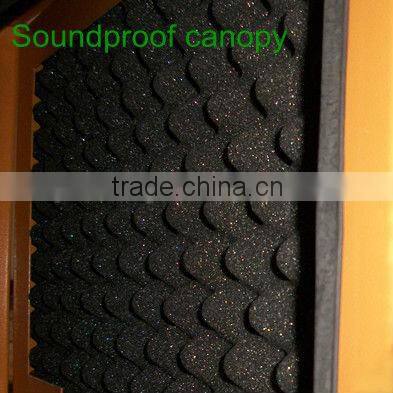

*Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA

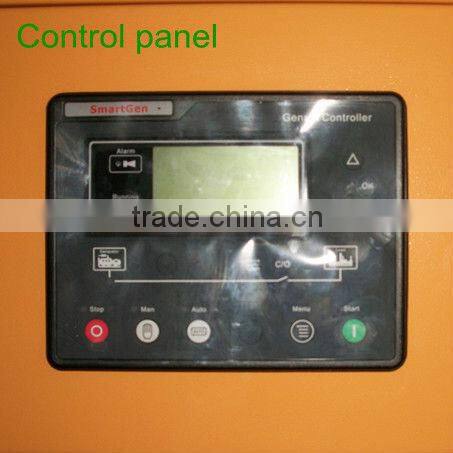

*Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
*Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
*PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
*Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory
5. ISO9001 and CE certification
Welcome to contact us!!!
