Chinese Small Yangdong Diesel Generator
- Qingdao China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | YIDANENG | |
| Model Number | YDNY-8.8 | Output Type | AC Three Phase | |
| Speed | 1500/1800rpm | Frequency | 50/60HZ | |
| Rated Power | 8.8kw | Rated Voltage | 230/400V | |
| Rated Current | 15.84A |
Product Description

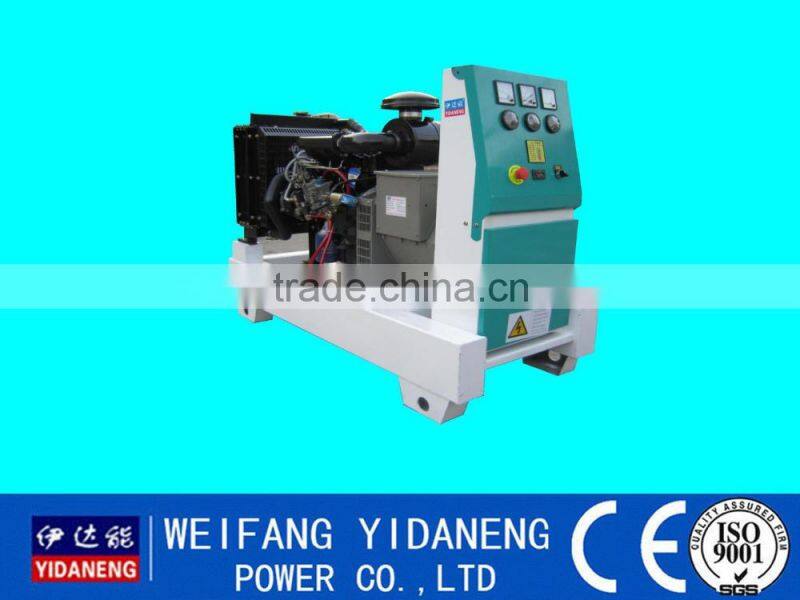

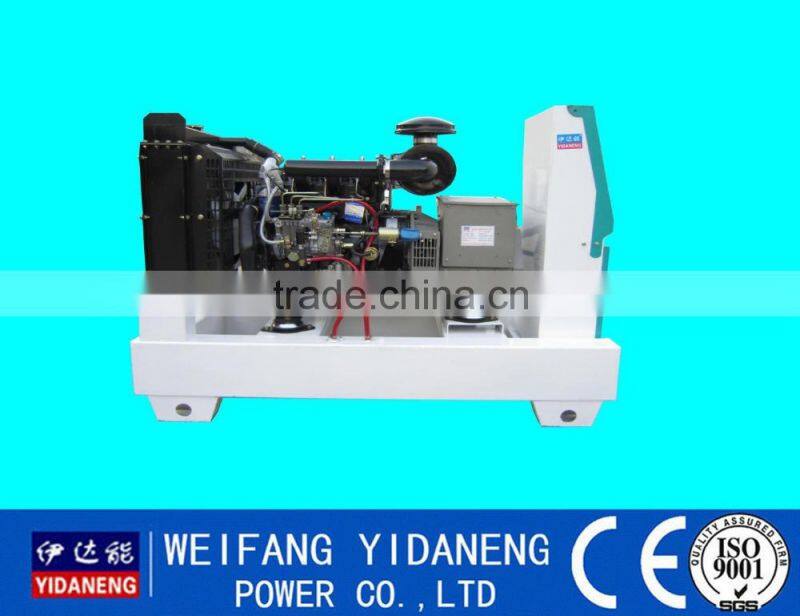

Chinese small 8.8kw yangdong diesel generator
These generator price select famous Chinese engine brands such as yangdong,Weifang, shang chai, jichai
which have wide range of power capacity, good starting performance and excellent dynamic performance.
| Generator | Genset Model | YDNY-8.8 |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V | |
| Rated Power (KW/KVA) | 8.8/11 | |
| Standby Power (KW/KVA) | 9.68/12.1 | |
| Phase/Wire | 3Ph, 4Wr | |
| Overall Size (mm) | 1550×620×950 | |
| Weight (kg) | 660 | |
| Diesel Engine | Model | YD385 |
| Type | Water-cooled, inline, 4-stroke, direct injection, wet cylinder liner, 1500rpm | |
| Rated Power (kw) | 10 | |
| Intake Type | Natural | |
| No. of Cylinder | 3.L | |
| Bore×Stroke (mm) | 80×90 | |
| Piston Speed (m/s) | 6 | |
| Compression Ratio | 16.5:1 | |
| Mechanical Governor Rated | ≤5% | |
| Electronical Governor Rated | ≤1% | |
| Noise Level (dBA) | ≤96 | |
| Exhaust Temperature (℃) | 475 | |
| Lube Oil Capacity (L) | 11 | |
| Rated Fuel Consumption (L/h) | 5 | |
| Displacement (L) | 3.2 | |
| Alternator | Model | 164B |
| Rated Power (KW/KVA) | 8.8/11 | |
| Power Efficiency | 96.60% | |
| Voltage Regulation | ≤±1.5 | |
| Excitation Type | Brushless | |
| Insulation Class | H | |

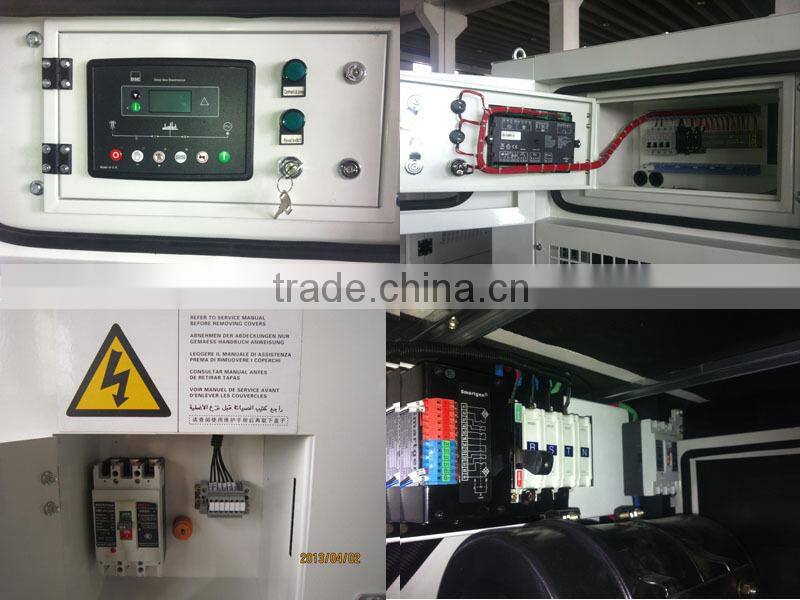

| Control System | Model | Smartgen6110 |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions | 197 mm x 152 mm x 47mm | |
| Panel Cutout | 186mm x 141mm | |
| Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |
| Weight | 0.56kg |
Company Information
Weifang Yidaneng Power Co., Ltd. is located in Weifang city, Shandong province, China.
Our factory covers an area of 36,000 square meters, owns 150 staff. The company consists
R&D department, Production department, Technology department, Quality inspection department,
Sales department, and After-sales department. As a 15 years experienced manufacturer of all kinds
generator sets, we mainly supply the below products:
1. Diesel gensets (Open, Silent & Trailer type)
2. Natural gas gensets (Open, Silent & optioanla CHP)
3. Biogas gensets (Open, Silent & optioanla CHP)
.
1. What kind of gas can be the fuel of your genset?
--Natural gas (CNG, LNG) or Biogas (Methane gas).
2. What' the MOQ?
--1 set.
3. What kind of package do you use in delivery?

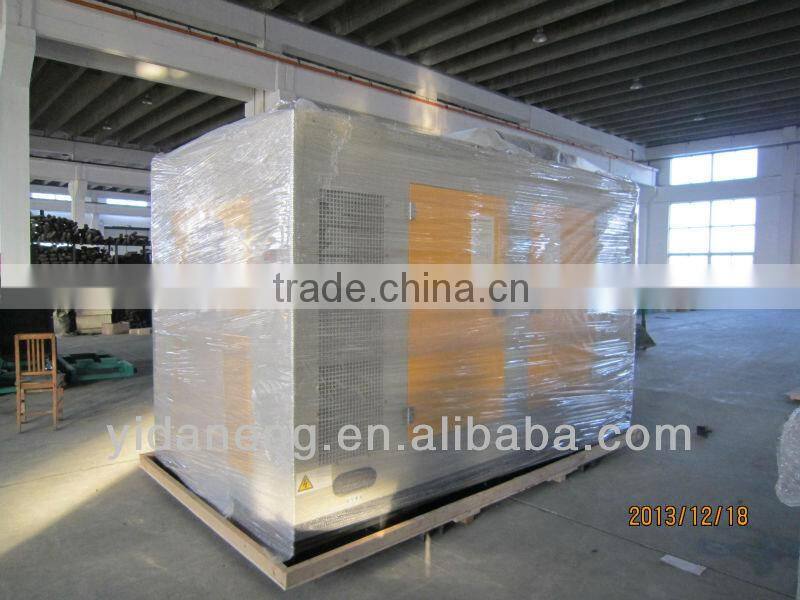

--Less than whole container cargo, plywood case; whole container cargo, naked packing.
4. What's the warranty period?
--1 year or 1500 running hours, whichever comes first.
5. What kind of certificate can you offer?
--ISO, CE
6. Can we customize the genset?
--Yes, we can customize the color and style as your demands.
If you have any other question, please feel free to contact us!
