Machine(PE Recycling Machine)
- huangpu port
- Money Gram
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | KaiXin | |
| Model Number | HXSJ140/140-R |
Product Description
Specifications
Machine(PE recycling machine)1.Plastic type :HDPE,LDPE;
2.Out put :220-280kg/h;
3.CHINAPLAS2012 April 18-21 ,Shanghai
Machine(PE recycling machine)
Usage :

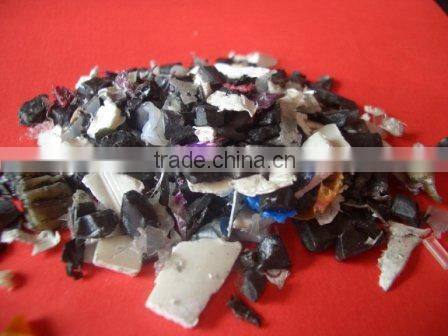

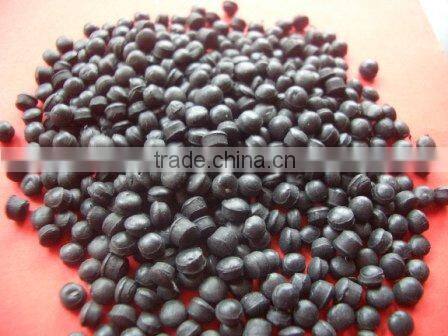

1.This raw materials like waste films/hard pieces of HDPE and LDPE are extruded through the extruder, and then are cooled through water and cut hotly into granules, featuring in fine quality
2.The machine can be equipped with a forced feeder,double hydralic screen changer and automatic temperature controller.
3.The granules are cooled by water.
| Item | HXSJ140/140-R |
Main extruder | Screw dia | Ø140mm |
| Screw Length | 3600mm |
| Screw L/D | 25:1 |
| No of exhauxing hole | Double |
| Material for screw | 38CrMoAlA, Nitriding treatment |
| Material for barrel | 40Cr ,Nitriding treatment |
| Gear box | 55# verticalgear box. |
| Main Motor | 75kw-4pole |
| Motor control means | Triangle reduction start control |
| Heating zone | 9zone |
| Heating power | 58kw |
| Heating means | Stainless steel and quartz heater |
| Cooling means | Copper tube with circular water |
| Mode of mesh changing | Ø280*280mm double hydraulic mesh |
| Item | HXSJ140/140-R |
second extruder | Screw dia | Ø140mm |
| Screw Length | 1800mm |
| Screw L/D | 12:1 |
| No of exhauxing hole | Single |
| Material for screw | 45 steel |
| Material for barrel | 45 steel |
| Gear box | 45# vertical gear box |
| Main Motor | 30kw-4pole |
| Motor control means | Triangle reduction start control |
| Heating zone | 5zone |
| Heating power | 33kw |
| Heating means | Stainless steel and quartz heater |
| Cooling means | Copper tube with circular water |
| Mode of mesh changing | Ø280*280mm double hydraulic mesh |
peripherics | Cutter | Die face cutter |
| Dewater device | Vertical dewater device,driven power 4kw |
| Storage hopper | Without |
| Hydraulic drive system | Double valve hydraulic station, power 4kw. |
| Funnel | 800*800mm stand funnel |
Total power |
| 208kw |
Out put |
| 220-280kg/h |
.
