20kw Power Electric Biogas Generator Genset for Sale
- Qingdao China
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | YIDANENG | |
| Model Number | YDN-20GFZ | Output Type | AC Three Phase | |
| Speed | 1500/1800rpm | Frequency | 50/60HZ | |
| Rated Power | 20kw | Rated Voltage | 230/400V | |
| Rated Current | 36A |
Product Description
20kw power electric biogas generator genset for sale
1.Gas generator set chooses the domestic famous brand engine as the dynamic force.
2.These gas generator have wide range of power capacity, good starting performance and excellent dynamic performance.
3.With the importing of technology of Yangdong Company .The engine feature s in low fuel consumption rate, good dynamic performance, safety and reliable.
4.Yidaneng Gas generator set is widely used as major or back up power supply in fieldwork, high building, supermarket, factory, ore yard, oil field, high road, harbor countryside and so on.
| Generator | Genset Model | YDNGFZ-20 |
| Rated Frequency | 50HZ | |
| Power Factor | 0.8 | |
| Rated Voltage | 400/230V | |
| Rated Power (KW/KVA) | 20/25 | |
| Standby Power (KW/KVA) | 22/27.5 | |
| Rated current (A) | 36 | |
| Phase/Wire | 3Phase, 4Wire | |
| Overall Size (mm) | 1650×720×1250 | |
| Weight (kg) | 620 | |
| Gas Engine | Model | 4100Q |
| Type | Water-cooled, 4-stroke, wet cylinder liner | |
| Rated Power (kw) | 25 | |
| No.of Cylinder | 4 | |
| Bore×Stroke (mm) | 100×115 | |
| Gas Consumption (m3/kw.h) | 0.36 | |
| Oil Consumption (g/kw.h) | 2 | |
| Cooling Type | Closed water cooling | |
| Speed Governing Mode | ESC | |
| Starting Mode | Electric | |
| Alternator | Type | BCI184F |
| Prime Power (KW/KVA) | 20/25 | |
| Voltage Regulation | at most±1 | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
| Control System | Model | Smartgen6110 |
| Working Voltage | DC8.0V to DC35.0V, continuous | |
| Overall Dimensions | 197 mm x 152 mm x 47mm | |
| Panel Cutout | 186mm x 141mm | |
| Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |
| Weight | 0.56kg |

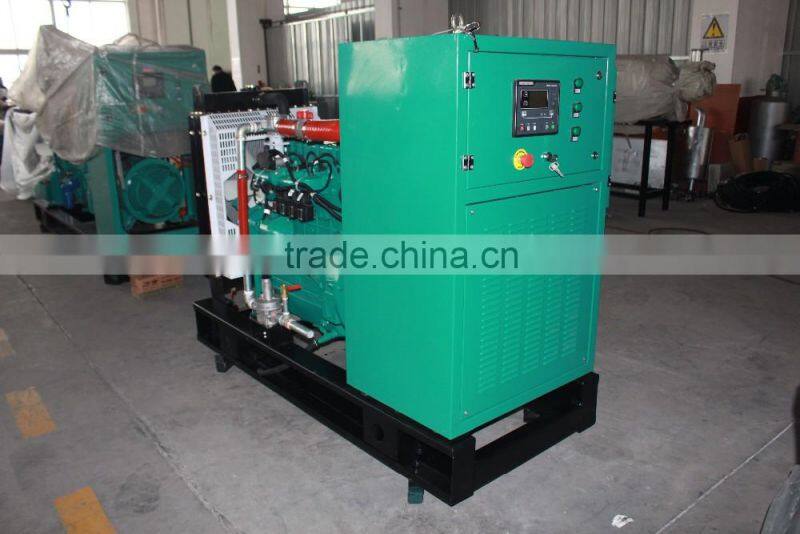

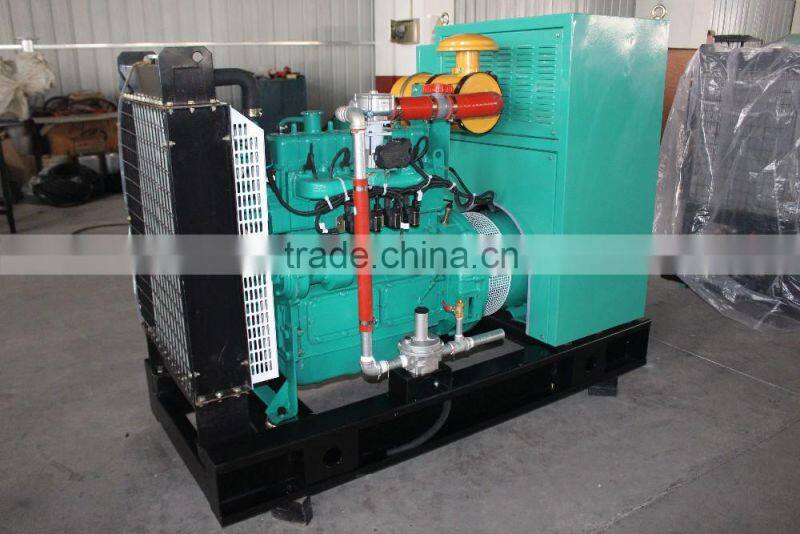

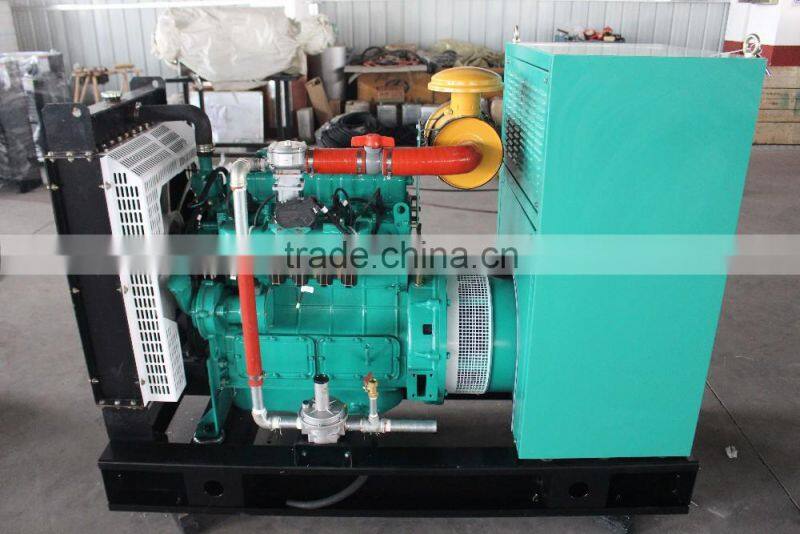

*Gas Generator Picture's Show :

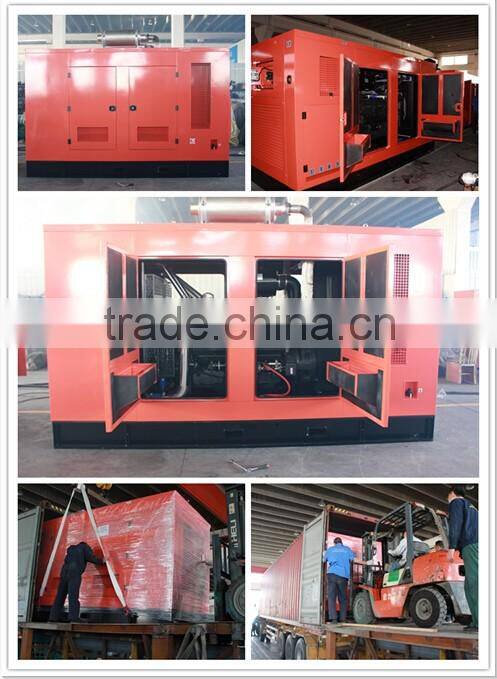

Silent type biogas generator:
Exihibition:

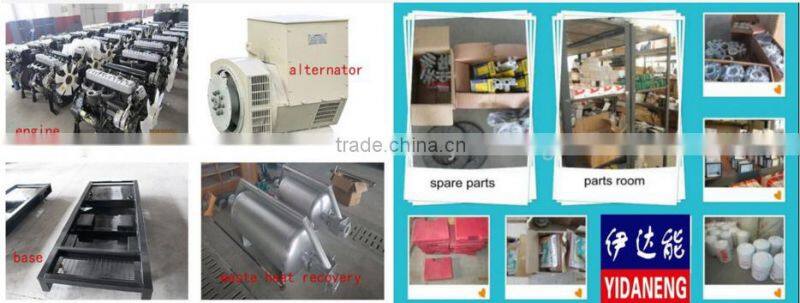

*Spare Part :
Supply Service:
| |
1. | Pre-Sale Services High performance products with installation, design or material and quick repairmant; Expert engineers offer technical consultation and assort guidance to our customers, such as questions and offer technical help during any time. |
2. | Quality of Service Professional technical adviser; Once we get inform from our customer, we send technical engineers to scene and help to installation and debug the generator, and cooperate with customer to check and accept the generator. The products with most appropriate design and optimization. |
3. | After-Sales Service Establish customer service files for end users, provides operations, technical guidance, tracking service, regular visits, life-long maintenance. Design machine room and the offer follow-up service and regular inspection. |
4. | Free quick-wear parts offer spare parts and technical help at any time. |
*Plywood Case &Stretch Film Packing
