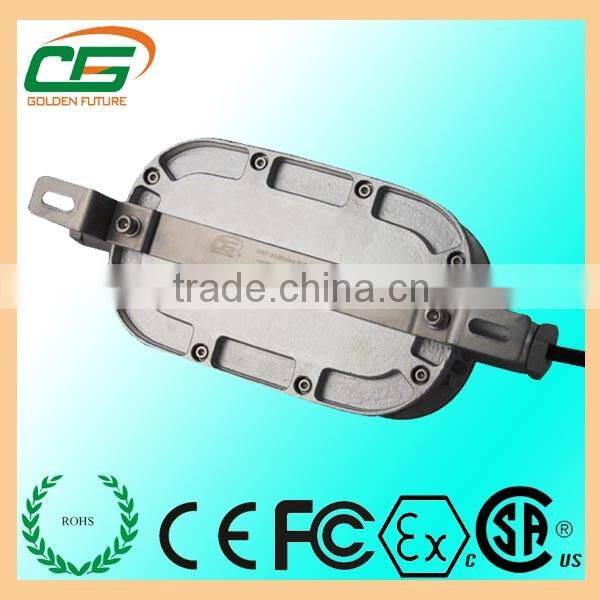

EXD I EXD IIB T5 Ip67 Explosion Proof Lighting

The DMT-30 LED explosion proof mining lamp is specially designed for underground tunnel illumination, industry plant and offshore oil plant, which has potential explosive atmospheres or combustible dust, sulfide or salt in the air.

Advantages:

Absolutely corrosion proof, explosion proof and waterproof, it is a very good item for coal mine, metal mine and offshore oil plant;

As higher final output efficiency, it can replace the 200 watt halogen lamp, and reducing energy by 7 times. ( the energy you saved for one year using is enough to buy the lamp)

Very long lifetime, and no maintenance cost.

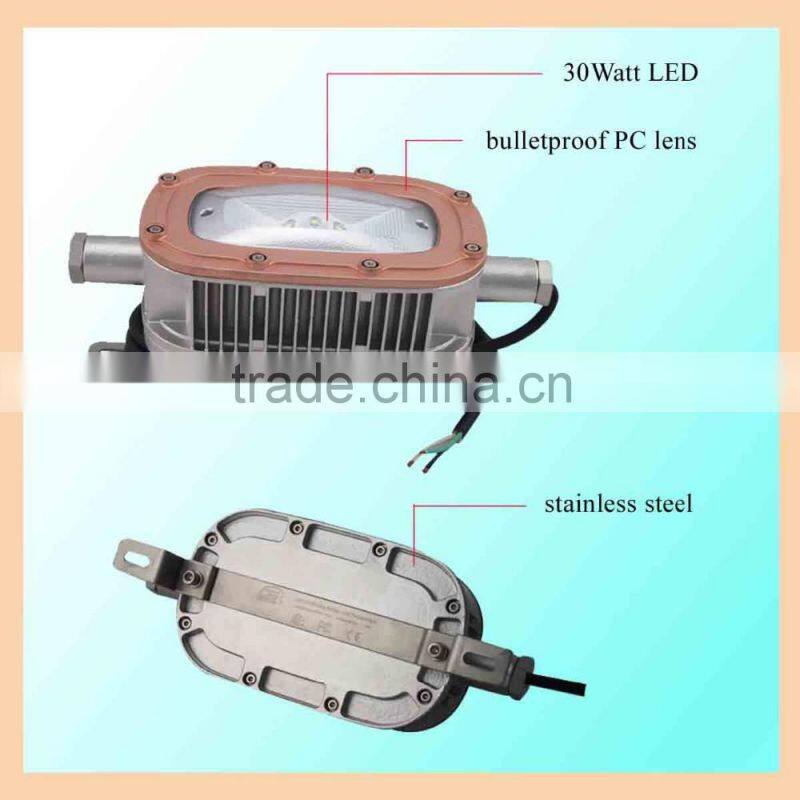

Housing material:

stainless steel with nickel plated, absolutely corrosion proof

bulletproof PC lens with antistatic oil painted, which can bear more than 20J impact, no need metal mesh as normal light

Light source:

6pcs American CREE LED, total power 30 watt,

initial output lumens is 3000 lumens.

Life time: more than 50,000 hours

CRI: 78, color temperature: 6500K

Patented reflectors enable the lamp to illuminate the underground passage uniformly, 150 degree beam angle in longitudinal plane, and 120 degree in transverse plane

Electrical:

Input: AC85-265V, 50/60HZ, or DC24-36V, no critical to voltage drops.

Total power consumption is only 30watt, .reducing energy consumption by 7 times.

Rated:

water proof: IP67

Corrosion proof: WF2

EXD I,

EXD IIB T4 (for Zone 1 and 2, Zone 21 and 22 )

Approval:

ATEX (In process)

CSA

FM (in process)

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide custom-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems of technical.

5. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Looking forward to cooperating with you.

How To Order

1. Please let us know what kind of model, quantity, requirement you need.

2. We confirm the order info, then make PI ( Proforma Invoice ) for you.

3. Pay the money or deposit to us after you get the PI.

4. Receive your payment arragent the order, done it asap.

5. You will get the goods in the confirmed days, ocean shipping or express shipping.

Golden Future Enterprise HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years,especially for miner lamp, explosion proof lighting fixture, led street light and other led commercial lightings,and etc.

Besides the led application products, our factory also can do some OEM products, such as making moylds, plastic injections, CNC aluminum parts or copper parts.

With many years selling, we have good reputation for high quality, good service and punctual delivery time from all our customers all over the world.

please do not hesitate to contact us if you need led application products or need to develop new products.

You are warmly welcome all the time.

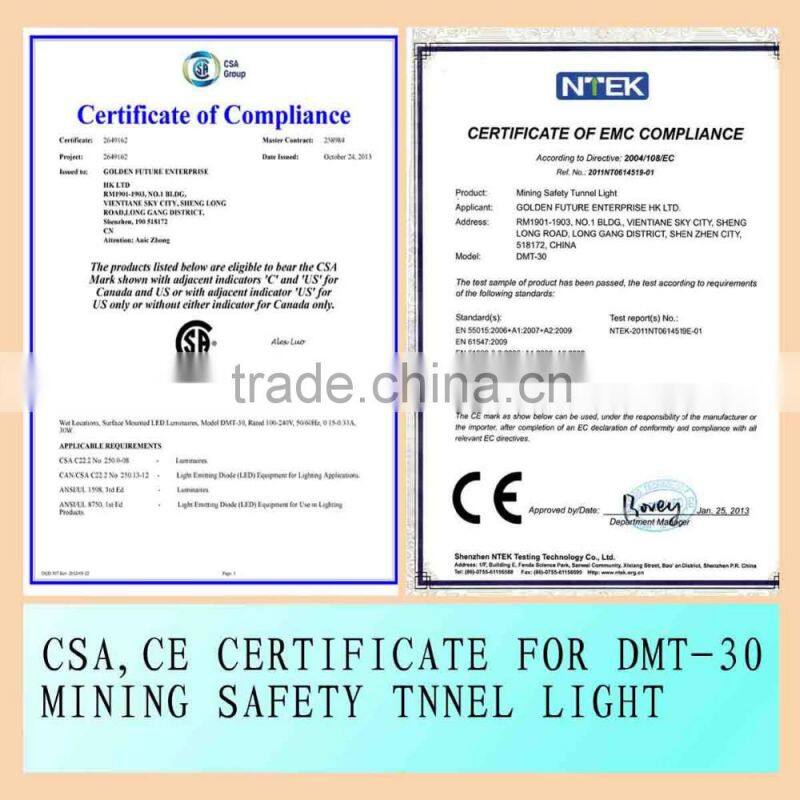

CERTIFICATION:

TEST EQUPMENT:

WORK SHOP

CERTIFICATE AWARDED BY GOVERNMENT:
