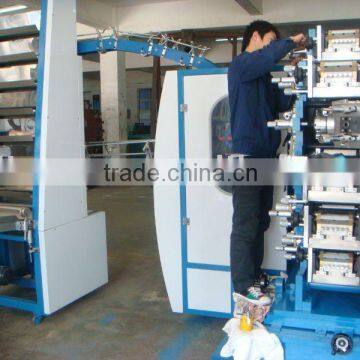

YB110-6 Six Colours cup printer
- Ningbo\Shanghai
- T/T Credit Card
You May Like
-
YR--4 Colors 1000mm Flexo Printing machine
-
YR--6 Colors labels Flexographic Printer
-
YB110-6 Six Colors printing machine
-
5 Colors three Die Cutting Station Flexo Printing Machine
-
YR--5 Colors 320mm width Flexo Printing Machine
-
YR--4 Colours 1000\650\480\320 mm Flexographic stacking Printing machinery
Product Details
| Condition | New | Plate Type | Flatbed Printer | |
| Place of Origin | Zhejiang, China | Brand Name | Jiangnan | |
| Model Number | YB110-6 | Usage | Other, cup printer | |
| Automatic Grade | Automatic | Gross Power | 14KW | |
| Dimensions(L*W*H) | 3.8MX2.2MX2.6M | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
This machine can be used for printing words and pictures on various curved surface containers, such as cups and bowls, etcFeatures:
1. PLC system and auto detection system enable our machines have a precise control and reliable performance. Touch screen auto display of failure causes and solving solutions make the machine easier to operate.
2. Synchronously driven by two motors make this plastic cup printing machine has good stability, high speed, low vibration and long service life. The maximum speed has reached 320pcs/min.
3. Independent driving for printing drum and graduator offers a simple operation and also helps reduce mechanical loss for debugging. Thus the product quality and machine life is further , guaranteed. ..
4. YB-6110 adopts high speed UV curing technology. And stand-by system is available for convenient and safe changing of printing plate.
5. Adopting of corona treatment offers a more scientific printing process.
6. Auto cup feeding and cup stacking devices are equipped. Besides, it adopts belt-less screw driving and photoelectric counting, which helps reduce screw friction. As a result, the hygienic standard and precision counting is guaranteed.
7. An ideal ink supply is guaranteed by the adjustable pressure of ink roller.
8. Printing plate is tensioned by a guide spring, which offers a simple installation and disassemble of printing plates.
9. Flexible printing assembly enables a convenient and simple debugging and cleaning...
Maximum Printing Speed | 3000pcs/min |
Cup Rim Diameter | Φ40mm --Φ110mm |
Cup Height | 35mm180mm |
Power | 20A 3PH 380V±10V 50HZ |
Maximum Printing Height | 110mm |
Push-Out Device Of Thermoformed-well cups | One side ( on left side) |
Atmospheric Pressure | 2.2m3/min 0.6-0.8mpa |
Pressure Regulation | Electric and digital display |
Machine Dimension | L3.8m,W2.2m,Height2.6m |
Cup Taper | 20-130 |
Maximum print length In6-blanket mode In3-blanket mode |
270mm.(=86mm. average print dia) 400mm.(=127mm.average print dia) |
Weight Of Machine | 4.5T |
