Home > Products > Food processing machineries > Industrial use rapeseed oil press expeller production 20~30kg/h oil

Industrial use rapeseed oil press expeller production 20~30kg/h oil

FOB Price

US$ 1,699 - 1,999 / Piece

5 Pieces(Min. Order)

Port Ningbo Qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Usage	Other, Rapeseed seed,soybean, peanut
Type	Other, Cold & Hot Pressing Machine, Vertical temperature control type	Automatic Grade	Automatic
Production Capacity	20~30kg/h oil	Brand Name	Dulong
Model Number	DL-ZYJ60C	Voltage	220v/380v
Power(W)	3 Kw	Dimension(LWH)	11040130cm
Weight	260KG	Certification	Best quality guarantee

Product Description

Specifications

rapeseed oil press expeller
1. Vertical temperature control
2.Production: 20~30kg/h oil

Industrial use rapeseed oil press expeller production 20~30kg/h oil

Introduction:

Model: DL-ZYJ60C

Power: main moter: 3 Kw

Voltage: 220v/380v for your choice

Packing Demension: 110*40*130cm

Intput: 40-60kg raw material per hour

Capacity: 20~30kg/h oil

Usage:Rapeseed,seed,soybean, peanut,pepperseed,sunflower, cottonseed,tallow treeseeds,tung treeseeds,corn,sesame,walnut etc.

Available industrial oil press models:

Oil press type	Model name	Dimension	Net weight	Voltage/power	Input(raw material)
Vacuum filter models	DL-ZYJ60D	10580140cm	330kg	moter:3kw	40-60kg/h
				Filter:0.75kw
				220v/380v
	DL-ZYJ70D	14090120cm	350kg	moter: 4kw	70-90kg/h
				Filter:0.75kw
				380v
	DL-ZYJ100D	160110150cm	750kg	moter:5.5kw	100-120kg/h
				Filter:0.75kw
				380v
	DL-ZYJ120D	175110170cm	850kg	moter:7.5kw	120-150kg/h
				Filter:0.75kw
				380v
	DL-ZYJ200D	210150180cm	1200kg	moter:7.5kw	200-230kg/h
				Filter:1.1kw
				380v
	DL-ZYJ220D	220155180cm	1200kg	moter:11kw	220-240kg/h
				Filter:1.1kw
				380v
	DL-ZYJ400D	250165200cm	1600kg	moter:18.5kw	400-450kg/h
				Filter:1.1kw
				380v
	DL-ZYJ450D	258165200cm	1700kg	moter:22kw	450-550kg/h
				Filter:1.1kw
				380v
Vertical temperature control	DL-ZYJ60C	11040130cm	260kg	3kw 220v/380v	40-60kg/h
	DL-ZYJ70C	12548130cm	280kg	4kw,380v	70-90kg/h

Picture show:

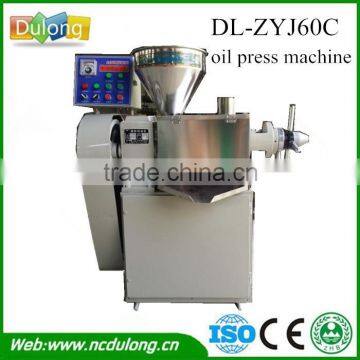

DL-ZYJ60C:40-60kg/h input

DL-ZYJ70C:70-90kg/h input

DL-ZYJ60D:40-60kg/h input(with 2 filters)

DL-ZYJ100D:100-120kg/h input(with 2 oil filters)

Temperature regulator:

Temperature Regulator Chart
Raw Materials	Temperature Range
seasame	180~230
peanuts,vegetable seed, soybean, sunflower seed,okra etc	140~190
tea seed	150~190

Operation:

1. Connect to the power and turn on the switch.

2. Regulate the temperature to be 150 -260, per raw materials.

3. Start the screw temperature heater

4. Start the motor forward-rotating when the temperature is okay.

5.First put a small amount of raw materials for pressing, to test whether the machine can be normal operation. And batch input materials after the diesel smoothly.

6.Close the termperature heater when materials pressing finished. And let the machine working emty for 2~5 mintues.

7.Stop the machine and disconnect the power when all the materials are pressing out.

Package:
