Home > Products > New products > Conveyor Belt

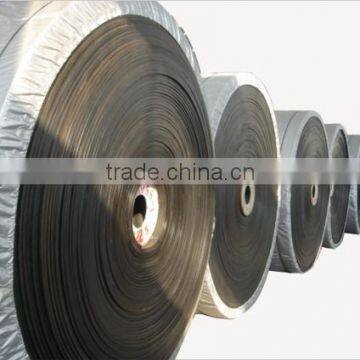

Conveyor Belt
- 8000000 Meter / Meters per Month
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | JM |
Product Description
Specifications
The multi-ply conveyor belt is applicable under dry conditions with less than 16 degrees obliquity, they are widely used in concoal mine conveyor belt
FOB Price/m | Trade Terms | Port of Loading | MOQ | Certificate |
$10 -- $150 | TT LC: ≥$100,000
| Sea Port: Qingdao/Tianjin Air Port: Beijing/Qingdao DHL/TNT/Fedex: Jinan | 100m | ISO9001-2008
MA Approved |
conveyor belt,rubber conveyor belt,ep conveyor belt
1:ep conveyor belt
2:packing in polybag
3:Sample available
ep conveyor belt Feature: the carcass is EP fabric(warp is PET, weft is NN66). With the benefit that light in weight, high modulus, impact resistant, Low loading extension rate, Easy to trough and track, good flexibility , Anti- heat and humidity and also avoid insect destroy.
conveyor belt Market: Aggregate, Baggage Handling, Bulk Handing, Cement, Coal, Foundry, Grain, Hard Rock, Package Handling, Wood Products, Sand and Gravel, Steel Products.
conveyor belt Benefits:
1,Reduced strength
The combination of fabric design and dip process provide less elastic and permanent elongation on all specifications this minimizes take-up concerns
2,High-modules, superior troughing characteristics
With the high-tension PET warp and NN66 fiber could provide the belt high-modules and superior troughing characteristics.
3,Variety of cover compounds and cover gauges
Protect your product with the proper compound and cover gauge for the application.
Specification and technical data of conveyor belt
| Fabric structure | Ply thickness |
| (N/mm) | (mm) | Width | Length | ||||||
Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Upper | |||||
Polyester | Polyester | Polyamine | EP-80 | 0.6 | 160 | 240 | 320 | 400 | 480 | 1.5~12 | 0~4.5 | 400~2500 | ≤300 |
EP-100 | 0.75 | 200 | 300 | 400 | 500 | 600 | |||||||
EP-150 | 1 | 300 | 450 | 600 | 750 | 900 | 400~2500 | ||||||
EP-200 | 1.1 | 400 | 600 | 800 | 1000 | 1200 | |||||||
EP-250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | 800~2500 | ||||||
EP-350 | 1.45 |
| 1050 | 1400 | 1750 | 2100 | 1000~2500 | ||||||
EP-400 | 1.55 |
|
| 1600 | 2000 | 2400 | |||||||
EP-500 | 1.7 |
|
| 2000 | 2500 | 3000 | |||||||
Conver properties of conveyor belts
Type |
Mpa ≥
| Mpa ≥ | mm2 ≤ | Change Rate of tensile strengh and elong after aging |
% | ||||
H | 24 | 450 | 120 | -25~+25 |
D | 18 | 400 | 100 | -25~+25 |
L | 15 | 350 | 200 | -25~+25 |
Adhesion and elongation of conveyor belt
Item |
| N/mm | Elongation | ||
Covering thickness | Covering thickness |
| Longitudinal elongation | ||
All the sample average ,N/mm,≥ | 4.5 | 3.2 | 3.5 | ||
All samples minimum peak ,N/mm,≥ | 3.9 | 2.4 | 2.9 | 10 | 4 |
Note: All samples shall not exceed the peak values | |||||
coal mine conveyor belt
Good elasticity, high strength
Impact-resistance
Flexibility,trough ability
Limited elongation
