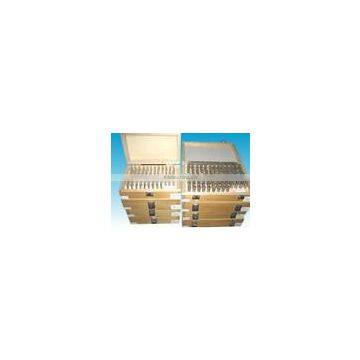

Plain Plug Gages

Specifications

Model(minus)   Model(plus)          Range      No. of gages

   GP-M0M       GP-M0P          0.011" to 0.060"         50

   GP-M1M       GP-M1P          0.061" to 0.250"        190

   GP-M2M       GP-M2P          0.251" to 0.500"        250

   GP-M3M       GP-M3P          0.501" to 0.625"        125

   GP-M4M       GP-M4P          0.626" to 0.750"        125

   GP-M5M       GP-M0P          0.751" to 0.832"         82

   GP-M6M       GP-M1P          0.833" to 0.916"         84

   GP-M7M       GP-M2P          0.917" to 1.000"         84

*when you order repiacement pins,just tel us size,Minus or plus.

Plain Plug Gages Library Series

Model(plus)      Model(minus)          Range      No. of gages

                      INCH LIBRARY SERIES

GPS-M1-2p       GPS-M1-2M       0.061"to.500"        440

GPS-M1-4p       GPS-M1-4M       0.061"to.750"        690

GPS-M1-7p       GPS-M1-7M       0.061"to1.000"      940

Plain Plug Gages DIN 2269

Features:
*Go(Plus) or No-Go(Minus)

*Gcr15 Steel : 60/62 HRC

*Accuracy :  ±0.002mm

*50mm Long

Uses:

*Checking locations

* Measuring hole sizes and depths

* Go and No-Go gauging

*Setting micrometers.

* Checking distances between holes.

Model No.  Range        Step   No. of gages  Model No.  Range        Step   No. of gages

GM-00    0.30-1.00mm   0.01mm      71           GM-12   4.02-6.00mm    0.02mm     100

GM-01    1.01-2.00mm   0.01mm     100          GM-13   6.02-8.00mm    0.02mm     100

GM-02    2.01-3.00mm   0.01mm     100          GM-14   8.02-10.00mm  0.02mm     100

GM-03    3.01-4.00mm   0.01mm     100          GM-15   1.02-3.00mm    0.02mm     100

GM-04    4.01-5.00mm   0.01mm     100          GM-16   3.02-5.00mm    0.02mm     100

GM-05    5.01-6.00mm   0.01mm     100          GM-17   5.02-7.00mm    0.02mm     100

GM-06    6.01-7.00mm   0.01mm     100          GM-18   7.02-9.00mm    0.02mm     100

GM-07    7.01-8.00mm   0.01mm     100          GM-19   9.02-11.00mm  0.02mm     100

GM-08    8.01-9.00mm   0.01mm     100          GM-20   10.01-11.00mm 0.01mm    100

GM-09    9.01-10.00mm 0.01mm     100          GM-21   11.01-12.00mm 0.01mm    100

GM-10    0.30-2.00mm   0.02mm      86

GM-11    2.02-4.00mm   0.02mm     100
