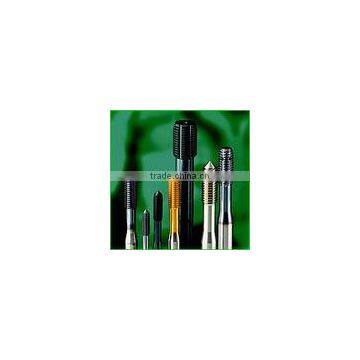

Thread Forming Taps
- T/T
Product Details
| Place of Origin | Shandong, China | Brand Name | JM | |
| Model Number | TP-125 |
Product Description
Specifications
DIN371Machine Tap,DIN374 Machine Tap, Material: M2, M35, M42, YG8We produce and supply all kinds of taps,it devided as following:
1) straight flutes taps
2) spiral flutes
3)straight flutes wiht spiral point
4) fluteless taps
5) trapeoid tap
6) nut tap
7) taper pipe tap
8)straight pipe tap
the material is : Alloy steel,HSS , HSS-E or aCarbide
the surface can be : bright or Titanium coated, TICN,
standard can be: ISO 529 , ASME/ANSI B949
BS 949,
DIN171,DIN374,DIN 352,DIN376
DIN 374 Machine Taps,machine tap,DIN 374
HSS DIN 374 machine taps.Material:High Speed steel
Detail size:
| DIN 374 Straight Fluted Taps,HSS | ||||||
| Size | Overall Length | Thread Length | Model No. | Size | Overall Length | Thread Length |
| M3X0.35 | 56 | 10 | 3011-300 | M16X1.25 | 100 | 22 |
| M3.5X0.35 | 56 | 10 | 3011-301 | M16X1.5 | 100 | 22 |
| M4X0.35 | 63 | 10 | 3011-302 | M18X1 | 110 | 25 |
| M4X0.5 | 63 | 10 | 3011-303 | M18X1.5 | 110 | 25 |
| M5X0.5 | 70 | 12 | 3011-304 | M18X2 | 125 | 34 |
| M6X0.5 | 80 | 14 | 3011-305 | M20X1 | 125 | 25 |
| M6X0.75 | 80 | 14 | 3011-306 | M20X1.5 | 125 | 25 |
| M7X0.75 | 80 | 14 | 3011-307 | M20X2 | 140 | 34 |
| M8X0.5 | 80 | 19 | 3011-308 | M22X1 | 125 | 25 |
| M8X0.75 | 80 | 19 | 3011-309 | M22X1.5 | 125 | 25 |
| M22X2 | 140 | 34 | ||||
| M8X1 | 90 | 22 | 3011-310 | M24X1 | 140 | 28 |
| M9X1 | 90 | 22 | 3011-311 | M24X1.5 | 140 | 28 |
| M10X0.5 | 90 | 20 | 3011-312 | M24X2 | 140 | 28 |
| M10X0.75 | 90 | 20 | 3011-313 | M26X1.5 | 140 | 28 |
| M10X1 | 90 | 20 | 3011-314 | M27X2 | 140 | 28 |
| M10X1.25 | 100 | 24 | 3011-315 | M28X1.5 | 140 | 28 |
| M11X1 | 90 | 20 | 3011-316 | M30X1.5 | 150 | 28 |
| M11X1.25 | 90 | 20 | 3011-317 | M30X2 | 150 | 28 |
| M12X0.75 | 100 | 22 | 3011-318 | M32X1.5 | 150 | 30 |
| M12X1 | 100 | 22 | 3011-319 | M35X1.5 | 170 | 30 |
| M12X1.25 | 100 | 19 | 3011-320 | M36X1.5 | 170 | 30 |
| M12X1.5 | 100 | 22 | 3011-321 | M38X1.5 | 170 | 30 |
| M13X1 | 100 | 22 | 3011-322 | M40X1.5 | 170 | 30 |
| M13X1.5 | 100 | 22 | 3011-323 | M42X1.5 | 170 | 30 |
| M14X0.75 | 100 | 22 | 3011-324 | M45X1.5 | 180 | 32 |
| M14X1 | 100 | 22 | 3011-325 | M48X1.5 | 190 | 32 |
| M14X1.25 | 100 | 22 | 3011-326 | M50X1.5 | 190 | 32 |
| M14X1.5 | 100 | 22 | 3011-327 | M52X1.5 | 190 | 32 |
| M16X1 | 100 | 22 | 3011-328 | |||
