80 watt petrochemical plant ATEX approved lights
- SHENZHEN
- T/T Credit Card
You May Like
-
20w IP67 explosion proof gas station flood light
-
No UV or IR 20 watt explosion proof boat dock lighting
-
20w explosion proof outdoor gas station flood light
-
2015 best selling IP67 aluminum housing 2000 lumens 20w outdoor led waterproof floodlight
-
High lumen 20w IP67 led marine waterproof dock light
-
UL approved flammable area and explosive hazard zone use aluminum housing 20w led marine waterproof dock light
Product Details
| LED Light Source | Cree | Input Voltage(V) | AC85-265V | |
| Lamp Power(W) | 80 | Lamp Luminous Flux(lm) | 8000 | |
| Lamp Luminous Efficiency(lm/w) | 100 | Color Temperature(CCT) | Cool White | |
| Working Temperature(℃) | -30, 50 | Working Lifetime(Hour) | 50000 | |
| IP Rating | IP66 | Certification | CE | |
| Emitting Color | Cold White | Place of Origin | Guangdong, China | |
| Brand Name | Golden Future | Model Number | DL618B |
Product Description
80 watt petrochemical plant ATEX approved lights
specification for 80 watt petrochemical plant ATEX approved lights
Items | Unit Value | |
Light Source | LED | CREE XT-E/ CREE XM-L |
Luminous Flux | 3200/7500 lumens | |
Color Temperature | 5700-6000K | |
Color Rendering Index | Ra>70 | |
power | 40 watt/ 80 watt | |
Input Voltage | AC 110-277V | |
Housing Material | Die cast aluminum housing with tempered glass | |
Dimension | ø90X800 mm | |
Weight | 8 kg | |
Working Temperature | -30°C - 50°C | |
Beam angle | 180° | |
Corrosion protection Classification | WF2 | |
IP Classification | IP66 | |
EX Mark | Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃ | |
Total harmonic current | <15% | |
Factor | >0.90 | |
Mounting Angle | 360° | |
Features of 80 watt petrochemical plant ATEX approved lights
1. Flameproof explosion-proof design
strong impact resistance
increase safety performance
2. Energy-saving
high efficiency LED power supply
3. Easy operation
ceiling/ pole/ tiger clip –on mounting, etc.
4. More than 50000 hours long life span
5. Die cast aluminum housing with super corrosion proof polyester powder coated
Toughen tempered glass
6. Models available:
DL618A: 40 watt
DL618B: 80 watt
DL618E: 40 watt with emergency function
7. With the advantage of long lifetime and free maintenance, this light is designed to replace the fluorescence lights. It is equiped with emergency battery to meet emergency usage.

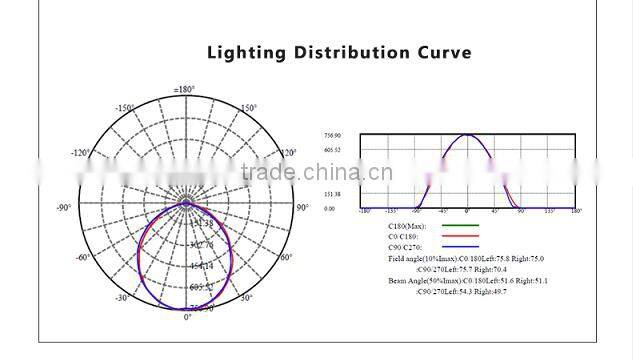

8. lighting distribution curve:
Application for 80 watt petrochemical plant ATEX approved lights
DL618 series LED Explosion Proof Floodlight is applicable for zone I and zone II , or gas area, restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot, and it’s designed and manufactured according to requirements of EN60079-0: 2009, EN60079-1: 2007, EN60079-31: 2009, IEC60079-0: 2007, IEC60079-1: 2007, IEC60079 31: 2008. The Ex marking is :Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃
Package for 80 watt petrochemical plant ATEX approved lights
1 pc per carton
gross weight: 6kg
Replying your inquiry within 24 hours
Consultation from professional and experienced staff
Providing 1-3 years warranty
Solid pakage & fast delivery & newly tracking mews
OEM is welcome. Providing customized service.
Golden Future Enterprise HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years,especially for miner lamp, explosion proof lighting fixture, led street light and other led commercial lightings,and etc.
Besides the led application products, our factory also can do some OEM products, such as making moylds, plastic injections, CNC aluminum parts or copper parts.
Please do not hesitaye to contact us if you need led application products or need to develop new products.
You are warmly welcome all the time.
With many years selling, we have good reputation for high quality, good service and punctual delivery time from all our customers all over the world.
Q: 1. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.
Q: 2. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: 3. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q: 4. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 5. How to make this payment?
A: TT, Paypal, Western Union.
Q: 6. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 7. Do you accept OEM/ODM?
A: Yes, it’s available
