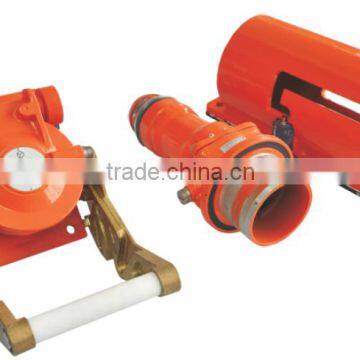

Railway Rolling Stock Use IRC-4B Type Coupler
- Any port in China
- T/T
You May Like
Product Details
| Place of Origin | Chongqing, China | Model Number | IRC-4B |
Product Description
railway rolling stock use IRC-4B type coupler :
Introduction:
It is used in railway, locomotive vehicle,city railway vehicle and industry electric system.
The contact type between contact element and wire end : Cool pressure connection terminal
Specification:
environment temperature:-50℃~70℃.
relative humidity:90±3%(when temperature is 25℃)
related current:400A
related voltage:AC 660v
insulation resistance:≥500MΩ
contact resistance:≤3mΩ
withstand voltage:≥3000v 50Hz AC
IP:55
mechanical life:≥500
wire: 150mm2

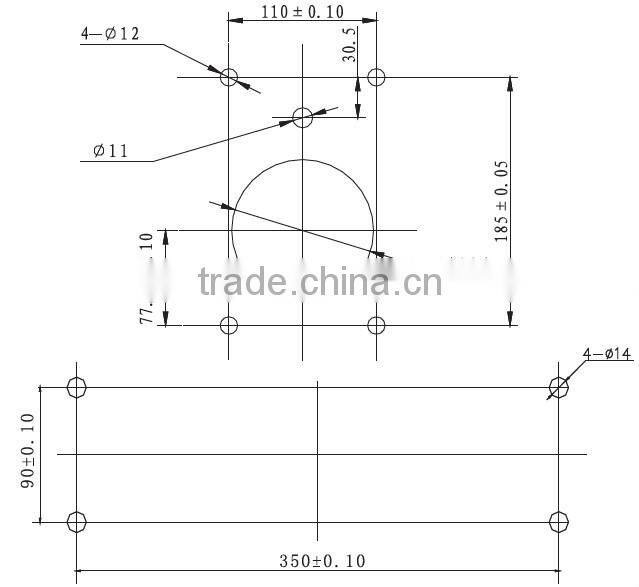

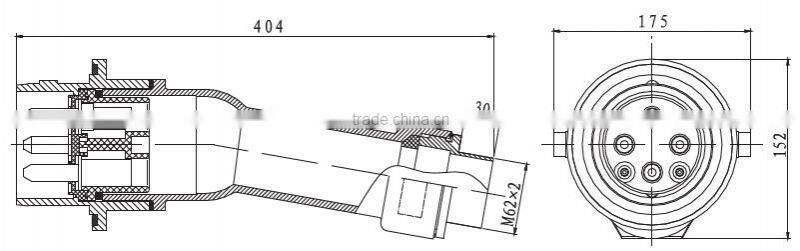

outside size:
