Home > Products > Wind Inverter > 1.5kw/2kw Wind Power Grid Tie Inverter

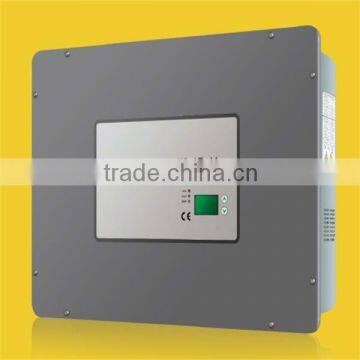

1.5kw/2kw Wind Power Grid Tie Inverter
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | GT | |
| Model Number | GTW | Output Power | Other, >1000KW | |
| Output Type | Dual | Input Voltage | 40-450 | |
| Output Voltage | 196-253 | Type | DC/AC Inverters | |
| Output Frequency | 50/60 Hz |
Product Description
Specifications
1.Excellent performance2.Could convert unstable fluctuating AC current
3.Contain an integrated isolation transformer
4.CE
Wind Power Grid Tie Inverter
CTW-1.5KS/CTW-2KS
Product Features
*Our wind power inverters have different specifications, and they have shown an excellent performance in its functions and handling ability.
* Our wind power grid tie inverter could convert unstable fluctuating AC current from electronic generator to AC current with stable voltage and frequency, and then input AC current into grid. At the same time, if the wind power controller outputs DC current, the grid tie inverter could also accept converting DC current output. our inverters contain an integrated isolation transformer; therefore, it is possible to connect any quantity of inverters using parallel connection to make it work appropriately with the wind turbine’s maximum power.
Technical Data
Model | CTW-1.5KS | CTW-2KS |
Input Parameter |
| |
Range of MPPT Voltage (DC) | 40V - 450V | |
Maximum Power of Turbine | 1600W | 2100W |
DC Voltage VPP | VPP < 10 % | |
Output Parameter | ||
Power Rating | 1500W | 2000W |
Range of Grid Voltage | 196 – 253V AC | |
Range of Grid Frequency | Choice of either 50Hz or 60Hz | |
Power Factor | > 0.99 | |
Maximum Efficiency | 94% | |
Standby Consumption | < 11 W | |
Protections | Anti-island, Over Temperature, Over Load, Over Current, Over Voltage | |
Total Harmonic Distortion (THD) | < 4 % | |
Mechanical Characteristics | ||
Dimensions W×H×D in mm | 555/420/125 | |
Weight | 30kg | 32.5kg |
Protection Level | IP20 | |
Installation Method | Wall-mounted | |
Working Environment Temperature | -20°C~+40°C | |
Storage Temperature | -20°C~+50°C | |
Inverter Characteristics | ||
Cooling Method | Cooling Fan | |
Display | LCD & Signal Lamps | |
Communication | RS485 | |
Points of Power Curve | Minimum 5, Maximum 20. | |
EMC | EN61000-6-1:2007 | |
Safety Standard | IEC 62103:2003(1st Edition) | |
EN50178:1997 | ||
Grid Connecting Standard | DIN VDE 0126-1-1:2006 | |
