500W Portable Solar Power System (Lithium Battery)
- SHANGHAI
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | GT | |
| Model Number | ISS500Z | Specification | Normal | |
| Application | Commercial | Output Voltage (V) | 110/120/220/230VAC | |
| Load Power (W) | 500W | Solar Power (W) | 100W | |
| Work Time (h) | 24 Hours |
Product Description

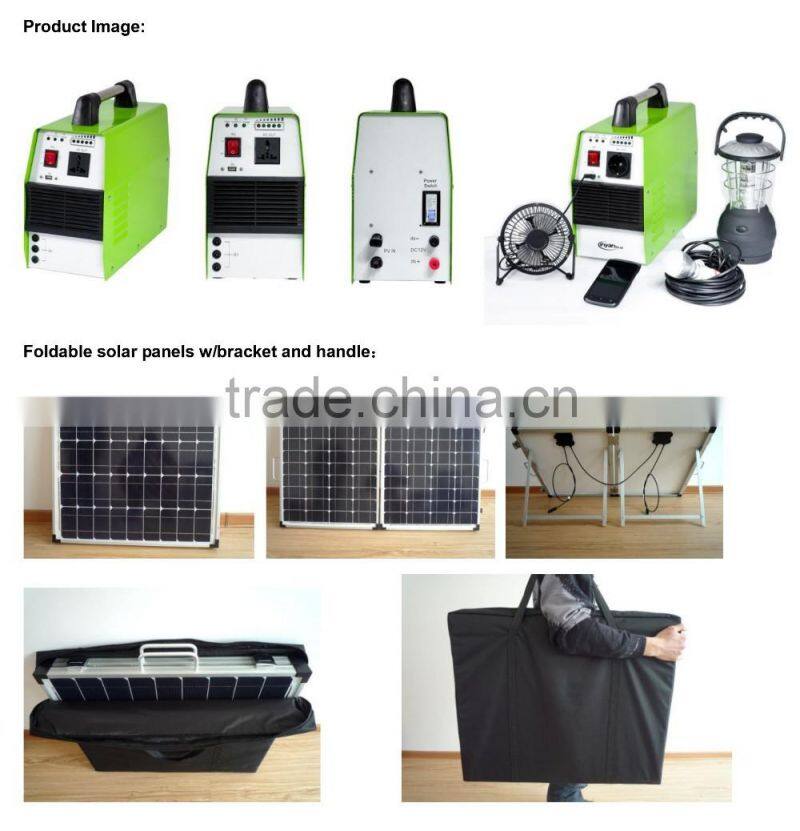

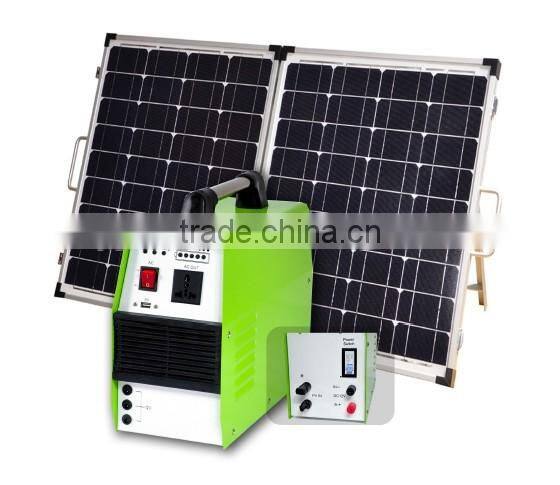

500W Portable Solar Power System ( Lithium battery)
Portable Solar Power System includes solar panel, solar inverter, solar battery and solar controller. It can be applied to the villa, household, outdoor camping, tourist resorts, prairie areas, remote mountain village, no power supply areas, arms, villages, farm, hills, island, highway and any regions to generate electricity. Use very widely. It can charge led lamps, cell phones, notebook computers, lights, digital camera, fans, TV set, electric tools, music CDS, DVDS, electric power, such as voltage in 5VDC/12VDC/110VAC/220VAC/230VAC 50Hz/60Hz.
1. Product Features:
Environmental protection: solar product does not produce pollutants, without noise; create a green, clean, comfortable living environment.
Convenience: easy to install & operate, without the laying of cables, or destruction of building structures. Small & light, portable design, easy to carry.
2. Main Functions:
1. Built-in inverter, controller and battery
2. LED working condition
3. LED indicator of battery capacity
4. Overload protection
5. Short circuit protection
6. Reverse discharge protection
7. Reverse polarity connection protection
8. Over discharge protection
9. Over charge protection
10.AC and DC output.
11.Suitable for household lighting, TV, fan, radio, computer and so on. Not suitable for capacitive load, as electric motor, refrigerator, air conditioning, microwave and ovens.
3. Products guarantee
Main machine guarantee time: 1 years limited warranty (lifetime: more 10years)
Battery guarantee time: 1 year (Lead acid battery lifetime: 2-3years; Lithium battery lifetime: 5-6years ;)
Solar panel guarantee time: 5 years (lifetime: around 25years, 90% output power at first 10 years, 80% output power at second 10 years)
4. Technical Data:
Model | ISS150F | ISS300Z | ISS500Z-D | ISS500Z |
System Specification: | ||||
Rated Output Power | 150W | 300W | 500W | 500W |
Solar Panel Power | 18V 50W(50W*1) | 18V 100W(50W*2) | 18V 50W(50W*2) | 18V 100W(50W*2) |
Solar Panel Charging Time | 5.5 hours effective sunlight | 3 hours effective sunlight | 5.5 hours effective sunlight | 4.5 hours effective sunlight |
Battery Capacity | 12V 33AH Lead acid battery | 12V 33AH Lead acid battery | 12V 33AH Lead acid battery | 12V 50AH Lithium battery |
AC Output | AC 110V/220V/230V,50Hz/60Hz | |||
AC Output Waveform | Modified sine wave | Pure sine wave | Pure sine wave | Pure sine wave |
AC Output Socket | Universal English German French Australian American | |||
DC Output | 3*12VDC outputs & 1*5V (500mA) USB output | |||
Peak Inverter Efficiency | 85% | 92% | 92% | 92% |
Overload Protection | Yes | Yes | Yes | Yes |
Under-voltage Alarm | Yes | Yes | Yes | Yes |
Overheat Protection | Yes | Yes | Yes | Yes |
Short-circuit Protection | Yes | Yes | Yes | Yes |
Battery Power Indicator | Yes | Yes | Yes | Yes |
External Battery Charger | Yes | Yes | Yes | Yes |
External Battery | Yes (12V same capacity) | Yes (12V same capacity) | Yes (12V same capacity) | No |
Certificate | CE & RoHS | |||
Mechanical Data: | ||||
System Box(mm) | L375*W150*H320 | L375*W150*H320 | L375*W150*H320 | L375*W150*H320 |
Net Weight of System Box | 15.7kg | 15.9kg | 16.5kg | 12.5kg |
Appearance Color | White + Green | White + Green | White + Green | White + Green |
Solar Panel (mm) | L640*W540*H30 | L640*W540*H60 | L640*W540*H30 | L640*W540*H60 |
Net Weight of Solar Panel | 4.5kg | 10.5kg | 4.5kg | 10.5kg |
Battery (mm) | L196*W130*H162 (Total H175) | L196*W130*H162 (Total H175) | L196*W130*H162 (Total H175) | L190*W140*H132 |
Net Weight of Battery | 10.5kg | 10.5kg | 10.5kg | 6.0kg |
5. Loads and working time reference:
Product Model | ISS150F | ISS300Z | ISS500Z-D | ISS500Z | |
Electric Appliances & load power | Duration of single load | ||||
3 LED Lights | 5W * 3 | About 19.5H | About 19.5H | About 19.5H | About 28H |
Incandescent bulb | 75W * 1 | About 4H | About 4H | About 4H | About 5.5H |
29" LCD TV | 150W * 1 | About 2H | About 2H | About 2H | About 2.8H |
Desktop computer | 150W * 1 | About 2H | About 2H | About 2H | About 2.8H |
Fan | 60W * 1 | About 5H | About 5H | About 5H | About 7H |
Washer | 350W * 1 | / | / | 45 minutes | 70 minutes |
Note: Different location, different charging time. Above load power is rated output power. The actual power is much smaller. Some home appliances like incandescent bulb, the actual power is same as rated power; but the TV and computers the actual power is much smaller than the rated power. | |||||

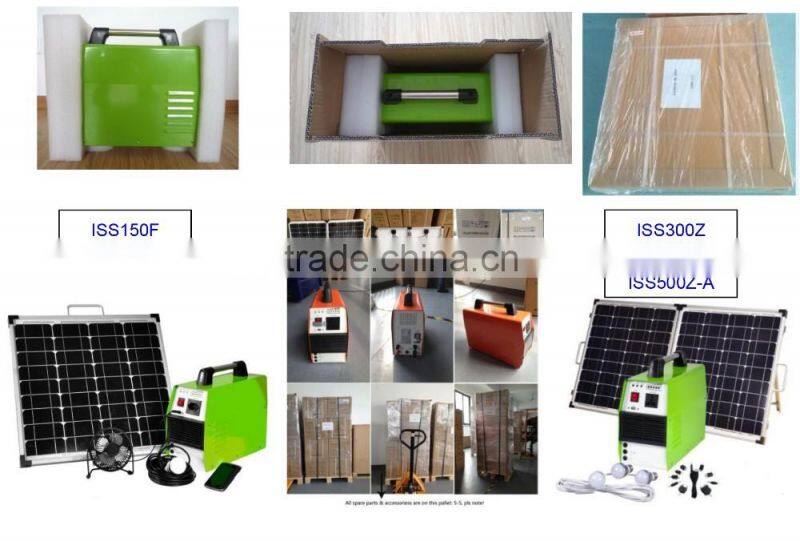

6. Package and container loading details:

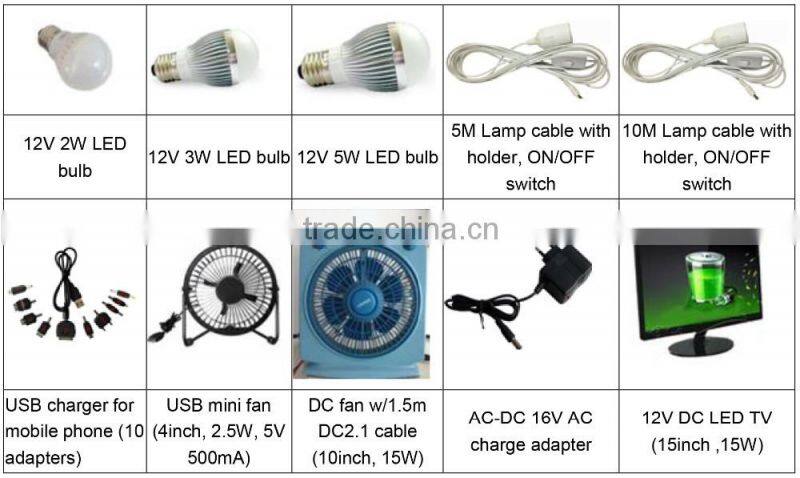

7.External accessories:(optional)
If our standard accessories do not fit your require, please check below optional accessories:

Appearance Color : White + Green
System Box(mm): L375*W150*H320; Net Weight of System Box: 15.7kg
Solar Panel (mm): L640*W540*H30; Net Weight of Solar Panel : 4.5kg
Battery (mm): L196*W130*H162 (Total H175) ; Net Weight of Battery :10.5kg
