Home > Products > LED Cleanroom Light > ONN X5C LED Light Pole for Production Line

ONN X5C LED Light Pole for Production Line

FOB Price

US$ 5 - 15 / Piece

1 Piece(Min. Order)

Port Shenzhen China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD 2835	Warranty(Years)	3
Input Voltage(V)	220	Lamp Power(W)	18
Lamp Luminous Efficiency(lm/w)	100	Color Temperature(CCT)	Other
Working Temperature(℃)	-20, 40	Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum	IP Rating	IP65
Certification	CE, EMC	Place of Origin	Guangdong, China
Brand Name	ONN

Product Description

Specifications

ONN X5C LED Light Pole for Production Line :
1.Alu. frame & PC cover
2.360 adjustable
3.Driver inside
4.IP65 CE/Rohs

ONN X5C LED Light Pole for Production Line

Application :

Freezer inner illumination,refrigeratory inner illumination,bakery and confectionery,pharmaceutical fctory,fishery industry,edible mushrooms industry (suitable for various sites where require water-proof,explosion-proof and not easy to replace,is the revolutionary replacement for traditional “ tri-proof”, “explosion-proof”)

Product Features :

1. 3/4 alumninium construction,small diameter only 19mm , without unnecessary parts,concise and generous,360°adjustable,easy installation .

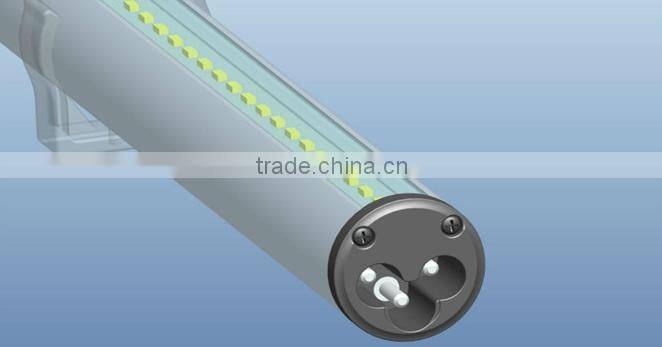

2. Ingenious design of two ends:prolongable connection,universal usage with the common product connector.

3. Different color temperature available,more better display effect for proudct . Lights color depends on customer's requirements .

4. Shadowless design : The connectors is thin ,lamp and lamp can reach t shadowless effect .

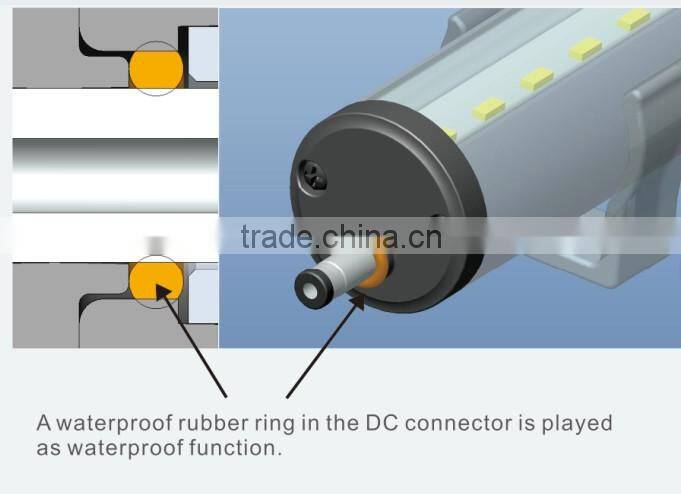

5. All joints with moisture-proof treatment ring , protection level can reach IP65,unique in domestic,first creation aroud the world. Light source and driver being gumming,IP grade can achieve IP67.

6. 3014 chips imported from Taiwan. Low thermal resistance ,good thermal condutivity , low light decay .

7. Adopt centralized power supply,cost saving and convenient for installation.

The Value-added services which ONN can supply to you :

1 . ONN can supply LED lighting solutions of Specific projects to you

2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers

Technical Parameters :

Brand	ONN	Surface Temperature	<50°C
Light source	SMD 2835	Mounting	fixed by screws
Lifespan of light source	100000+ hours	Place of original	Shenzhen , China
Viewangle	120°	CCT	2700K~3200K 4000K~4500K 5500K~6500K
luminious flux	100LM/W	IP grade	IP65
Voltage	220V	Power Rating	18W
length	1200mm

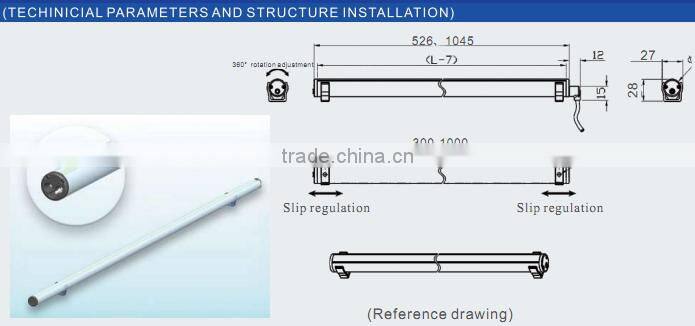

Product Size Drawing :
