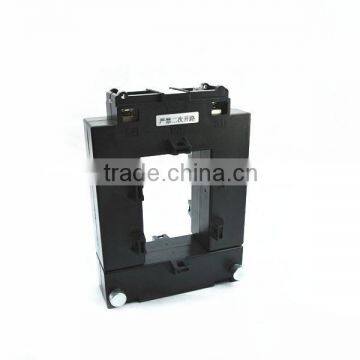

250-1000A/5A DP/DBP 80*50mm CE approved split-core current transducer
- shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiangyin Spark | |
| Model Number | DBP/DP | Usage | Electronic | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Features Of 250-1000A/5A DP/DBP 80*50mm CE approved split-core current transducer
Rated primary current: 100 to 5, 000A AC
Rated secondary current: 5 or 1A AC
Rated load: 1, 2.5, 5.0, 10 and 30VA
Accuracy: 0.5, 1.0 and 3.0 class
Rated short-time thermal current (Ith): 20In
Rated dynamic current (Idyn): 2.5Ith
Highest voltage for equipment (Um): 720V AC RMS
Rated power-frequency withstand voltage: 3, 000V AC RMS
Frequency range: 50/60Hz
Operating temperature: -15 to 60° C
Split core design, safer, easy to install and portable
Accessories: Supplied with feet for base mounting if required
Applications:
Current, power, energy and monitoring devices
Relay protection devices
Power factor correction devices
Available in 5 standard sizes
Standard: IEC 60044-1
RoHS Directive-compliant
Drawing Size Of 250-1000A/5A DP/DBP 80*50mm CE approved split-core current transducer
Pls contact me for much more information by Skype
My Skype:paul.duke188
