Home > Products > Split core current transformer 0.333V output > UL SCT-0750 100A:0.333V Split Core Current Transformer Split-Core CT

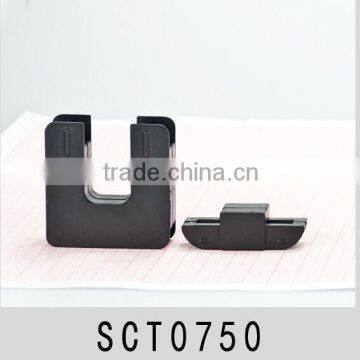

UL SCT-0750 100A:0.333V Split Core Current Transformer Split-Core CT
- shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiangyin Spark | |
| Model Number | XH-SCT-0750/1250/2000/3000 | Usage | Electronic | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Specifications Of UL SCT-0750 100A:0.333V Split Core Current Transformer Split-Core CT
Rated Current 5A to 3000Amp.
Output of 0.333 Volt at rated current
Accuracy: ± 1% from 10% to 150% of Full Scale Range
Phase angle < 2 maximum at 50% rated current
Snap closing/opening feature.
Shrouded core blades for protection during installation.
Core interleaved at joints for accuracy.
No exposed metal parts on assembled transformer.
Internal precision burden resistor across secondary.
Epoxy encapsulated housing.
Accuracy is measured from 10% to 130% of rated current.
Phase angle is measured at 50% of rated current
Drawing Size Of UL SCT-0750 100A:0.333V Split Core Current Transformer Split-Core CT
Model | I. D. | Rated Amps | Output | Accuracy | SIZE (mm ) | ||||
A | B | C | D | E | |||||
XH-SCT-0750 | 0.75" | 5, 15, 30, 50, 70, 100, 150, 200 | 0.333V | 1.0 | 51.6 | 54.1 | 16.6 | 19.1 | 18 |
XH-SCT-1250 | 1.25" | 70, 100, 150, 200, 250, 300, 400, 600 | 1.0 | 82.3 | 85.3 | 26.4 | 32 | 32.3 | |
XH-SCT-2000 | 2.00" | 400, 600, 800, 1000, 1200, 1500 | 1.0 | 120 | 125 | 29.6 | 52.5 | 52 | |
XH-SCT-3000 | 3.00" x 5.00" | 1000, 1200, 1500, 2000.3000 | 1.0 | 145 | 199 | 30.5 | 76 | 130 | |
