(D1 Series) Closed Loop Mode Hall Effect Current Sensor for Electrochemical
- 150000 Piece / Pieces per Month
- shanghai
- Credit Card
You May Like
-
(D5 Series) Closed Loop Mode Mini Hall Effect Current Sensor
-
B2 Series Multi-Range Closed Loop Mode Hall Sensor with ISO
-
Closed Loop Mode Hall Effect Current Sensor for Battery Supplied Applications
-
(C5N Series) Class 0.5 Open Loop Mode Hall Effect Current Sensor with UL94-V0
-
(A-C2T Series) Open Loop Dismountable Hall Effect Current Sensor with CE
-
(D-C3T) Split Core Hall Effect Sensor Miniature Clamp on DC Current Sensor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiangyin Spark | |
| Model Number | D1 | Usage | Consumption Sensor | |
| Theory | Hall Sensor | Output | Analog Sensor |
Product Description
Hall Effect Current Sensor

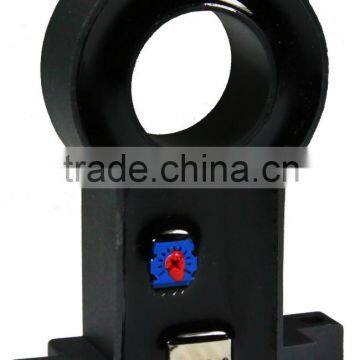

D1 series current sensor is a closed loop device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
| Electrical data (Ta=25ºC±5ºC) |
| Type | D1-50A | D1-100A | D1-200A | D1-300A | Unit |
| Rated current(Ipn) | ±50 | ±100 | ±200 | ±300 | A |
| Measure range(Ip) | 0-±75 | 0-±150 | 0-±300 | 0-±350 | A |
| Turns ratio(Np/Ns) | 1:1000 | 1:1000 | 1:2000 | 1:2000 | T |
| Measure resister | 0~200 | 0~200 | 0~80 | 0~50 | Ω |
| Coil resister | 12.5 | 12.5 | 27.5 | 27.5 | Ω |
| Rated output | 50 | 100 | 100 | 150 | mA |
| Supply voltage | ±12,±15 | V | |||
| Power Consumption | ≤20+IpX(Np/Ns) | mA | |||
| Offset current | @Ip=0 ±0.15 | mA | |||
| Offset drift | @ -40~+85ºC ≤±0.4 | mA | |||
| Linearity | @Ip=0-±Ipn ≤0.1 | %FS | |||
| Response time | @50A/μS, 10%-90% ≤1 | μS | |||
| Galvanic isolation | @ 50HZ,AC,1min 3 | KV | |||
| di/dt | >100 | A/us | |||
| Bandwidth | @ -3dB 0~100 | KHZ | |||
| Applications |
·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:I0UT 4:NC
| Directions for use |
1. When the current will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output current are available.
| Standards |
·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000
| General date |
| Value | Unit | |
| Operating temperature(TA) | -40 to +85 | ºC |
| Storage temperature(TS) | -40 to +125 | ºC |
| Mass(approx) (M) | 43 | g |
