C2 open loop hall effect AC DC current sensor
- shanghai
- Credit Card
You May Like
-
hall current sensor
-
Split core Hall effect AC DC pulse current sensor / transducer
-
K6 split core hall sensor hall current transducer
-
(B3) Closed Loop High Accuracy Hall Effect Current Sensor for Variable Speed Drives
-
(D1 Series) Closed Loop Mode Hall Effect Current Sensor for Electrochemical
-
(D5 Series) Closed Loop Mode Mini Hall Effect Current Sensor
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Jiangyin Spark | |
| Model Number | A-C1NT | Usage | Consumption Sensor | |
| Theory | Hall Sensor | Output | Analog Sensor |
Product Description

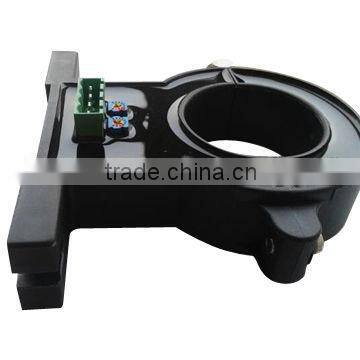

A-C1NT series hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.
Electrical data (Ta=25℃±5℃)
Type | A-C1NT-5A | A-C1NT-10A | A-C1NT-20A | A-C1NT-25A | A-C1NT-50A | Unit |
Rated current(Ipn AC) | 5 | 10 | 20 | 25 | 50 | A |
Measure range(Ip AC) | 0—10 | 0—20 | 0—30 | 0—37.5 | 0—75 | A |
Rated output | @Ip=±Ipn AC 4~20±1% | mA | ||||
Supply voltage | +24V | V | ||||
Power Consumption | +35+ Io | mA | ||||
Zero current | @Ip=0 4±0.1 | mA | ||||
Offset drift | @ -40~+85℃ ≤±0.005 | mA /℃ | ||||
Output drift | @ -40~+85℃ ≤±0.005 | mA /℃ | ||||
Linearity | @Ip=0-±Ipn ≤1 | %FS | ||||
Response time | ≤200 | ms | ||||
Galvanic isolation | @ 50HZ,AC,1min 2.5 | KV | ||||
Bandwidth | 20~20000 | HZ | ||||
Applications
·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical
Mechanical dimension(for reference only)
Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+24V 2: 0V 3:I0UT
Directions for use
1. When the current will be measured goes through a Transmitter, the current will be measured at the output end.(Note: The false wiring may result in the damage of the Transmitter)
2. The output amplitude of the transmitter can be adjusted according to users’ requirements.
3.Custom design in the different rated input current and the output current are Transmitter.
Standards
·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000
General date
| Value | Unit |
Operating temperature(TA) | -40 to +85 | ℃ |
Storage temperature (TS) | -40 to +125 | ℃ |
Mass(approx) (M) | 53 | g |
