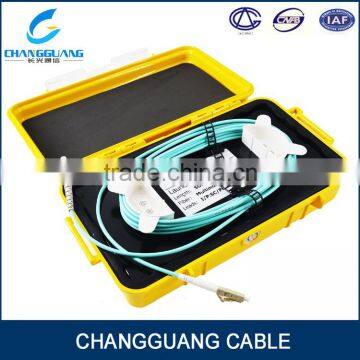

OTDR Launch Cable G657A Fiber

Mechanical & Environmental Characteristics

Dimension

23.8CMx 14.1CM x 6.7CM

Material

SR Polypropylene

Color

Yellow

Weight

0.75kg without fiber

Packaging

Rugged, hard-shell transit case

Storage Temperature

-40℃ to +85℃

Operating Temperature

-40℃to +85℃

Humidity

0 to 95%, non-condensing

Fiber & Connector Characteristics

Fiber Types

G652D, G657A, OM1, OM2, OM3, OM4

Fiber Length (m)

100 up to 2000 (max)

Lead Length

2 Meters, 3mm buffer

Typical Loss

<0.5dB @ 1310 for 1000 meters

Connector Type

SC/LC/FC/ST

Polish

PC, UPC, APC

Return Loss*

UPC>=50dB, APC>=60dB, PC>=35dB

Repeatability (dB)

<=0.2 (1000 times)

Exchangeability (dB)

<=0.2

OTDR-A-B-C-D

A for Input connector;

B for Output connector;

C for Fiber Mode;

D for Length;

For Example: OTDR-SC-FCA-SM-1KM; 1KM SM, SC on I/P lead, FC/APC on O/P lead

Company Scale

Covering an area of 170,000 square meter,with product lines for fiber optic cable and cable accessories , total more than 150 professional workers

Brands

CHANGGUANG

Production capabilities

5000KM per week

Product series

Indoor and outdoor fiber optic cable, ADSS fiber cable and OPGW cable, fiber optic patch cord, pigtail and other cable accessories

Quality control

We have strict test on each production line

Trade shows attended

2 times canton fair and one oversea fair at least every year

Main export markets

Central/South America, Mid East/Africa, Eastern Europe, North America, Asia, Western Europe, Australasia ,etc

Payment terms

T/T,L/C,ESCROW ,D/A,D/P, Western Union, MoneyGram, Paypal

MOQ.

1km/order

Delivery Time

Within 3 to 5 working days, but most depends on your quantity

Loading Port

Shanghai, China

OEM

Yes

Place of Origin

Shanghai, China

Quote Request Information

Fiber Count: 2 to 288 Fibers

Fiber type: Single mode: G652D, G655,G657. Multimode: 50/125,62.5/125. OM3

Order Quantity
