Hot selling recycled paper pencil making equipment newspaper pencil production line

Advantage of Hot selling recycled paper pencil making equipment newspaper pencil production line :

1, state support environmental protection industry

2, cost less than wooden pencils

3, performance was better than wooden pencils

4, the production process is simple

Introduction of Hot selling recycled paper pencil making equipment newspaper pencil production line :

the latest generation of series of paper pencil equipment, with the most advanced level,

improve and streamline the production process, automatic coating film shot machine, fully

automatic coating cycle, a computer for 8 hours can pen 18000 - 20000 volumes, provincial

working hours, the volume bar effect; no pollution, no huge investment in the end,

non-timber can not produce the history of pencils, wooden pencils factory investment

business and the ideal equipment for changing products .

production process:

paper cutter → rolling machine →drying → cutting and polishing → shrinking machine→

eraser

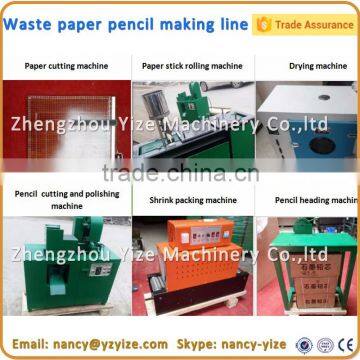

Mahchine details of Hot selling recycled paper pencil making equipment newspaper pencil production line :

1. Paper cutting machine :

This machine is to cut the 18*56cm newspapers into pieces for further processing.

Max thickness of paper: 40mm

Max length of paper: 750mm

Weight: 100kg

Dimension: 1200*1000*900

2. Pencil stick rolling machine

This machine used to roll the pieces of newspaper into pencil sticks.

When rolling, you need glue.

Productivity: 80pcs/min

Motor: 220V 1.5kw

Weight: 140kg

Dimension: 1900*450*1300mm

3. Pencil sticks drying machine :

This machine is to dry the pencil sticks.

Productivity: 4000pcs/time

Motor: 220V  2.2kw

Weight: 70kg

Dimension: 760*550*680mm

4.Pencil cutting and polishing machine all in one machine

This machine used to cut and polish the dry pencil sticks

Capacity: 100pcs/min

Motor: 220V 1.7kw

Total weight: 130kg

Dimension: 900*450*1150mm

5. Shrink packing machine :

This machine used to pack the pencils in colorful plastic papers.

Capacity: 100pcs/min

Power:220v 1.5kw

Weight: 60 kg

Dimension: 1160*430*780mm

6. Pencil heading machine

This machine is to head the eraser.

Parameters

Capacity: 30 pieces/min

Weight: 10 kg

Dimension: 600*450*1000mm

7. Packing pictures:

8. Finished product
