Home > Products > Construction Machinery > Discharging unobstructed Electric tunnel shotcrete machine for mine concrete machine
Discharging unobstructed Electric tunnel shotcrete machine for mine concrete machine
- 500 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
wall cement spray plaster machine / wall spray plastering machine / rendering machine
-
auto cement rendering machine for sale
-
automatic rendering machine / wall rendering machine price
-
Factory directly supply auto wall plastering machine price
-
Mortar plastering machine for wall / wall plastering machine
-
Automatic wall cement plastering machine for wall render machine
Product Details
| Condition | New | Max. Conveying Distance | Horizontal:200m Vertical: 20m | |
| Max Aggregate Size | 20mm | Hose Inner Diameter | 51 mm | |
| Air Consumption | 7-8m3/min | Place of Origin | Henan, China | |
| Brand Name | YZ | Model Number | YZPJ-5 | |
| Voltage | 380V | Power(W) | 5.5KW | |
| Dimension(L*W*H) | 1.5*0.75*1.2 m | Weight | 600kg | |
| Certification | ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Discharging unobstructed Electric tunnel shotcrete machine for mine concrete machine
Small wet shotcrete machine/ shotcrete machine for sale/ shotcrete machine price
Discharging unobstructed Electric tunnel shotcrete machine for mine concrete machine introduction:
Shot Crete machines are divided into two major categories, that is explosion-proof type and non-explosion-proof type, both are based on straight-through-type rotor blanking under the rotor material, can take full advantage of the role of air force jet to ensure the smooth discharge. The rotor chamber and the discharge elbow materials are made of flexible rubber abrasion. When working, under the action of the pressure can be rushed to the self-cleaning effect, reducing adhesive material and congestion, greatly reduced the maintenance workload of the machine
The machines set the advantages of wet and dry spray machine at home and abroad in one, it is easy to operate, sprays evenly, and has the advantage of a low dust, low rebound.
It optimized the working environment, and improved the quality of spray layer.
Discharging unobstructed Electric tunnel shotcrete machine for mine concrete machine technical parameters:
model | Capacity (m3/h) | Air consumption (M3/h( | Conveying distance (m) | Motor power (kw) | Weight (kg) |
YZPJ-5 | 5 | 7-8 | 200m- 40m⊥ | 5.5 | 600 |
YZPJ-6 | 6-7 | 10-15 | 200m- 40m⊥ | 7.5 | 800 |
YZPJ-7 | 7-8 | 10-15 | 200m- 40m⊥ | 7.5 | 800 |
YZPJ-9 | 8-9 | 10-12 | 200m- 40m⊥ | 5.5 | 1350 |
Discharging unobstructed Electric tunnel shotcrete machine for mine concrete machine spare parts list:
Name of parts | Using area m³or time |
Nozzle | 60-70 |
Rotor | half or one year |
Sealing plate | 200 |
Rotor disk | 1000 |
Rubber elbow | 1000 |
Cone casing pipe | 1000 |
Rubber chamber | 100 |
Pipes 15 meters |

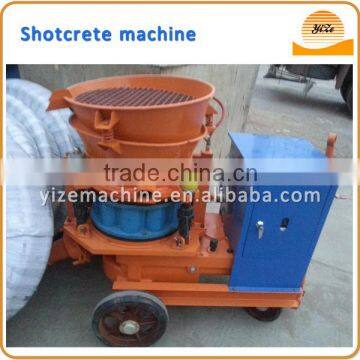

Pictures of Discharging unobstructed Electric tunnel shotcrete machine for mine concrete machine:
Sparts of Discharging unobstructed Electric tunnel shotcrete machine for mine concrete machine:
