Home > Products > HAND TOOL,TORQUE WRENCH & SUCTION CUP > TWD-03135 Digital 3/8" Square Handle Fix Head Type Air Torque Wrench
TWD-03135 Digital 3/8" Square Handle Fix Head Type Air Torque Wrench
- ANY PORT IN TAIWAN
 - T/T

You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | SUMAKE or OEM Brand | |
| Model Number | TWD-03135 |
Product Description
TWD-03135 Digital 3/8" Square Handle Fix Head Type Air Torque Wrench
3/8" Digital Electronic Torque Wrench is built to provide the precise torque for today's vehicles...accurate to +/–2.5%
Sumake Digital Torque Wrench measures more accurately than mechanical torque wrenches, and warns you both visually and audibly, so you can achieve the precise torque required for work on current vehicles.

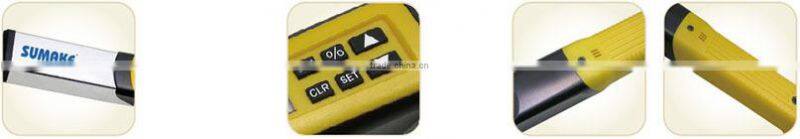

Quick change
Press to release Shift direction Alarm LED Large LCD

Square shape Choice button Buzzer Ergonomics handle
(One-button One-function) (Beep tone)

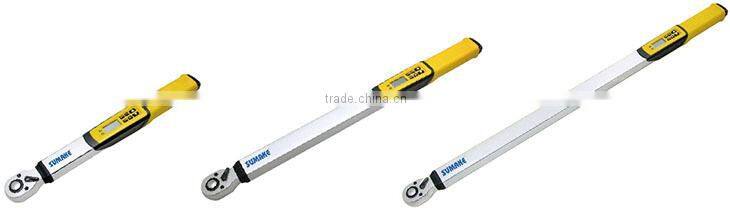

TWD-03135 3/8" Dr. TWD-03200 3/8" Dr. TWD-04340 1/2" Dr.
TWD-04135 1/2" Dr. TWD-04200 1/2" Dr. Torque: 34-340Nm
Torque: 10-135Nm Torque: 20-200Nm
Model No.  | Square Drive (inch)  | Max. Torque  | Overall Length  | Net Weight  | Driver  | ||||
Nm  | ft-lb  | in-lb  | inch  | mm  | lbs  | kgs  | |||
TWD-03135  | 3/8  | 10-135  | 7.4-99.6  | 89-1195  | 15.74  | 400  | 2.6  | 1.2  | 45 teeth, 8 action  |
TWD-04135  | 1/2  | 10-135  | 7.4-99.6  | 89-1195  | 15.74  | 400  | 2.6  | 1.2  | 45 teeth, 8 action  |
TWD-03200  | 3/8  | 20-200  | 14.8-147  | 178-1780  | 22.44  | 570  | 3.5  | 1.6  | 45 teeth, 8 action  |
TWD-04200  | 1/2  | 20-200  | 14.8-147  | 178-1780  | 22.44  | 570  | 3.5  | 1.6  | 45 teeth, 8 action  |
TWD-04340  | 1/2  | 34-340  | 25-250.9  | 303-3010  | 30.31  | 770  | 4.4  | 2.0  | 45 teeth, 8 action  |
Two Directions : Clockwise / Anticlockwise
Battery : 9V (Alkaline) x 1pc
Operate Temperature : 5 ~ 42°C, 40 ~ 107°F
Store Temperature : -20 ~ 50°C, -4 ~ 120°F
Power : Auto shutdown after 90 seconds idle

Features:
♦ Designed for simple and precise measurement of industrial, automotive, aerospace and many other applications.
 ♦  A simple to use digital torque wrench with Built on easy-to-read Digital LCD in any of 3 torque units, Nm, Ft-lbs, In-lbs.
 ♦  A square and round handle with non-slip rubber provides a comfortable and ergonomic grip.
 ♦  Two tones of a loud buzzer are easily recognized during work.
 ♦  Accuracy of CW±2.5%(+1SLD) and CCW±3%(+1SLD).
 ♦  Includes Black blow molded case .
