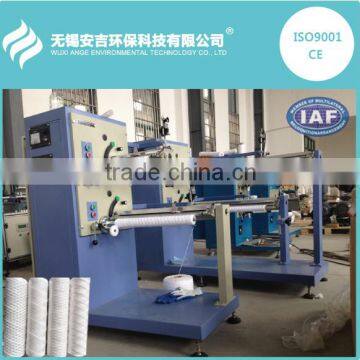

Wuxi ANGE Supply 5 micron 10"&20" 30"&40" polypropylene yarn machine
- Shanghai
- T/T
You May Like
-
High quality PP yarn filter cartridge pp string wound filter machine
-
CE Approved PP String Wound Filter Cartrige Making Machine
-
Yarn Winding Machine Full Automatic from wuxi ANGE
-
Highly Automatic PP String Wound Filter cartridge Making Machine, 10''20''30''40''
-
WUXI ANGE PP String Wound Filter Cartridge Making Machine
-
PP Yarn Winding Filter Cartridge Mking Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Wuxi ANGE | |
| Model Number | Adjustable Winding Speed | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Introduction
We provide 2 different kinds of polypropylene yarn winding filter cartridge making machine. Following are their differences:
Name | Description | Features |
Adjustable Winding Speed type | 1. Change the winding speed simply by a spin button
2. Change the filter pattern by changing the gears and belts, which takes around 20 minutes | *Easy to operate *Save power *Easy to maintain *Easy to change winding speed |
Auto type | 1. Change the winding speed simply by a spin button
2. Change the pattern by entering the gear rate into the control panel | *Easy to operate *Save power *Easy to maintain *Easy to change winding speed *Easy to change pattern |
The two kinds of machines can auto stop when filter cartridge is finished. | ||
Parameters
Machine Size | 10’’ | 20’’ | 30’’ | 40’’ | … |
Power | 370w | 370w | 370w | 370w | … |
Output(pcs/hour) | 80-90 | 70-80 | 30-40 | 20-30 | … |
Speed(r/min) | 14400 | 1440 0 | 14400 | 14400 | … |
PP core length(mm) | 248 | 498 | 748 | 998 | … |
252 | 506 | 760 | 1014 | … | |
Filter cartridge length(mm) | 250 | 500 | 750 | 1000 | … |
254 | 508 | 762 | 1016 | … | |
Winding speed | 40-280m/min | ||||
Max winding diameter | 200mm(slightly above 200mm is available, free to customize) | ||||
Motor Speed | 2800r/min | ||||
Frame Material | Polypropylene, stainless steel etc. | ||||
Raw Material | PP yarn, cotton etc. | ||||
Filter precision | 0.5,1,5,10,20,50,100µm...etc. | ||||
Default Micro: 5 Micro Voltage: Three-phase voltage is 380v/50hz. The single voltage is 220v/50hz.(other voltage is available) Install: Our engineer will teach you how to install and operate in our factory. polypropylene yarn winding filter cartridge making machine can be customized to produce two or more different filters at the same time. Kindly please contact us for more information. | |||||
Free parts list
Free parts | |
Small Spring | 10pcs |
Guide Grooves | 10pcs |
Guide block | 3pcs |
Large spring | 10pcs |
Belt | 2pcs |
Micro gears | 2sets for every head |
After-sale Services
One-year warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.
If you have any questions, our engineers are always available to give a comprehensive answer with their 30-year experience in filter making industry.
Packaging & Shipping
Every part is packed by plastic film, and all are packed in wooden case.
Shanghai Port is our usual choice, but other ports are available due to your requirements.
Company Profile
Wuxi ANGE Environmental Technology Company Limited is a professional manufacturer specializing in full automatic pp melt blown filter production lines, pp string wound filter making machine, CTO machine and pp non-woven melt blown fabric making machine with 20 years' experience in machine design and filter making. It is our supreme honor to have clients in our factory to see our amazing machines working by themselves. Our clients are full of the world: Japan, Korea, Russia, Malaysia, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
