High product efficiency multi heads cnc wood carving router machine,multi spindles cnc relief engraving router CC-M1530BH4
- 500 Set / Sets per Month
- QINGDAO or TIANJIN
- Credit Card PayPal
You May Like
-
multi heads woodworking acrylic cnc wood router CC-M1530BH4
-
Woodworking Machinery Multi Spindle CNC Router 3 Axis
-
Multi Spindle CNC Router for Wooworking with Small Work Piece
-
High Efficiency 4/8 spindles CNC Router/ Multi Spindles CNC Router Wood Router Wood cutting machine
-
Multi Spindle/Head CNC Wood Engraving Router Machine
-
CNC Router Machine Multispindle CNC Cutter
Product Details
Condition | New | CNC or Not | CNC | |
Place of Origin | Shandong, China | Brand Name | CHENCAN | |
Model Number | CC-M1530BH4 | Voltage | AC380V/ optional AC220V | |
Power(W) | 12kw | Weight | 1500kg | |
Certification | CE,ISO | Warranty | 12 months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

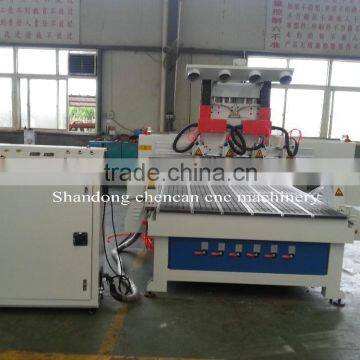

High product efficiency multi heads cnc wood carving router machine
CC-M1530BH4
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Materials: kinds of wood,mdf, hdf ,pvc, acrylic, soft metal ,aluminium composit ,copper ,aluminium sheet and so on .
Technical parameter:
Description | Parameter |
X,Y Working Area | 1500*3000mm |
Z Working Area | 200mm |
Table Size | 2040*3040mm |
Resolution | 0.01mm |
Lathe Structure | Seamless welded steel structure |
X,Y Structure | Rack and pinion transmission, Hiwin square guide rails |
Z Structure | Germany-made rolling ball-screw, Hiwin square guide rails |
Max. Idling Speed | 35m/min |
Spindle | 2.2 KW per spindles |
Spindle Speed | 0-24000r/min, variable speed |
Inverter | Fuling 2.2 KW |
Working Voltage | AC380V/50Hz |
Driver | YAKO Driver |
Working Mode | stepper motor |
Command | G code (HPGL,U00,mmg,plt) |
Operating System | weihong handle NK105 with USB interface |
Diameter of Cutter | φ3.175-φ12.7 |
Cooling Mode | Water-cooling |
Dust-collect Function | Yes |
Work-Holding | By clamp |
Net Weight | 1600KG |
Software | Type 3, ArtCAM, Wentai |
Features:
1. It is convenient for the user to fix the materials by clamp and achieve scale production.
2.Four heads wood carving cnc router is welded with seamless steel structure and is processed by high temperature tempering treatment and vibrating stress relief (VSR) to relief residual stress. The stability is excellent, not easy to be deformed.
3.Four heads wood working cnc router adopts gantry movement, it can process any kinds of materials freely.
4. X and Y axes adopt rack gear and Hiwin square guiding rail transmission, faster working, higher efficiency and low cost.
5. Z axis adopts imported ball-screw of Germany and imported linear orbit, stable working, high precision and long life time.
6. Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
7. Has the function of re-carving after break point and power failure.
8. Has the function of forecasting process time.
9. Adopting advanced weihong handle system, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
10. Perfect oil-inject system of the wood working cnc router makes maintenance much easier.
11. Has duct collector. It will clean up the carving residuum and make the operations tidier and more convenient.
12. Adopting water cooling system, it can provide good cooling effect when carving flinty materials.
Parts:
1.2.2 kw water cooling spindle
2.weihong handle controller and control box
3.Taiwan square orbit
Samples:
strong plywood pacakge for export;
we transport the cnc router machine to you by sea or other way we negociate .
1. Payment: T/T,L/C; at least30% deposits, 70% balance before delivery
2. MOQ: 1 set
3. Warranty : 1 year
4. Package: wooden case/iron tray ,according to the size of the machine package.
duct time : 30workdays
Q1: Installation and Debugging
Customers can get detailed operation manual and instruction video. We will make sure that customers can operate machines skillfully.
Q2: Training
Customers can get free technical training. Mainly training are as follow:
- software operation
- machine operation and maintenance
- Instruction of technical parameters, as well as their setting ranges
- solutions for common problems
Q3: Equipment Maintenance
One year free maintenance, lifelong caring
Free technical consultant and software updating
Customer Service responding in 2 hours
Continuous support with software and hardware after free maintenance
Q4: Guarantee
The guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
Contact person: grace chen
Skype:graceqiqi3
Whatsapp/viber:+86 15166985775
Company name : Shandong Chencan Machinery Incorporated Company
Add :west mingjia road ,qihe economy development zone,shandong province
(Near jinan city ,from the factory to jinan airport ,30 minutes driving)
