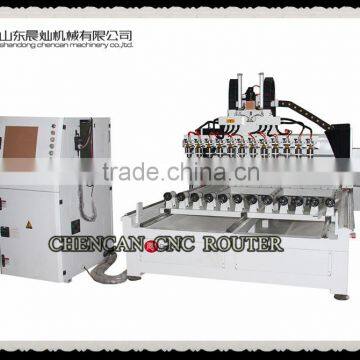

4 Axis Eight Heads Wood Engraving CNC Router Machine with Cheap Price
- 100 Set / Sets per Month
- Qingdao or Taijin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High product efficiency multi heads cnc wood carving router machine,multi spindles cnc relief engraving router CC-M1530BH4
-
multi heads woodworking acrylic cnc wood router CC-M1530BH4
-
Woodworking Machinery Multi Spindle CNC Router 3 Axis
-
Multi Spindle CNC Router for Wooworking with Small Work Piece
-
High Efficiency 4/8 spindles CNC Router/ Multi Spindles CNC Router Wood Router Wood cutting machine
-
Multi Spindle/Head CNC Wood Engraving Router Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Chencan cheap 4 axis cnc machine | |
| Model Number | CC-MS2030K8 cheap 4 axis cnc machine | Voltage | 380V 3 phase, 220v for optional | |
| Power(W) | 2.2 Kw | Dimension(L*W*H) | 3050*2000*1800mm | |
| Weight | 2000KS | Certification | CE, ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
4 Axis Eight Heads Wood Engraving CNC Router Machine with Cheap Price CC-MS2030K8
Description:
1. Whole machine is welded with thick seamless steel structure; Processed by high temperature tempering treatment and vibration stress relief (VSR) to reduce residual stress; Ensure that the stability is excellent, not easy to be deformed.
2. Eight spindle cnc wood carving machine can work at the seam time, which can work together within the seam time. So the machine save working time cost and investment for you and brings you with high efficiency.
3. Three axes adopt Taiwan imported HIWIN big square guiding rail; X and Y axes adopt rack and pinion transmission,fast working, high efficiency and low cost. Z axis adopts Germany imported ball screw,with high precision and long life time.
4. DSP control system which with USB connection operated with the handle, convenient operation.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
6. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
7. Perfect oil-injection system makes the maintenance more convenient.
Applicable Materials:
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.
PRODUCT PARAMETER
| Model | CC-M1325AH2 | CC-M1530AH4 | CC-MS2030BH8 |
| Working size | 1300*2500*200mm | 1500*3000*200mm | 2000*3000*200mm |
| Table Size | 1440*3040mm | 1640*3540mm | 2140*3540mm |
| Spindle Number | 2 pcs | 4 pcs | 8 pcs |
| XYZ positio precision | +/-0.005mm | +/-0.005mm | +/-0.005mm |
| Table surface | T-slot & Vacuum Table | T-slot & Vacuum Table | T-slot Table |
| Frame | Welded structure | Welded structure | Welded structure |
| Max. Idling Speed | 35m/min | 35m/min | 35m/min |
| Spindle Motor Power | 3.5KW air cooling spindle | 2.2Kw water air cooling spindle | 2.2kw water cooling spindle |
| Spindle speed | 0-18000RPM | 0-24000RPM | 0-24000RPM |
| Working Mode | Steeper | Steeper | Servo |
| Motor | Big stepper motor | Big stepper motor | Japan YASKAWA servo motor |
| Drive | 2811 big YAKO drive | 2811 big YAKO drive | Japan YASKAWA servo drive |
| Inverter | Fuling 3.7kw | Fuling 3.7kw | Fuling 3.7kw |
| Operating System | DSP control system | DSP control system | DSP control system |
| Interface | USB | USB | USB |
| Vacuum system | Yes, with 5.5kw pump | Yes, with 5.5kw pump | NO |
| Work-holding | By Suction | By Suction | By Clamp |
| Lathe Structure | Seamless welded steel structure | Seamless welded steel structure | Seamless welded steel structure |
| X,Y Structure | Rack and pinion transmission, | Rack and pinion transmission, | Rack and pinion transmission, |
| Z Structure | φ25mm Rolling Ball screw | φ25mm Rolling Ball screw | φ25mm Rolling Ball screw |
| Rails | Taiwn HIWIN 20 square rail | Taiwn HIWIN 20 square rail | Taiwn HIWIN 25 square rail |
| Working Voltage | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz |
| Command | G code,HPGL,U00,mmg,plt | Gcode,HPGL,U00,mmg,plt | G code,HPGL,U00,mmg,plt |
PRODUCT SHOW
Main parts:
Lathe body & Working Table
Rack & Pinion; Ball screw
Closed tank chain
Oil system & Vacuum pump
DSP Handle control system
Japan YASKAWA servo motors and drives
