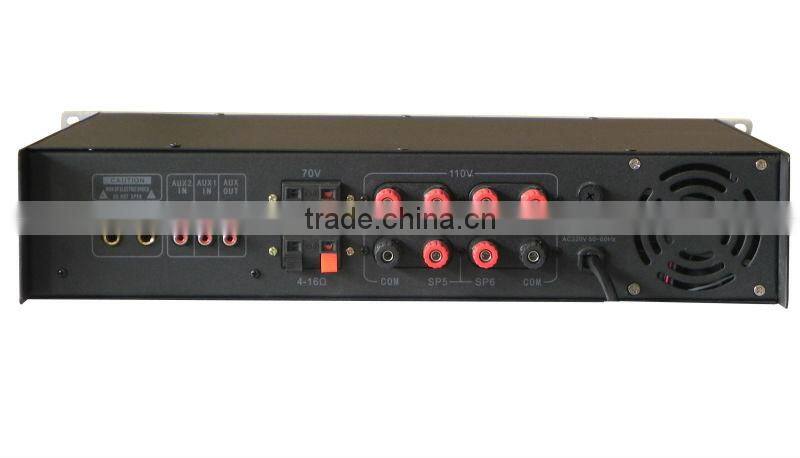

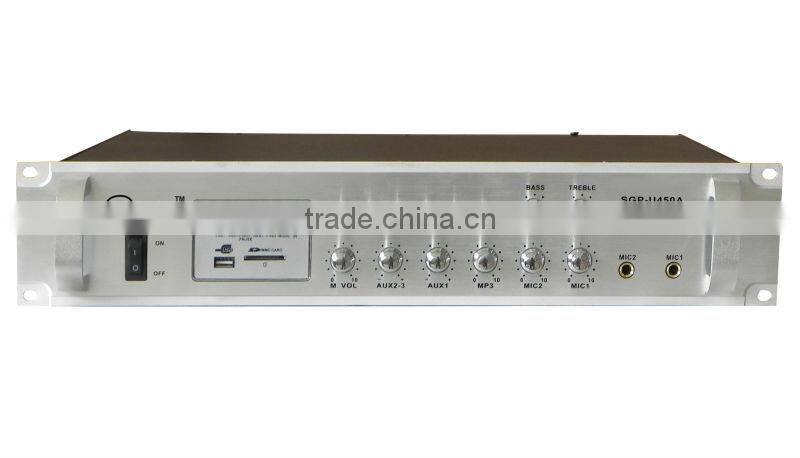

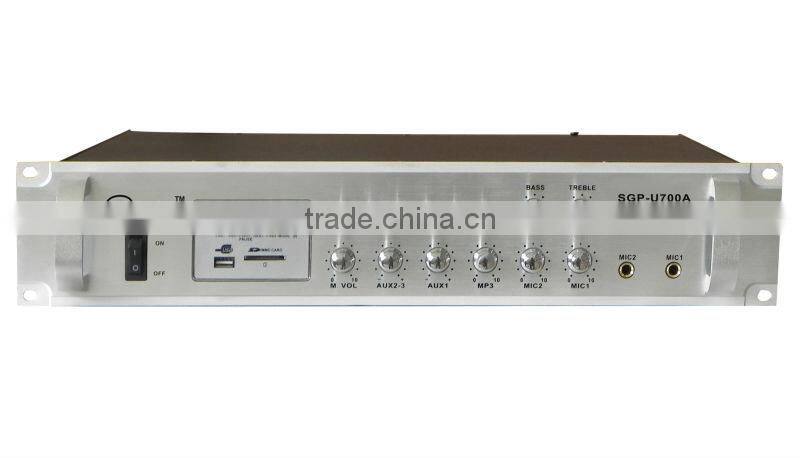

220W 2U Amplifier Audio With 6-Zone & MP3/FM Radio Antenna

FOB Price

US$ 50 - 110 / Piece

200 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Newmanhas
Model Number	SGP-U220A

1.Power:220Watts
2.Size:482*325*88mm
3.Output Mode:70V/100V/4-16ohm
4.N.W:11.5KG

Features:

2 MIC inputs , 3AUX input ,1AUX output,MIC1 has priority (mute function ).

Power outputs: 4-16 Ω,70V,100V,6 zones output.

Individual control for MIC and AUX input.

With MP3 player,support MP3 and WMA.USB,SD and FM.

Bass control, Treble control.

Protection for overload and short circuit.

Specifications:

Model	SGP-U160A	SGP-U220A	SGP-U320A	SGP-U450A	SGP-U550A	SGP-U700A
Rated Output Power	160W	220W	320W	450W	550W	700W
Power Outputs	4-16Ω,70V,100V
Frequency Response	40Hz-18KHz±0.5dB
S/n Ratio	MIC part>70dB,AUX part>76dB
Tone	Bass: ±10dB at 100Hz Treble: ±10dB at 100Hz
Power Requirements	AC 220V(50-60Hz)
Dimensions	482×325×88mm			482×370×88mm
Weight	N.W:10.0Kg	N.W:11.5Kg	N.W:12..5Kg	N.W:16.0Kg	N.W:17.0Kg	N.W:18.0Kg
Packing Size	52×44×18CM			53×48.2×18CM

Note

1)AC220(50Hz-60Hz)

2)Don't put the vents to avoid emission effect.

3)To avoid unnecessary load circuit.

4)When play MP3,If MIC and circuit are not used,Pls put off the knob.

5)When the machine is abnormal, Non-professional persons,Do not open and

maintain It, to avoid electric shock accidents.
