Home > Products > Semi-Automatic Case Making Machine > FM-700 Automatic Calendar Cover Making Machine
FM-700 Automatic Calendar Cover Making Machine
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Case | Packaging Material | Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V | Power | 9.5KW | |
| Place of Origin | Zhejiang, China | Brand Name | KEQIANG | |
| Model Number | FM-700 | Weight | 2500kg | |
| Dimension(L*W*H) | 6800*1500*1500mm | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Video Link: /en/VideoDetail.aspx?Id=15
Book Case Making
1.Imported hydraulic drive system
2.Position correcting device
3.Board is fed by hand

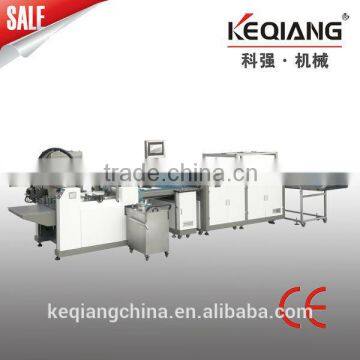

FM-700 Automatic Calendar Cover Making Machine
Semi-automatic machine for case making, lining and mounting, suitable for the production of binders, book covers, calendars and other paper over board items. Its user-friendly and compact design, together with the ease of operation and set up, makes this machine suitable for all production requirments.
The machine is composed of:
Sheet Feeder:
-Automatic lifting table.
-Pneumatically controlled feeding head lifts the sheet from the back.
Gluer:
-Top-surface gluing unit.
-Suitable for hot animal glue and for PVA glue.
-Vacuum transport-belt.
-It allows gluing all kinds of covering materials.
Boarder Feeder:
-Board is fed by hand.
-Has registerd guides for accurate board positioining.
Wrapper:
-It turns in the four sides of the wrapping material.
-Automatically tucks the corners with an innovative precision device.
-High power nip-roller pressing unit.
-Ensures high and constant quality unit.
Delivery Tray:
-It allows non-stop unloading.
Main Specification
| Model | FM-700 |
| Maximum Size | 450mm×720mm |
| Minimum Size | 130mm×190mm |
| Board Thickness | 1.0-3.0mm |
| Paper Weight | 100-200g |
| Maximum Speed | 10-25picecs/min |
| Power Supply | 9.5KW |
| Dimension(L×W×H) | 6800×1500×1500mm |
| Machine Weight | 2500kg |
| Boards Amount | 1-4Pieces |
| Minimum Spine Width | 8mm |
