Ellsen Made Metal Straightening Machinery Machine
US$ 1,500 - 2,500
/ Set
1 Set(Min. Order)
- Qingdao Shanghai Tianjin Ningbo etc.As your demands
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ellsen Harmonica Tube Straightening and Cutting Machine
-
High Efficiency Stirrups Straightening and Cutting Machine
-
Metal Bar Straightening Tools With Good After-sales Service
-
Gt4-12 Stainless Steel Wire Straightening Machine
-
Straightening Wire Machinery and Cutting Machinery 5mm 6mm 8mm 12mm
-
10mm Rebar Straightening and Cutting Machine Automatic
Product Details
| Condition | New | Type | Other, Straightener & Cutter | |
| Use | Other, Steel process factroy,Construction building,Road and Bridge constrcuti | Place of Origin | Henan, China | |
| Brand Name | Ellsen | Model Number | GT4-10 , GT4-12 ,GT6-14 | |
| Voltage | 220~440V,50/60HZ,Single or double phase | Power(W) | 13KW | |
| Dimension(L*W*H) | 2100x800x1100 mm | Weight | 140 ~ 2000 KGS | |
| Certification | CE,GL,ISO,SGS | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Ellsen made metal straightening machinery machine
Product Overviews

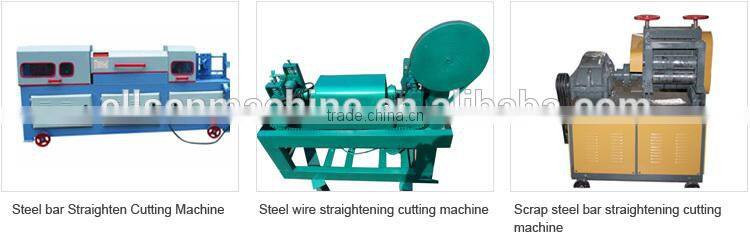

Exhibition of metal straightening machinery machine
Product Description
Brief introduction of metal straightening machinery machine
| Brief description | Metal straightening machinery machine is used to straightening galvanized wire or rebar,and then cut it into the needed length.It can do a prepare work for the wire mesh welding machine.So it is widely accepted to the factory who is dealing wire wires and wire mesh.Also widely used in construction area. |
| Advantage &Feature | 1.Different lengths and numbers are remembered by the machine; 2.Hydraulic cut off, high accuracy but low noise; 3.Covering Less Space,convenient to move and install ; 5.Alter number and length without shutting; |

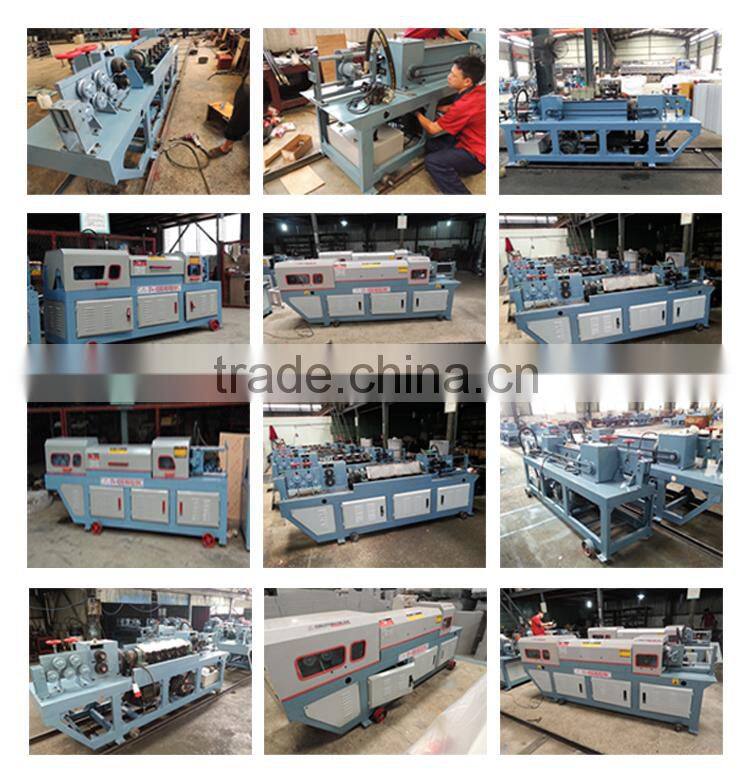

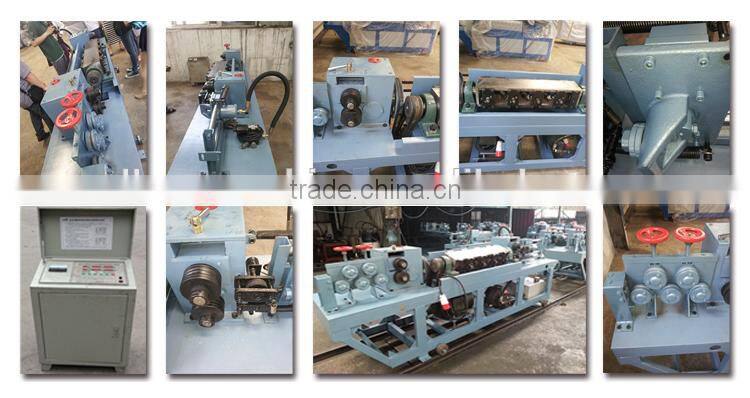

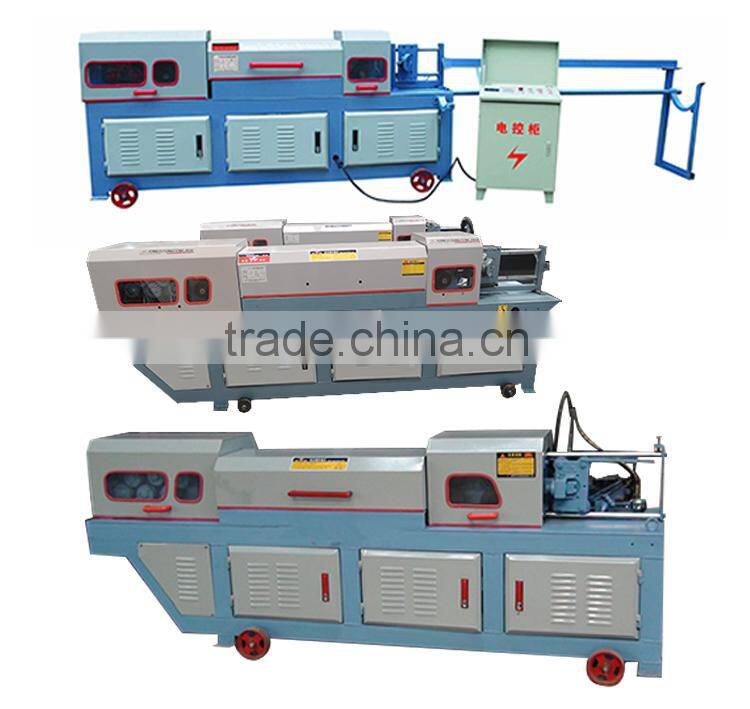

Product show of metal straightening machinery machine

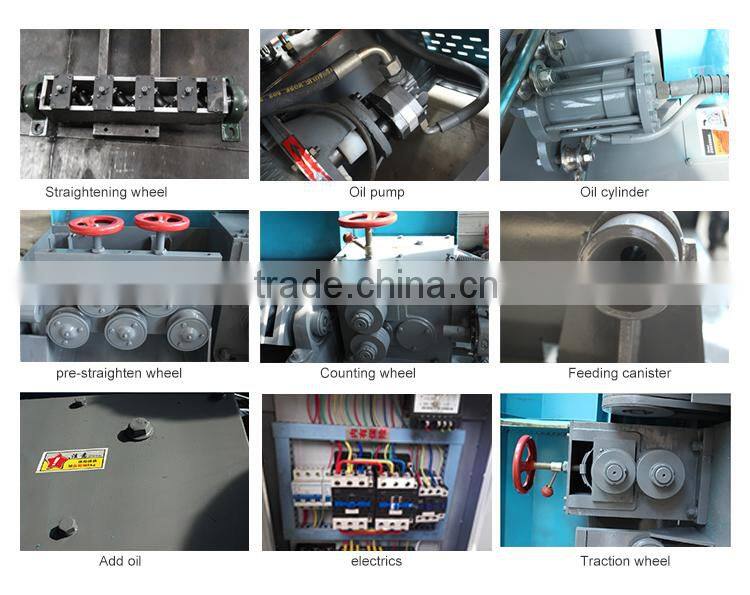

Product details of metal straightening machinery machine
Technical Parameter
Technical parameter of metal straightening machinery machine
| Technical parameter of metal straightening machinery machine | |||
| Model | GT4-10 | GT4-12 | GT6-14 |
| Straightening Dimension | Φ4-Φ10mm | Φ4-Φ12mm | Φ6-Φ14mm |
| Wire Traction Speed | 25-30m/min | 45m/min | 55m/min |
| Wire Cut Lengths | 100-2500mm(can add) | 800-9000mm(can add) | 800-8000mm(can add) |
| Cutting Length Error | 0 | ±1mm | ±15mm |
| Wire Straightening Degrees | ±2mm/m | ±2mm/m | ±2mm/m |
| Traction Motor | 7.5KW | 2.2KW-6P | 4KW-6p |
| Straightening Motor | 7.5KW-4P | 11KW-4P | |
| Cutting Motor | 4KW-4P | 4KW/5.5kw-4p | |
| Voltage | 220V/380V/415V/440V,50/60HZ,single or double or three phase | ||
| Whole Weight | 140kg | 1300kg | 2000kg |
| Overall Dimension | 2250x450x1000mm | 2100x800x1100mm | 2700×800×1200mm |
| Technical parameter of metal straightening machinery machine | ||||
| Model | GT1-3 | GT2-5 | GT3-6 | GT4-8 |
| Straightening Dimension | Φ1-Φ3mm | Φ2-Φ5mm | Φ3-Φ6mm | Φ4-Φ8mm |
| Wire Traction Speed | 25-30m/min | 25-40m/min | ||
| Wire Cut Lengths | 100-3000mm(can add) | 100-3000mm(can add) | ||
| Cutting Length Error | 0 | 0 | 0 | 0 |
| Straightening Motor | 1.5KW | 2.2KW | 3KW | |
| Cutting Motor | 0.75KW | 0.75KW | 1.1KW | |
| Voltage | 220V/380V/415V/440V,50/60HZ,single or double or three phase | |||
| Whole Weight | 150kg | 160kg | 160kg | 200kg |
| Overall Dimension | 1100*450*1100mm | 1400*550*1200mm | ||
Company Information
About us
Zhengzhou Ellsen is a manufacturer focousing on design, production,sales and sales service.
At present,our factory professional manufacture bar bending machine,bar cutting machine,stirrup bending machine,straightening cutting machine,wrought iron machine. Our products have been exported to USA, Australia, England, Russia,India, Pakistan, Bengal, Philippine, Australia, Malaysia, etc,more than100 countries and regions. Quality first and customer first is our forever aim. Every machine with high strict quality control and commissioning before delivery, any question about the machine use and maintenence in use will be attentioned within 24 hours. Welcome you to be our new client!

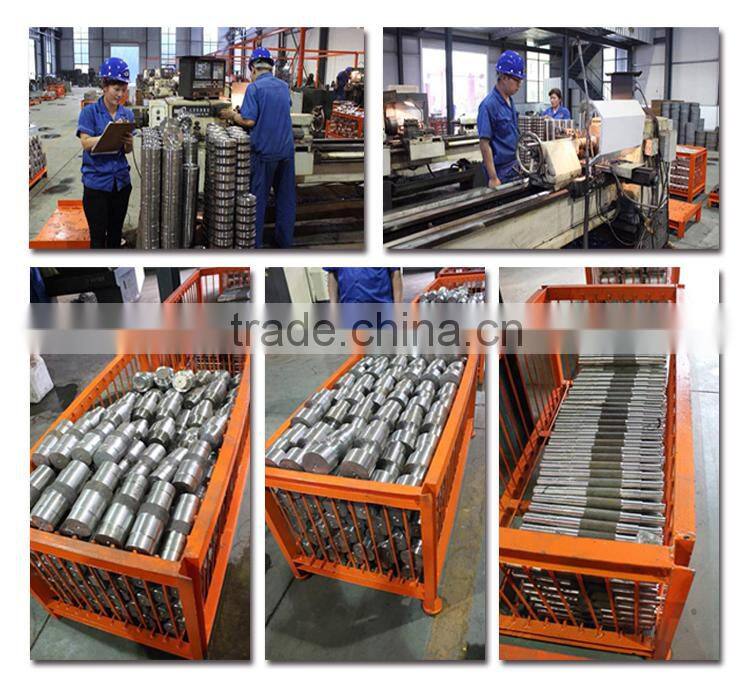

Our factory
Related Products

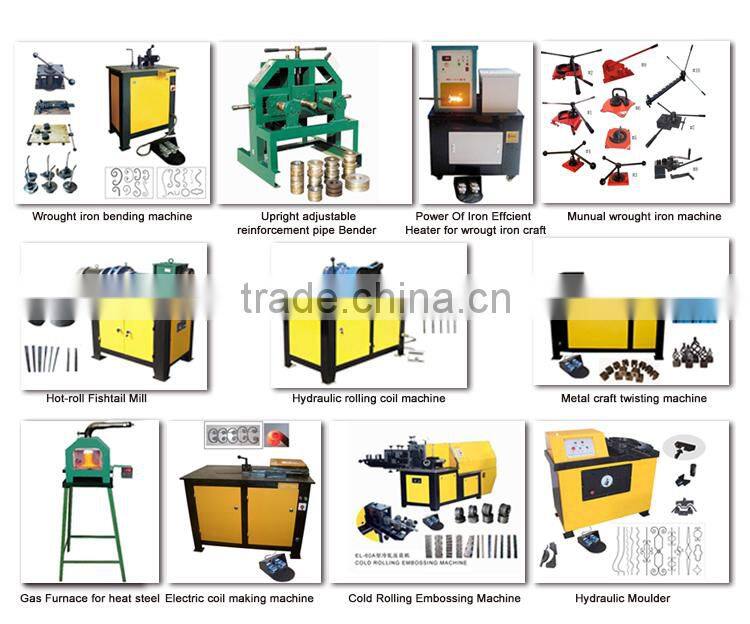

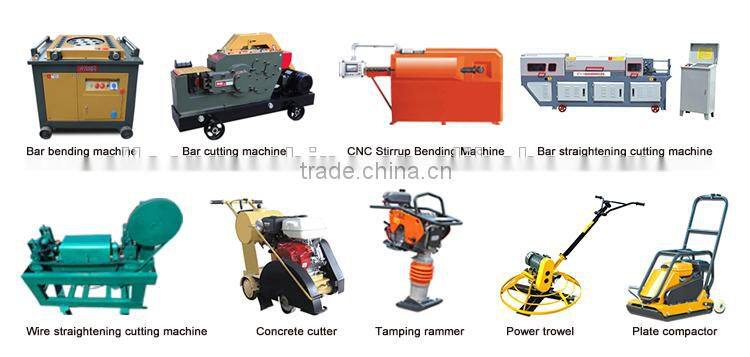

Our main products
