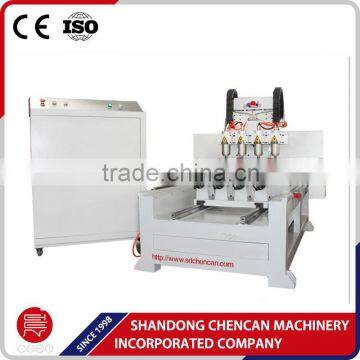

3D sculpture wood carving cnc router machine 4 axis CE approved
- 100 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
CHENCAN 3D Scanner 1325 4Axis 3D Cylinder CNC Carving/Engraving Machine/Machinery
-
CNC Router Machine.Wood.4 axis 2016 machine 3d cnc router cuting machine1cnc router machine.W2016
-
Nc studio Control 4Axis 3D Cylinder CNC Carving/Engraving Machine/Machinery Engraving Machine for Sale
-
CHENCAN 4Axis Foam/Wood Mold Carving CNC Machine CNC Router with 4th Rotary
-
Jinan 4 Axis/Syntec Controller/Drilling Hole 1325 CNC Router Wood Machine with Three Heads
-
CHENCAN Yaskawa 4Axis CNC EPS Plywood Molding Router CNC Machine with Big Rotary
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | ChenCan | |
| Model Number | CC-K1530-4 | Voltage | 380V | |
| Power(W) | 2.2kw | Dimension(L*W*H) | 2800mm*2100mm*2050mm | |
| Weight | 1200kg | Certification | CE,ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
3D sculpture wood carving cnc router machine 4 axis CE approvedery Customer !
1.Four axis machine, with 4 Rotaries and 4 spindles, which can work at the same time or independently, and every one's max effective working area is 300mm(diameter) by 1500mm(length).
2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
4.Has the 4th rotary which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/ Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure
7. Adopting advanced YASAKWA servo motor and NC studio control system .
1 Spindle motor: Domestic 2.2KW water-cooled spindle
2 Motor system:Leadshine servo motor
3 Operating system: NC studio system
4 Inverter: Fuling
5 Rail: Taiwan HIWIN square rails, lubrication-free lifelong
6 Beam: steel beam stiffeners
7 Cable: drag chain specific Cable, antijamming, antistatic; with high flexibility, longterm use will not break
8 Limit switch: Japan OMRON
9 Electrical components: Schneider and Siemens
10 Table: overall welding tempered aging treatment, strong and does not distort
1 | Table Working Area | 1250*1500 |
2 | Rotary Axis Working Area | 300mm*1500mm |
3 | Process precision | ±0.05mm |
4 | Reposition precision | ±0.025mm |
5 | Structure | Seamless steel structure |
4 | X,y,z structure | X, Y Helical rack and pinion, Z TBI ball screw |
5 | Idle speed | ≥32000mm/min |
6 | Working speed | ≥15000mm/min |
7 | Spindle rate | 3.5kw air cooling spindle |
8 | Spindle speed | 0-18000rpm/min |
9 | Motor type | Leadshine servo motor |
10 | Command code | G code, HPGL, U00, mmg, plt |
11 | Working voltage | AC220V/380V 3phase 50-60HZ |
12 | Operating system | Original NC Studio 4 axis |
13 | Inverter | INVT |
14 | Driver | Leadshine |
15 | Collect | ER25 |
16 | Diameter of cutter | 3.175-12.7mm |
17 | Table | Movable T-slot table |
18 | Guide rail | HIWIN square guide rail |
19 | Software | Powermill, UG |
20 | Oiling system | Manual oiling system |
1 Equipment installation
after the Equipment reached the user, the user must read the manual first and carry out installation,
Any need or questions. We will give you best service
2 Train
When we send the machine .we also send a CD for our customer that show them how to operate the machine and how to use the software .
If you still don’t know how to use this machine or the software . we can send our engineer to your country or you can send your engineers to our company and we train them .
the user can by call or email us any problems at any time.
3 After-sales service
One year warranty for machine maintenance,
manual to show customer how to maintain this machine
Forever service for problem-solving .
One set per fumigation-free wooden case
Welcome to visit our company
thank you for your interest in our CNC routers, please contact me directly as following:
Robert wang
Sales Manager
Shandong Chencan Machinery Incorporated Company
Address: West Mingjia Road, Qihe Economic Development Zone, Shandong, P.R.C.
Skype:robertwang417
Wechat:15269122861
Whatsapp/Viber:0086-15053485099
Tel:0534 8997233
Fax:0534 8997237
Mob:0086 15053485099
QQ:976840302
