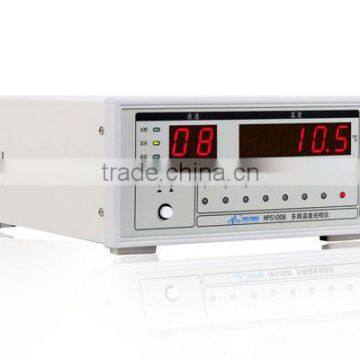

Easy operation multi-channel temperature inspecting meter

Model

HPS1008

HPS1016

HPS1024

HPS1032

Features

Displayer

0.8-inch high-definition LED display

Measurement function

Graduation Number

Thermocouple: K,T,B,E, J,N,R,S  Thermal Resistance:PT100,CU50

 Accuracy

0.2°C

Measurement Range

-190°C -1800°C

Resolution

0.1°C

Channel number

8

16

24

32(Extendable)

Measurement Mode

Fixed-point and inspection(the scanning number arbitrarily set)

Inspection Speed

Adjustable 1-10 file,fastest 16 channels per second

Correction Function

Error correct for each channel

Cold junction compensation

Accuracy 0.5°C

High-voltage protection

Maximum 400V ,AC/DC live line measurement(can up to 1200V)

Others

   broken thermocouple check function

Test signal

Thermocouple temperature probe

K

   -50.0 ℃ -1200.0 ℃(Accessory)

T

-50.0 ℃ -400.0 ℃

B

100.0 ℃ -1800.0 ℃

E

-50.0 ℃ -800.0 ℃

J

-50.0 ℃ -1000.0 ℃

N

-50.0 ℃ -1200.0 ℃

R

-50.0 ℃ -1700.0 ℃

S

-50.0 ℃ -1700.0 ℃

Thermal resistance temperature probe

PT100

-50.0 ℃ -400.0 ℃

Cu100

-50.0 ℃ -150.0 ℃

Cu50

-50.0 ℃ -150.0 ℃

Sorting and interfaces

Comparator

High/low beep Individual setting high/low value for each channel

Interface

RS-232C interface/ U-disc interface (option)/ Relay switch output(option)/GPIB(option)

General Specification

Working Environment

0°C -40°C ,≤90%RH

Power Supply

198V -242V(AC),47.5Hz -63Hz

Power  Consumption

≤30 VA

Dimension

270 mm(W) x 120 mm(H) x 335 mm(D)

Weight

2.5kg
