Home > Products > DC Resistance Meter > Digital Micro Ohm Meter /Milliohm Meter for contact resistance tester

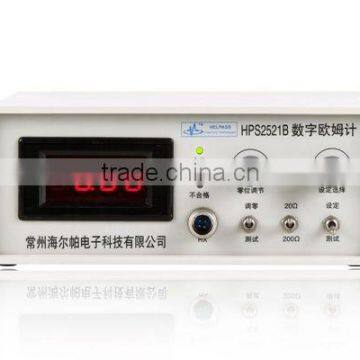

Digital Micro Ohm Meter /Milliohm Meter for contact resistance tester

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai Hangzhou Ningbo etc
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	HELPASS
Model Number	HPS2521B	Display Type	Digital Only
Measuring Range	0 -200Ω	Testing Voltage	220V
Accuracy Class	1%	Operating Temperature	0°C -40°C
Dimensions	205 x 80 x 230 mm

Product Description

Digital Micro Ohm Meter /Milliohm Meter for contact resistance tester

Feature

♦ Ideal instrument for production test line

♦ Easy operation, display intuitive

♦ Fast measurement speed, good stability

♦ Zero adjustment, calibration convenient

♦ Set comparison threshold easily

♦ Qualified, unqualified sound and light alarm

Application

♦ Several of switch contact resistance

♦ Enameled resistance,Small diameter coil resistance

♦ Contact resistance

♦ Relay line package and contact resistance

♦ Transformer, inductor, motor, deflection coil winding resistance

♦ Weld contact resistance

♦ Conductor resistance

Specification

Model	HPS2521B
Feature
Displayer Digits	4Digits
Measurement Function
Basic Accuracy	1%
Measurement Range	0 -200Ω
Resolution	20 Ω:10mΩ 200 Ω:100mΩ
Test Current	100mA
Measurement Speed(time/second)	Fast:50
Correction	Short-circuit Zero-Adjust for all range
General Specification
WorkingEnvironment	0°C -40°C ,≤90%RH
Power Consumption	≤15 VA

Accessories

♦ AC power cord

♦ User's manual

♦ Testing report

♦ Warranty card and certificate

Technical Service:

♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.

♦ We provide free technical training and offer free equipment maintenance technology.

♦ We can design special test programs and test fixture according to the customer.

Delivery

We will arrange to ship your order with 3-15 working days after payment confirmed

1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days

2.EMS:Reach most countries takes about 6-8 days
