Product Details
| Place of Origin | Jiangsu, China | Brand Name | HELPASS | |
| Model Number | HPS3520 |
Product Description

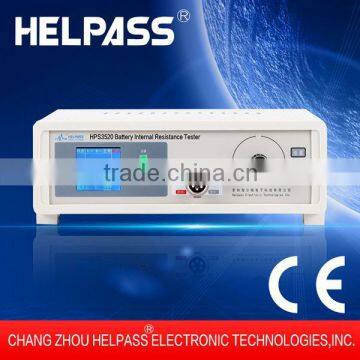

Battery Lab Equipment Internal Resistance Tester for Lithium Battery
High density SMD mounting technology, humanized operation interface and excellent measurement performance make it widely used in battery testing industry. Rich interface design, the instrument also provides PLC, RS232 and other interfaces, so that users can apply it to the automatic detection and automatic production line.
♦ Accurate measurement, fast speed, stable data
♦ Judge the battery positive and negative pole intelligently
♦ The internal resistance of the battery and the voltage are displayed on the same screen
♦ The internal resistance of the battery, voltage has independent upper and lower limits
♦ A set of multiple sorting and counting function
♦ Qualified and unqualified sound and light alarm
Specification:
Model | HPS3520 |
Features | |
Displayer | LCD display |
Display Digits | 4 digits |
Measurement Function | |
Measurement Parameters | AC resistance (R),DC voltage (V) |
Accuracy | Resistance:0.1%,Voltage:0.1% |
Measurement Speed(time/sec) | Slow:2 Medium:15 Fast:20 |
Range Mode | Auto,Keep |
Correction Function | Short-circuit reset for all range |
Display Method | Direct reading,Absolute deviation and Relative deviation display |
Other | Test line damage detection |
Test signal | |
Signal Source | AC 1kHz open-circuit voltage <20mV,measurement current:<150mA |
Sorting and interfaces | |
Beep | Short ,continuity and close |
Interface | RS-232C(option),Handler(option), Switch output(option) |
General Specification | |
Working Environment | 0°C -40°C ,≤90%RH |
Power Supply | 198V -242V(AC),47.5Hz -63Hz |
Power Consumption | ≤30 VA |
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS35001 Kelvin clamp test line
♦ HPS35002 Polymer test fixture
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
