High Brightness 6-9LM White 3528 SMD LED
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Model Number | WEJT28AM7-LIP01 | Chip Material | InGaN | |
| Emitting Color | Warm White | Luminous Intensity | 2640mcd | |
| Luminous Flux(lm) | 8 | Optical Attenuation(%) | 0.1 | |
| Power | 0.06W | Power Dissipation | 0.06 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 2750-3350k | |
| Operating Temperature(℃) | -25, 85 | Storage Temperature(℃) | -40, 100 | |
| Place of Origin | Guangdong, China | Brand Name | WEJ 3528 SMD LED | |
| Certification | CE |
Product Description
High brightness 6-9LM white 3528 SMD LED
Features of our 3528 smd led:
*Low power consumption
*Long life-solid state reliability
*Available on tape and reel
*RoHS compliant
*Emitted Color: White
*Viewing Angle:120
*99.99% pure Au gold wire

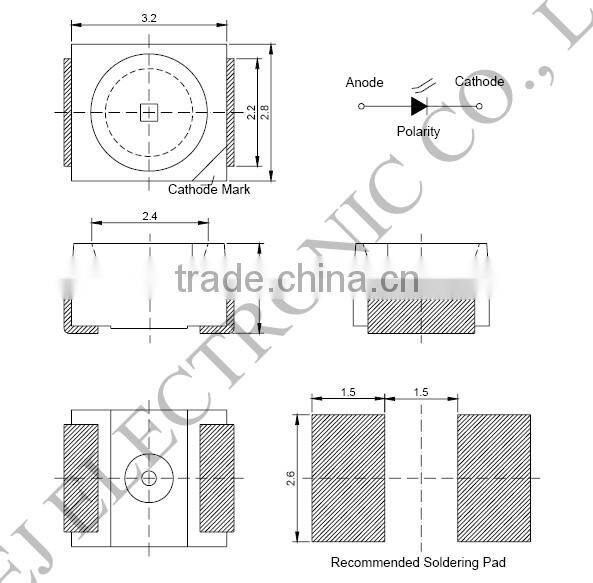

Mechanical Dimensions of 3528 smd led:
Note:
1.All dimensions are in millimeters (mm);
2.XX is +/-0.1mm, XXX is +/-0.05mm unless otherwise noted;
3.The device has a single mounting surface, the device must be mounted according to the specifications.
Bin Range of Chromaticity Coordinates Block of 3528 smd led:
Packaging Dimensions of 3528 led smd
WEJ Factory:
