60mA 0.2W 20-24LM 3 Chips Natural White 4000-4500K 5050 Smd Led
US$ 0.032 - 0.049
/ Piece
1000 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Model Number | WEJT50AN7-HRNP01 | Chip Material | InGaN | |
| Emitting Color | Natural White | Luminous Intensity | 7260mcd | |
| Luminous Flux(lm) | 22lm | Optical Attenuation(%) | 5 | |
| Power | Other, 0.2W | Power Dissipation | 200 | |
| Color Rendering Index(Ra) | 72 | Color Temperature | 4000-4500K | |
| Operating Temperature(℃) | -25, 85 | Storage Temperature(℃) | -40, 100 | |
| Place of Origin | Guangdong, China | Brand Name | WEJ | |
| Certification | CE |
Product Description
60mA 0.2W 20-24LM 3 chips Natural White 4000-4500K 5050 smd led
Product Description
Electrical/Optical Characteristics Ta=25°C
| Parameter | Condition | Min | Typ | Max | Unit |
Forward voltage | If=60mA | 2.8 | 3.0 | 3.4 | V |
Luminous flux | If=60mA | 20 | 22 | -- | LM |
| Chromaticity coordinate | If=60mA | -- | X:0.36, Y:0.36 | -- | -- |
| Color temperature | If=60mA | 3760 | -- | 4500 | K |
| Color rendering index | If=60mA | -- | 72 | -- | % |
| Reverse current | Vr=5V | -- | -- | 10 | uA |
Absolute Maximum Ratings at Ta=25 °C
| Parameter | Symbol | Value | Unit |
| Power disspation | Pd | 200 | mW |
| DC Forward current | If | 60 | mA |
| Peak Forward current | Ifp | 300 | mA |
| Reverse voltage | Vr | 5 | V |
| Electro-static-discharge(HBM) | ESD | 1000 | V |
| Operating Tempeature | Topr | -25 to +85 | °C |
| Storage Temperature | Tstg | -40 to +100 | °C |
| Lead solder termperature | Tsol | 260 °C for 5 sec | °C |

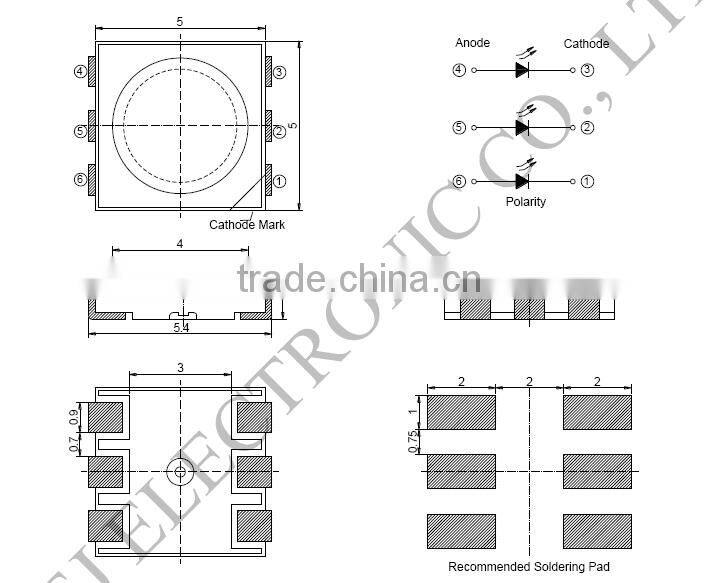

Package dimensions of 5050 SMD LED:

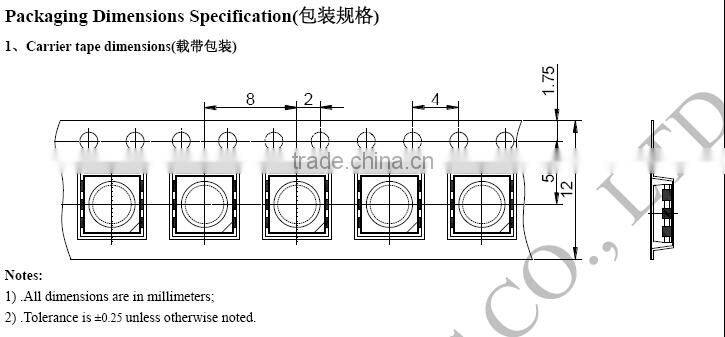

Packaging & Shipping

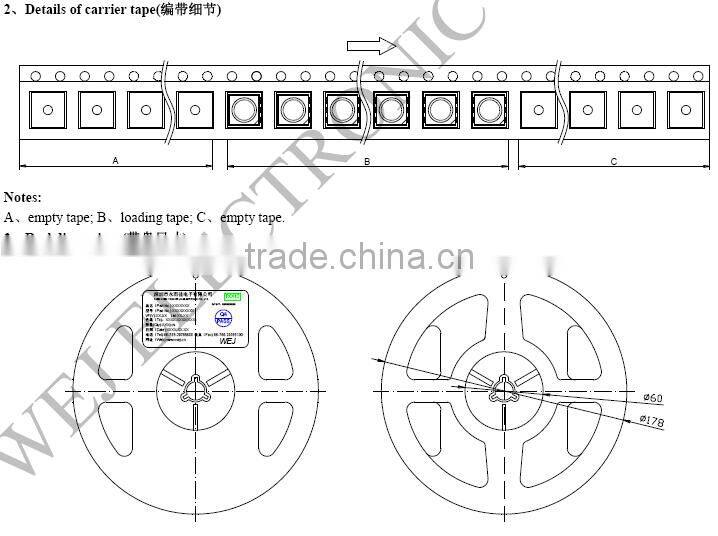

MPQ: 1000pcs per reel.
Our Services
WEJ Advantages:
1. Experienced R&D team
2. Professional production process
3. Free sample support
4. Short lead time: 2-3 working days for sample, 7-14 working days for mass order.
5. Customized will be welcomed
6. Small order will be acceptable
Company Information
Our team:
WEJ Production base:
Contact Us
- Shenzhen Yongerjia Industry Co., Ltd.
- Contact nameAlice Zhong Chat Now
- Phone86-755-29785600
- AddressYongerjia Industry Park, Yulv 6th Industrial Zone, Genyu Road, Guangming New District, Shenzhen, Guangdong
