4 Axis Atc Cnc Router DT4A1325
- Qingdao port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Auto Feeding Cnc Woodworking Machine DT1325
-
DT2030 CNC Router, High Quality Woodworking Cnc Router
-
DT2040 Woodworking Cnc Router, 2040 Wood Machine
-
Wood Furniture 4 Axis CNC Wood Carving Machine/ CNC Router 4 Axis DT4A1325
-
DT1325 Cnc Router, Cnc Router DT1325 for Furniture
-
Double Heads Cnc Router DT1925D
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | DragonTech | |
| Model Number | DT4A1325 | Voltage | 380V/3ph | |
| Power(W) | 14.5kw | Dimension(L*W*H) | 1300*2500*400mm*180 degree | |
| Weight | 2000KGS | Certification | CE | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
PLYWOODEN CASE
Product Description

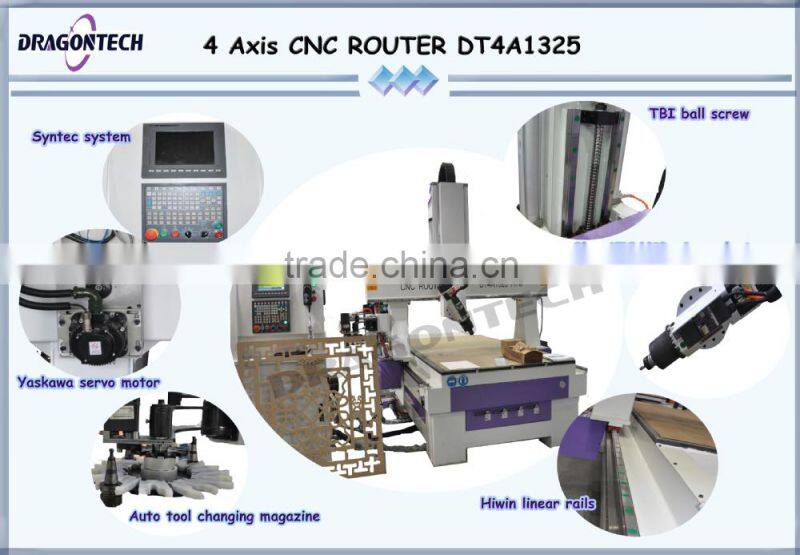

4 axis atc cnc router DT4A1325, 4-Axis Wood CNC Router/Wood working CNC Router with High Quality
Product description:
With strong, hard and reliable structure, the machine is fit for hard wood working, cutting and engraving for furniture, indoor decoration.

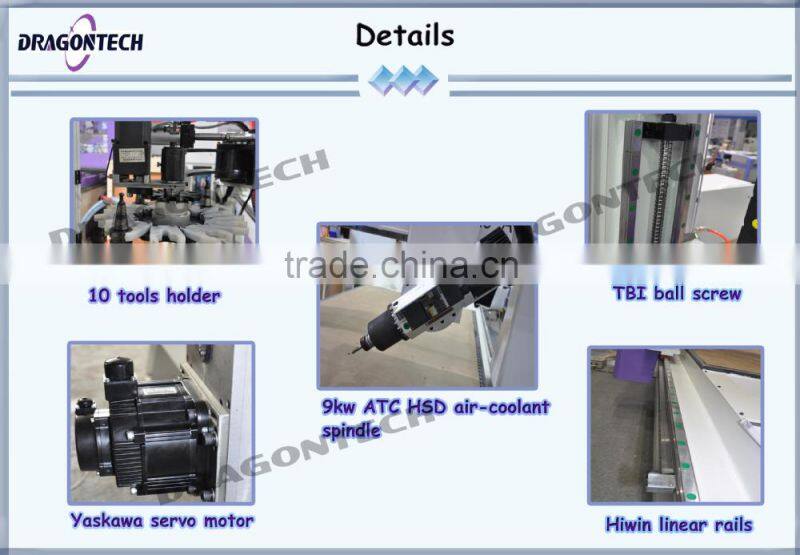

We cooperate with famous suppliers, using top quality parts on the machine, such as Italy HSD spindle, HITECO spindle, Taiwan Delta inverter, Taiwan TBI high precision ball screw, Taiwan HIWIN linear rails, SYNTEC control system for 4 and 5 axis, Germany BECKER pumps, Japanese PANSONIC and YASKAWA servo motors and drivers, and so on, to keep the machine in the best condition evern after many years' working.
Parameter:
| No. | Description | DT4A1325 |
| 1 | X,Y,Z working size | 1300*2500*400*180 degree |
| 2 | Working table | Vacuum and T-slot Combined |
| 3 | Gantry | Steel gantry |
| 4 | Driving system | Yaskawa servo system |
| 5 | Transmission system | Helical rack pinion, ball screw for Z;HIWIN linear rails |
| 6 | Max. Working speed | 30000mm/min |
| 7 | Max. Travelling speed | 40000mm/min |
| 8 | Spindle | 3/4.5/6kw HSD air-cooling spindle |
| 9 | Spindle speed | 0-18000RPM |
| 10 | 4th swevilling axis in spindle | ±90 degree |
| 11 | Control system | Syntec system |
| 12 | Software | UG, Powermill |
| 13 | Repositioning accuracy | ±0.03mm |
Applications:
Dragontech CNC Router DT4A1325 is suitable for hard wood-working, cutting and engraving on rosewood for furniture, indoor decoration, MDF and so on, with high speed and high precision.
Options:
Driving system: Panasonic/Yaskawa servo system
Spindle: HSD/Colombo, Chinese GS/GDZ/HQD spindle
Inverter: Delta inverter, Fuling inverter
Control system: Syntec/DSP/Weihong
Vacuum pump: Germany vacuum pump, Chinese vacuum pump
Can equipe rotating axis, lubricating system, mist cooling system and so on.
Jinan DragonTech Co. is a professional CNC Router manufacturer which focuses on producing high quality precision machines. Our company’s mission is to produce best machines and supply best services for our customers.
Our main products include DT series of CNC Routers for woodworking, advertising, stone engraving, mould making, metal cutting and the DT series of Plasma cutting machines. We also produce customized machines for our customers with special requirements.
We put the customers first and high quality is our obligation. Welcome to Visit our factory!
Contact information:
Skype: elaine.ling
Mobile: 8618605313198
QQ: 9164582
Trademanager: cn1510725215
Company Profile
Our company is a professional CNC Router manufacturer, which focuses on the design and production of high-quality precise carving machines.Our main products are DT series CNC Routers for woodworking, advertising, marble, metal and plasma. We also produce special machines according to customers' requirements. We supply the different options for machines, for example HSD, COLOMBO and GS spindles, DSP, MACH3 and SYNTEC control systems, BECKER and Chinese vacuum pumps, PANASONIC and YASKAWA servo systems, Rotaries, and so on.We have a professional sales team and engineer team with more than 10 years' experience. Therefore, we can supply good training and services to customers perfectly. High quality machines and good services have earned us a good reputation in world markets. We hope to establish long-term business relationships with all customers and enjoy the benefits together.
