Product Details
Place of Origin | Guangdong, China | Brand Name | WAWEIS | |
Model Number | WAAS06 | Usage | Laptop | |
Output Type | DC | Connection | Plug In |
Product Description

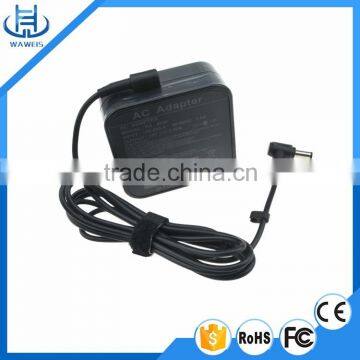

OVP OCP SCP 65W 19V 3.42A laptop adapter charger for ASUS
Model No | WAAS06 |
AC Input | |
Nominal Input Voltage | AC 100V~240V (+-15%), 1.5A Max |
Input Frequency | 50/60Hz |
DC Output | |
Output Voltage | 19V |
Output Current | 3.42A |
Output Power | 90W |
DC Tip | 5.5*2.5mm |
Line Regulation | 2% |
Load Regulation | 5% |
Ripple Noise | 180 Mvp-p |
Efficiency | >85% |
Output Cable Standard | 0.5mm2 Pure Copper |
Output Cable Length | 1.5m normally or customized requirement |
Environment | |
Operating Temperature | 0°C ~40°C |
Operating Humidity | 5%~95%RH |
Storage Temperature | -20°C ~85°C |
Storage Humidity | 5%~95%RH |
Protection | |
Over Load Protection | Short Circuit Protection |
Over Current Protection | Over Temperature Protection |
Certificates | |
CE, ROHS, FCC,CCC,CB | |
Dimensions | |
Adapter Size | 7.5*7.5*3.1cm |
Adapter Weight | 175g |
Inner Box Size | 18.5*13*4.5cm |
Inner Box Weight | 50g |
PCS/CTN | 50pcs |
Outer Carton Size | 68.5*38*23.5cm |
Outer Carton Weight | 1500g |
Package | |
Inner Box | Normally neutral brown box or customized requirement |
Outer Carton | Normally neutral standard carton or customized requirement |
Warranty | |
Warranty | 2 years |
Terms and Conditions | |
MOQ | 50PCS for mixed order |
Payment Terms | T/T, L/C, western union, Alibaba online order |
Delivery Time | 3-5 days |
Manufacturing Process | |
1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
Test Procedures | |
1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test |
With 9 years experience in the filed, Shenzhen WAWEIS Technology Co., Ltd is one of the best power supply device manufacturer in China. Our world-class production plant passed ISO9001:2008 & ISO14001:2004 certifications and is equipped with the state-of-art technology and machines.
The main products we make are power adapters, which can be used in laptop, LCD display and LED lights(12v series), Speaker(24v series), Balance car(42v series). All our products comply with European environmental standard as well as RoHS ,UL, CE,FCC,KC,PSE,SAA.
At the same time, WAWEIS consumer electronic devices have got a wide range of safety approvals to meet specific international standards & requirements. We have dedicated teams of R&D(6 members), engineers(3 members)and quality control experts(3 members) focusing on products’ quality guarantee. Our strict quality assurance program ensures all our products to meet IEC Standards. In addition, the strong production capacities allow fast lead-time and guarantee fresh & premium products at competitive prices. Headquartered in Shenzhen, we are committed to providing immediate product support and excellent customer services.
Inner Package: Bubble bag and brown hard paper box.
Outer Package: 50pcs per carton or as customized.
Delivery Time: 3-5 days for samples order,6-10 days for regular order beyond 10000pcs
1, What kind of company we are?
We are professional power supply manufacturer with high reputation in this field.
2, How we control the quality?
Aging test for 8 hours, after then we put them into the market.
3, Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
4, What about the production capacity?
1-2 days for samples order under 10pcs, 7 days for general order under 10000pcs.
5, OEM and ODM are available?
Yes, we accept customized products
6, Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
7, What is our warranty service?
For all products we sell have 2 years warranty.
