Waterproof Plastic Injection Signs Advertising Led Module

FOB Price

US$ 0.2 - 2 / Piece

1 Piece(Min. Order)

Port Shenzhen Yantian
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model Number	SJ-3535-1W	Chip Material	Other, Epistar
Emitting Color	Other, Natural White, White	Luminous Intensity	7800
Luminous Flux(lm)	90-120lm	Optical Attenuation(%)	0.5
Power	Other, 1.2W	Color Rendering Index(Ra)	85
Color Temperature	6500	Operating Temperature(℃)	-25, 60
Storage Temperature(℃)	-30, 60	Place of Origin	Guangdong, China
Brand Name	SJ	Certification	CE

Product Description

Specifications

1.High brightness 1W module
2.1 piece smd 5050 led
3.CE&RoHS
4.Long life over 35,000 hours
5.2 years warranty

waterproof plastic injection signs advertising led module

Features:

1.Current dissipation:100mA(white and warm white)

2.Power consumption:1.2W (white and warm white)

3.Operating Voltage:12V

4.Quantity for maximum connection in serial:10 modules

5.Electronic dimming control supported

6.Constant voltage drive

7.Reserve voltage protection

Specification:

Model NO.	SJ-3535-1W
Power Consumption	1.2W
Operating Voltage	DC12V
Current dissipation	100mA
Beam Angle	≥120
LED Quantity	1pcs SMD5050 Epistar
Color	White
Dimension	35mm(L)35mm(W)6mm(H)
Waterproof Grade	IP65
Work Temperature	-25-60°C
Life-span	50,000hrs
Certificate	CE&RoHS
Warranty	2years

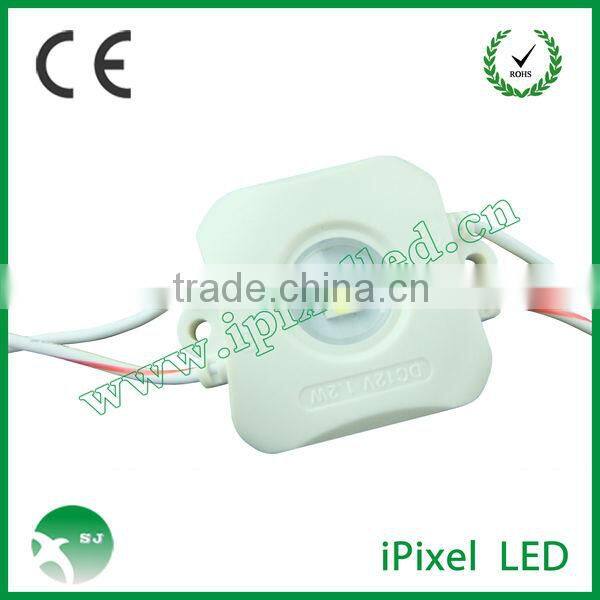

Product Images:

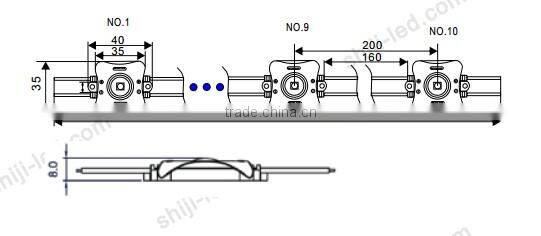

Outline Dimension:(mm)

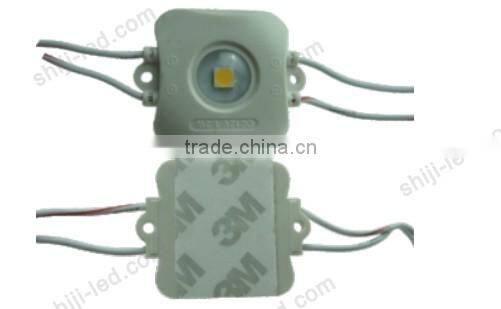

Picture with 3M adhesive back:

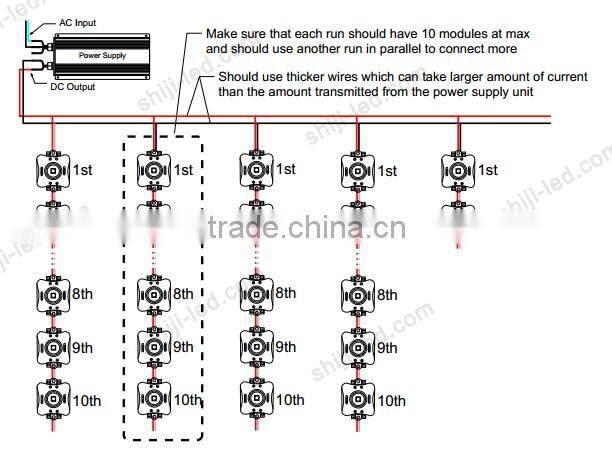

Connection Guide:

Safety Features:

1.ESD protection:Industry standard electro-static discharge protection

2.IP65:Prevents water and dust penetration,operative under water

3.Reverse voltage protection:Device will prevent incoming power source on improper input connection

Applications:

1.Channel letters

2.Reverse halo lighting

3.Border lighting

4.Point-of-purchasing signage

5.Art and sculpture cove lighting

6.Replacement for conventional lighting system

Service

1.Reply your inquiry in 24 hours

2.Experienced staffs answer all your questions in fluent English

3.Customized design is available.OEM&ODM are welcome

4.Exclusive and unique solution can be provided to our customer by our well trained and professional technicians

5.Special discount and protection of sales area provided to our distributor

Shipment:

1.Goods will be delivered within 3-5 working days after the payment received

2.We ship item via Door to Door service express or air and sea

Warranty:

1.All products we sell are in good quality and under examination before they are shipped out

2.We offer 2 years Warranty
